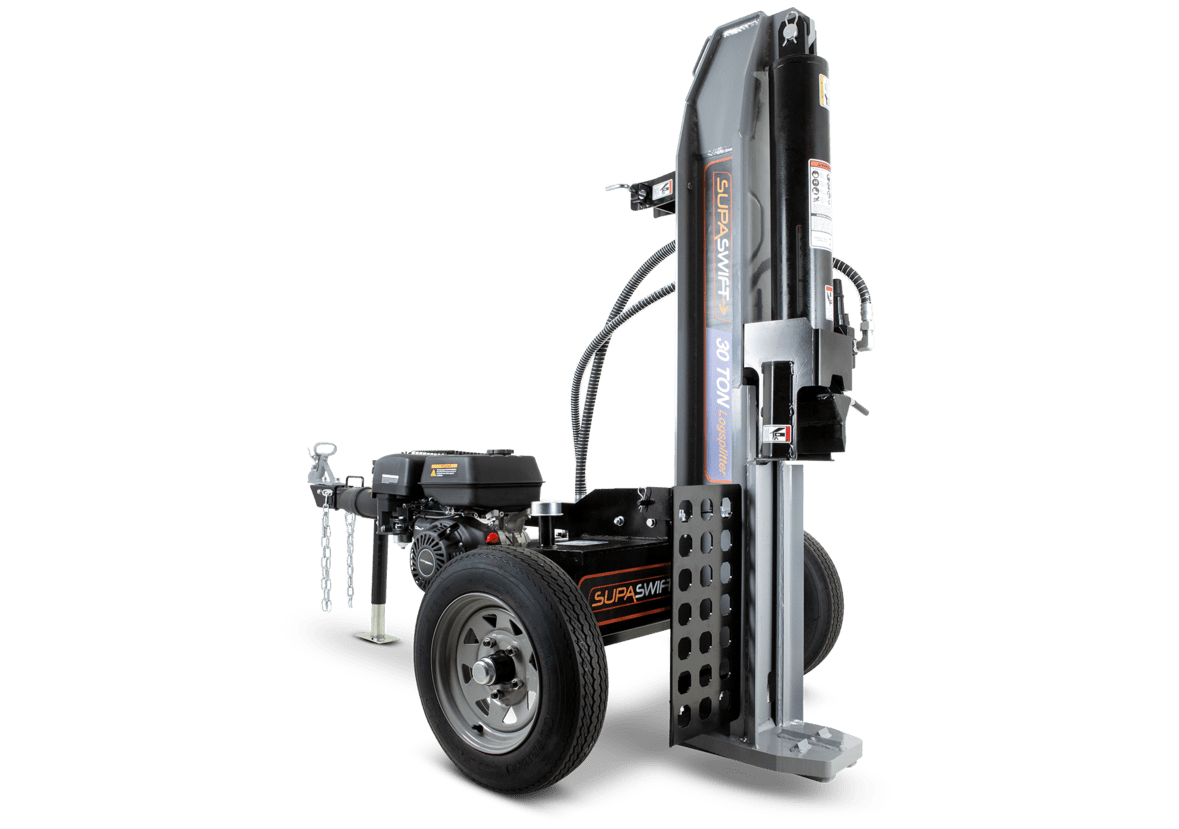

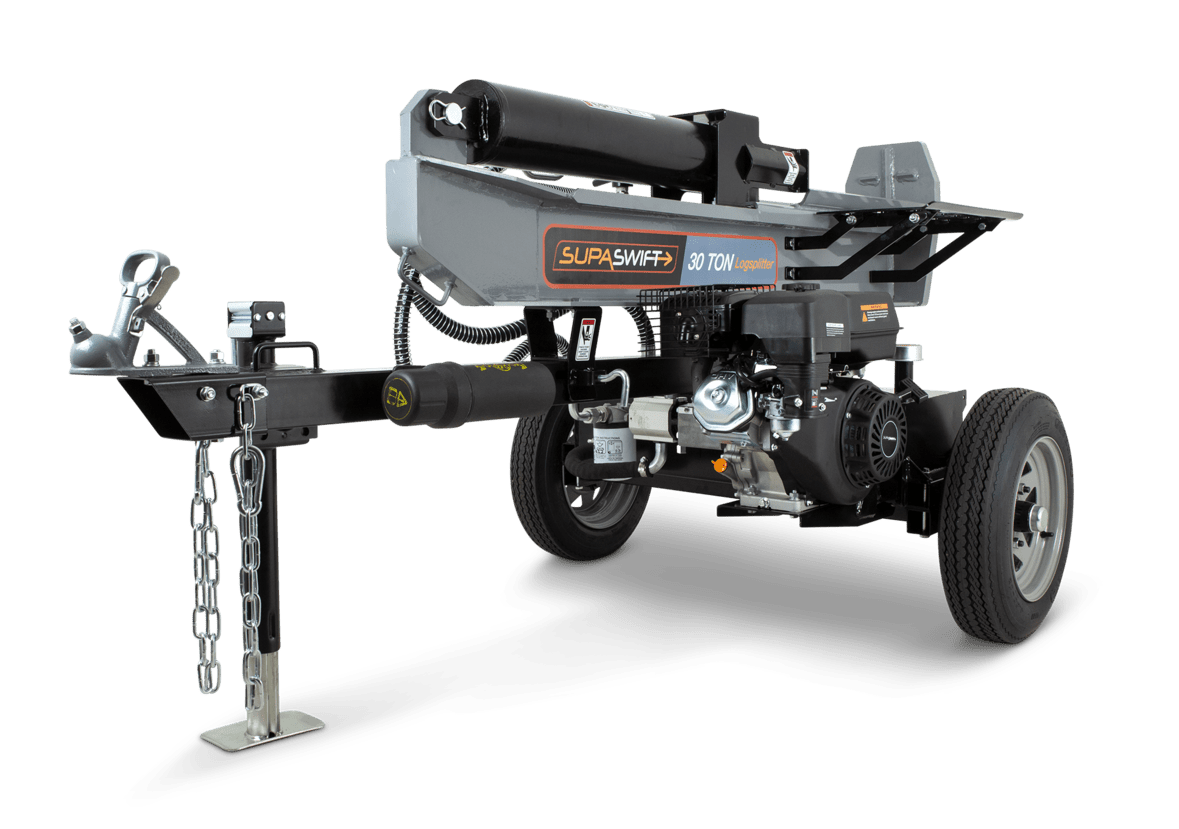

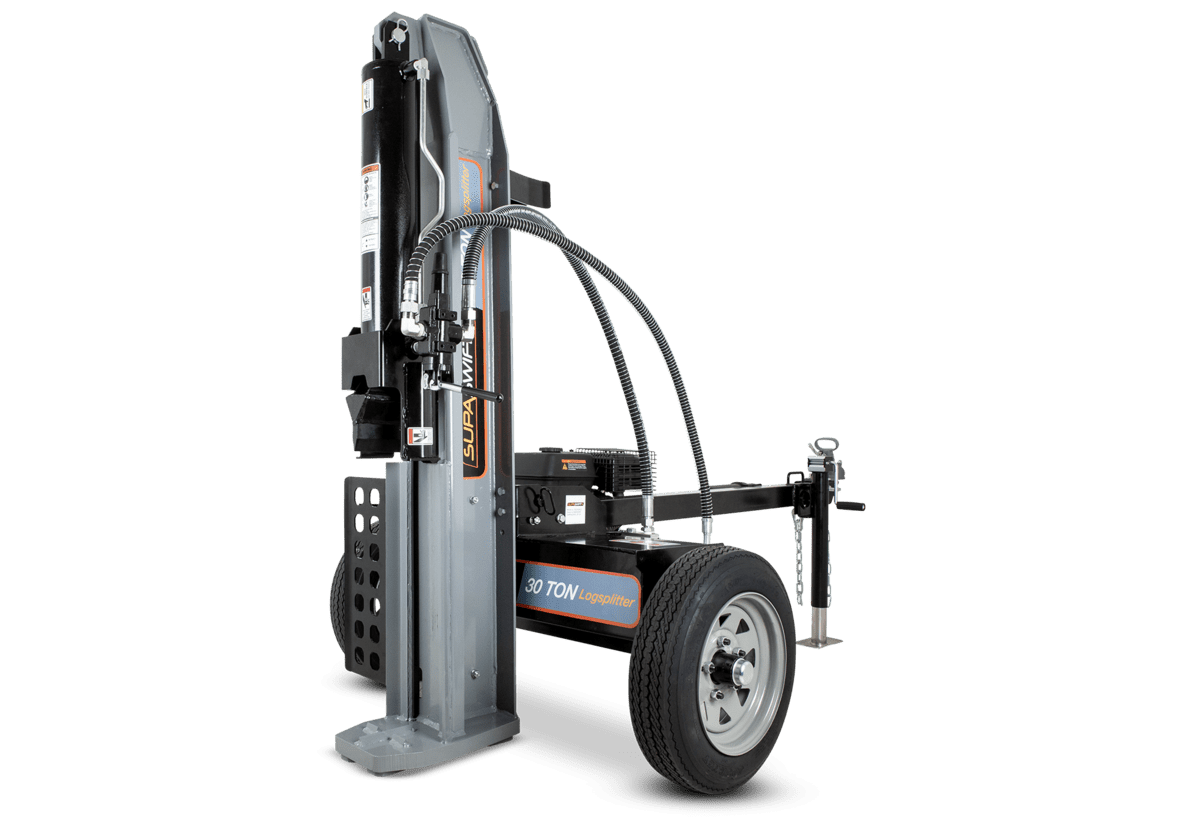

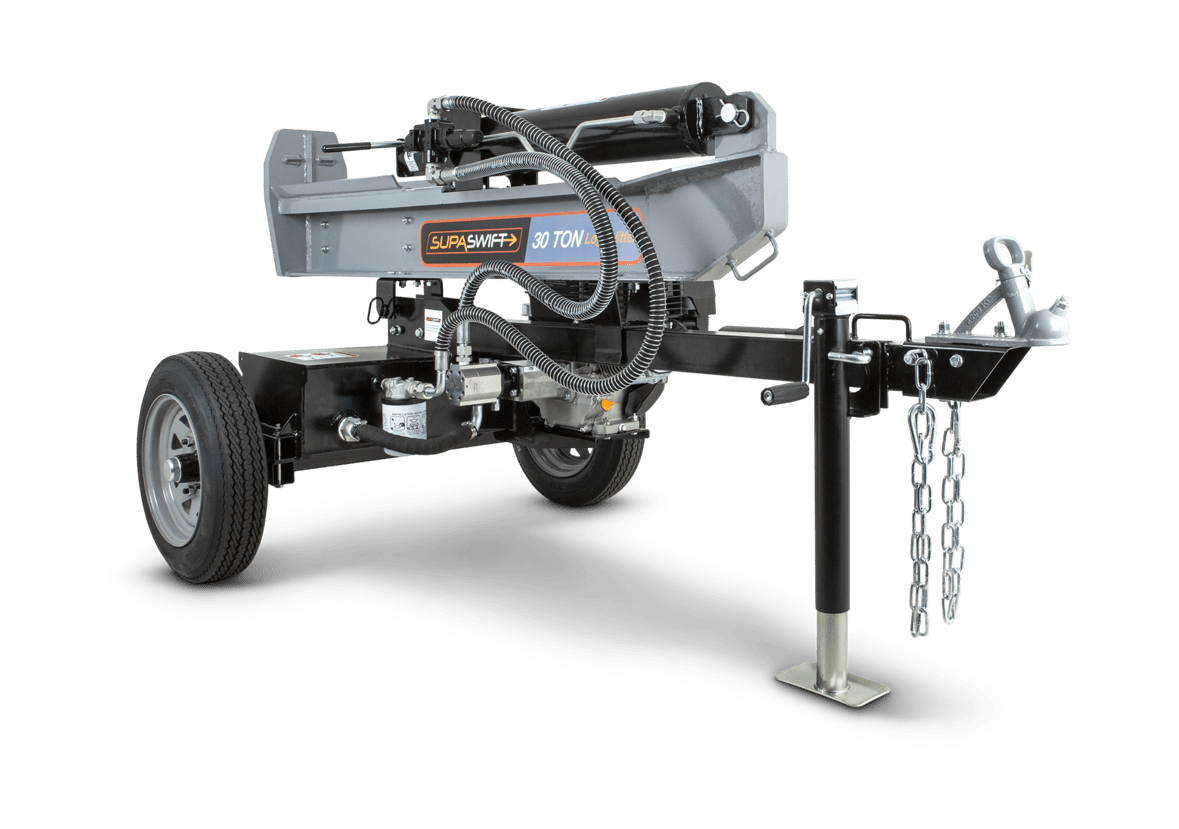

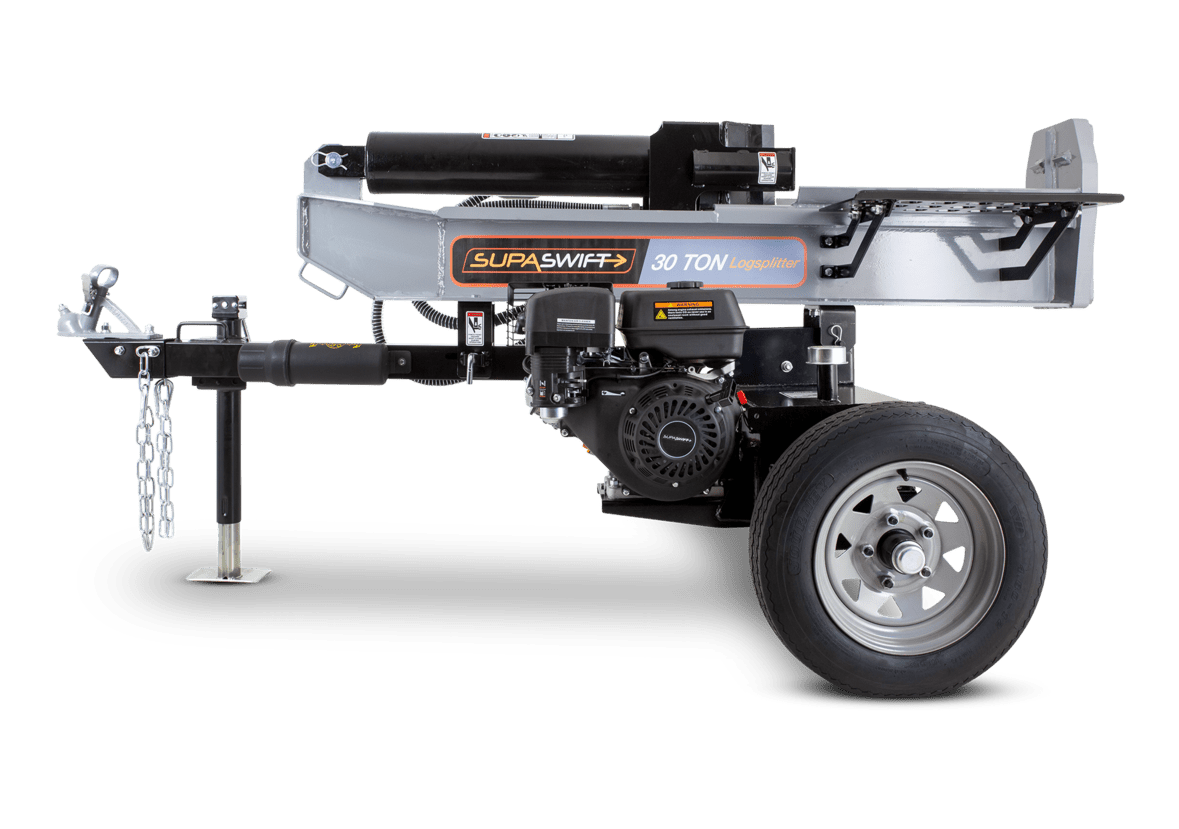

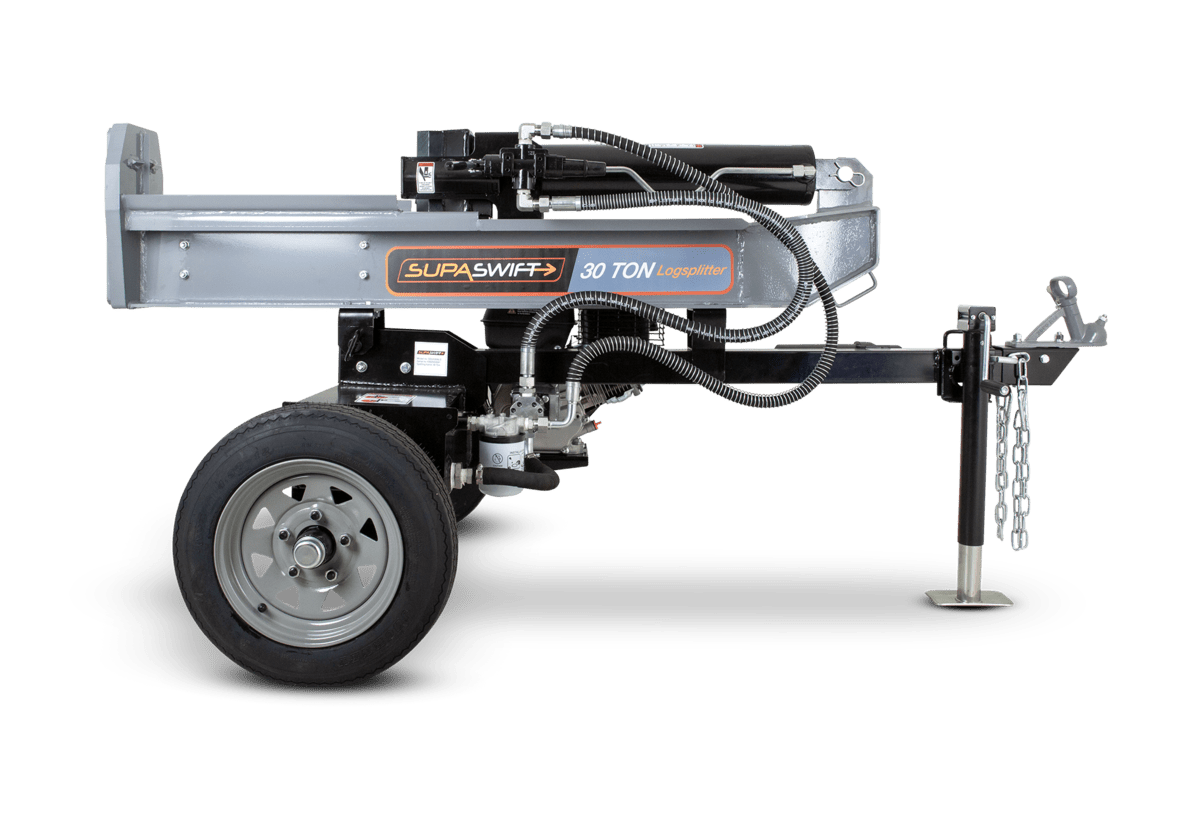

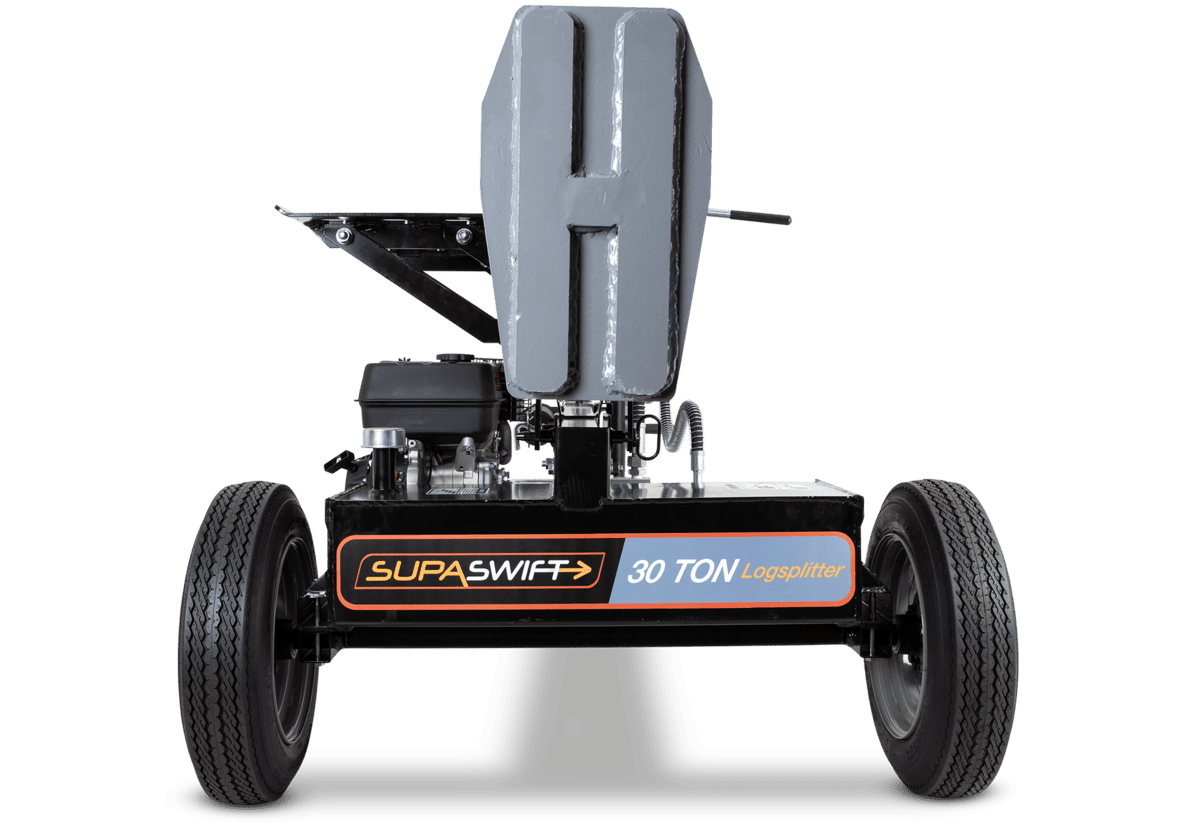

The SupaSwift 530ALS 30-Ton Log Splitter is engineered for serious landowners and professionals who demand maximum power and durability. Featuring a Loncin G270F 9.5 hp engine, a 12.9-second cycle time, and a two-stage 15 GPM pump, it offers horizontal and vertical operation with a 9" heat-treated steel wedge. Built for tough Australian conditions, it includes ergonomic controls, a 50 L hydraulic system, and D.O.T-certified trailer wheels.
Features
Loncin G270F OHV 270 cc petrol engine (9.5 hp)
Horizontal and vertical operating positions
30 tons of splitting force
Manually activated auto-return valve with adjustable detent
Two-stage pump: 15 GPM (56.78 L/min)
Ergonomic valve placement for operator comfort
9" (228.6 mm) high angled heat-treated steel wedge
12" x 4.80" D.O.T-certified multi-lug trailer wheels
2" (50 mm) ball hitch with safety chains
50 L hydraulic system capacity
12.9-second cycle time
Specifications
Category
Specification
Product Code
SSU530ALS
Engine Type
Single-cylinder OHV, horizontal shaft petrol
Engine Model
Loncin G270F
Engine Capacity
270 cc
Operating Position
Horizontal or vertical
Splitting Force
30 Tons
Cycle Time
12.9 seconds (down and back)
Pump Type
Two-stage, 15 GPM (56.78 L/min)
Hydraulic Tank
50 L (system capacity)
Max Log Length
635 mm (25")
Cylinder Size
139.7 mm OD × 609.6 mm stroke / 127 mm ID × 622.3 mm stroke
