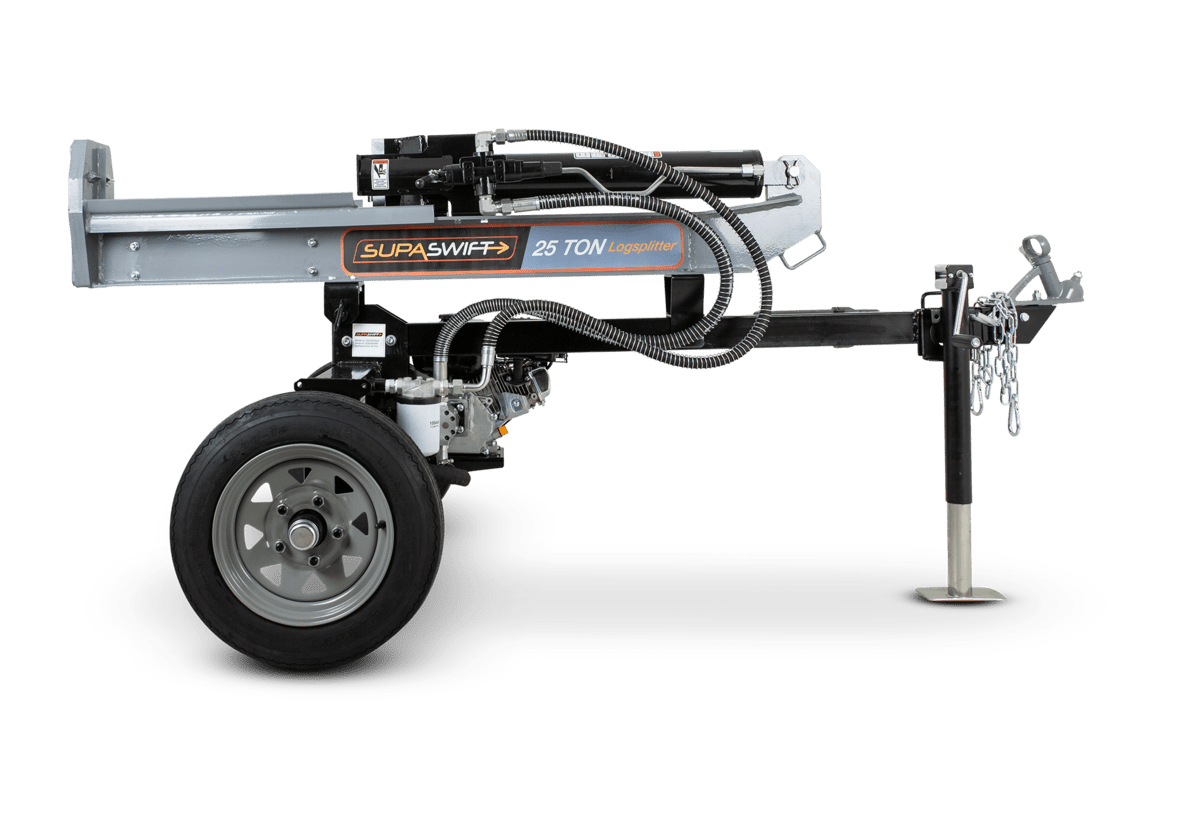

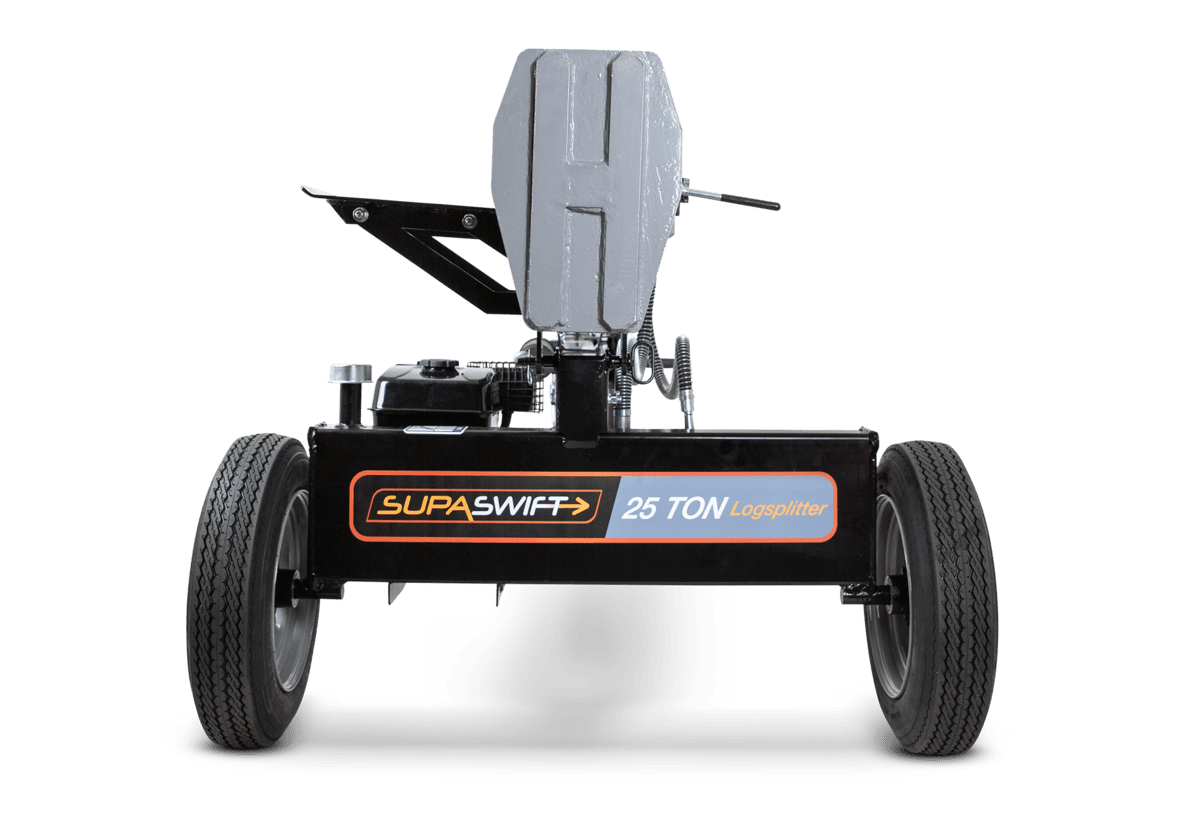

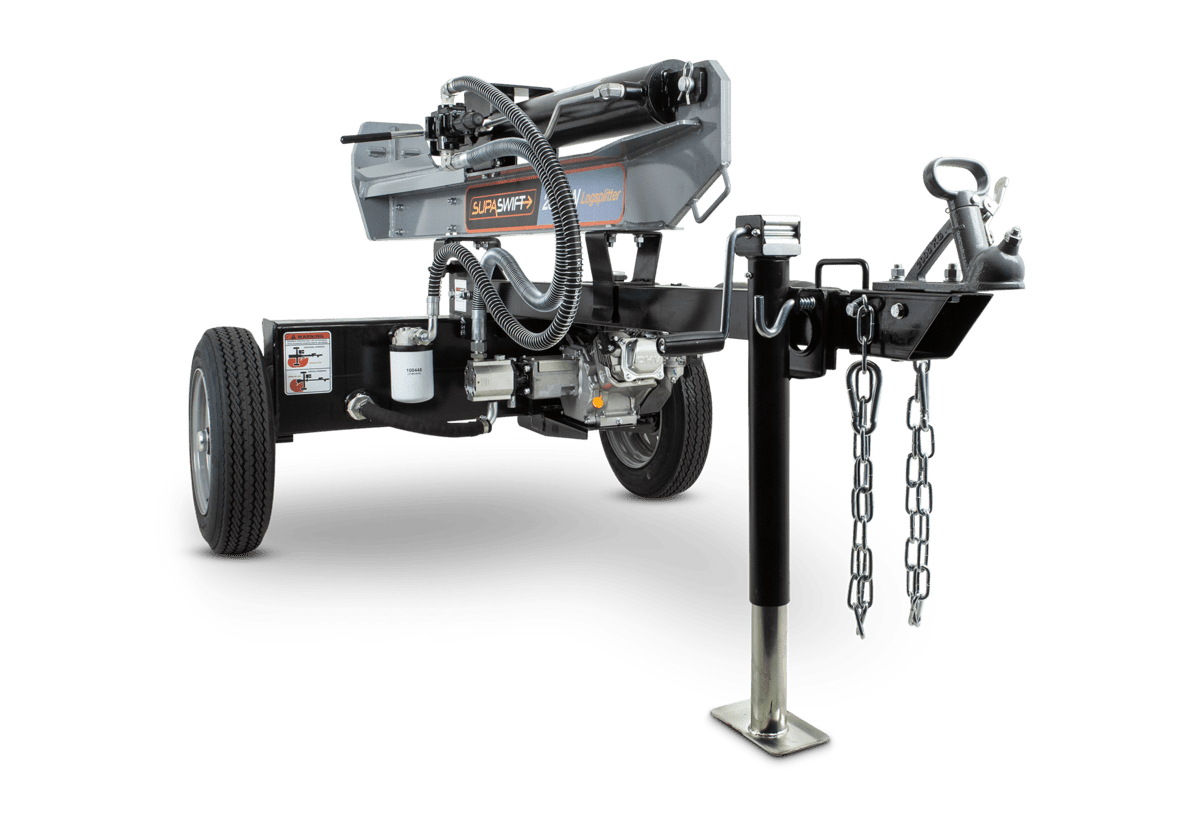

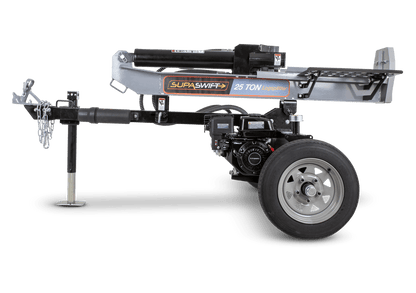

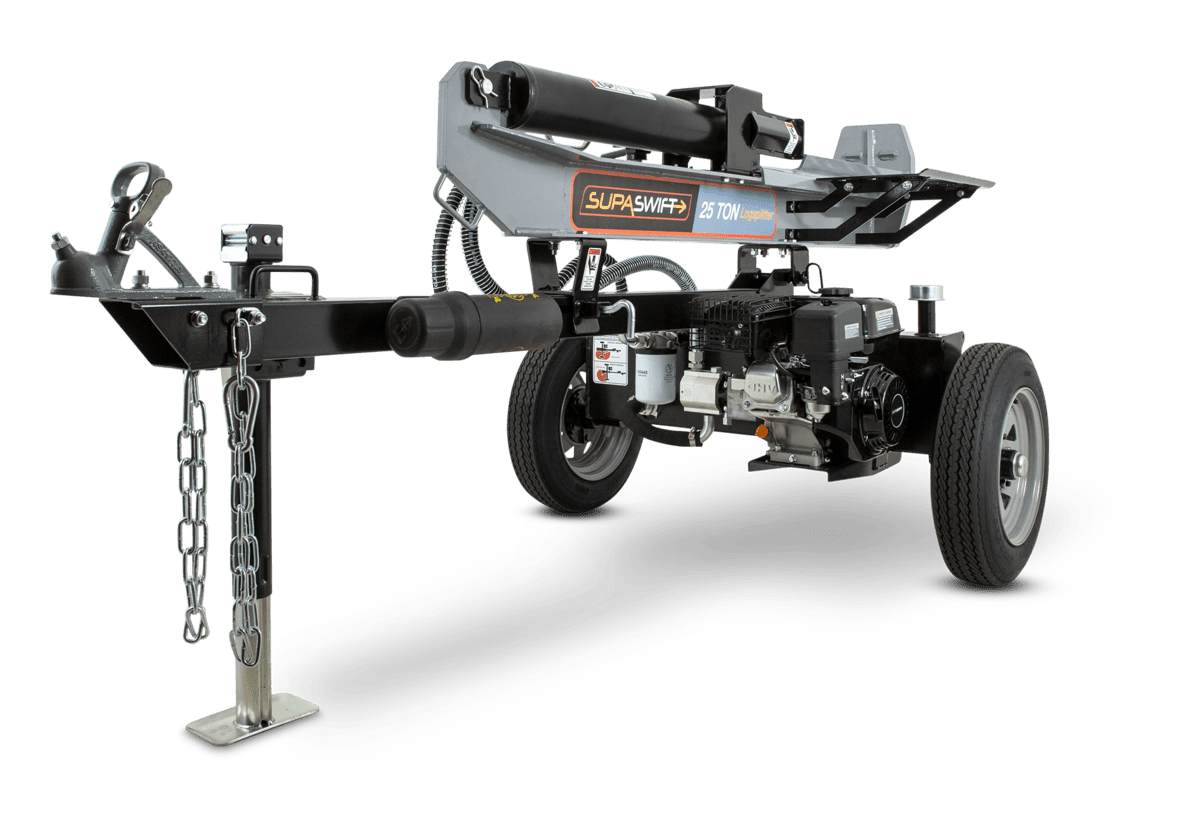

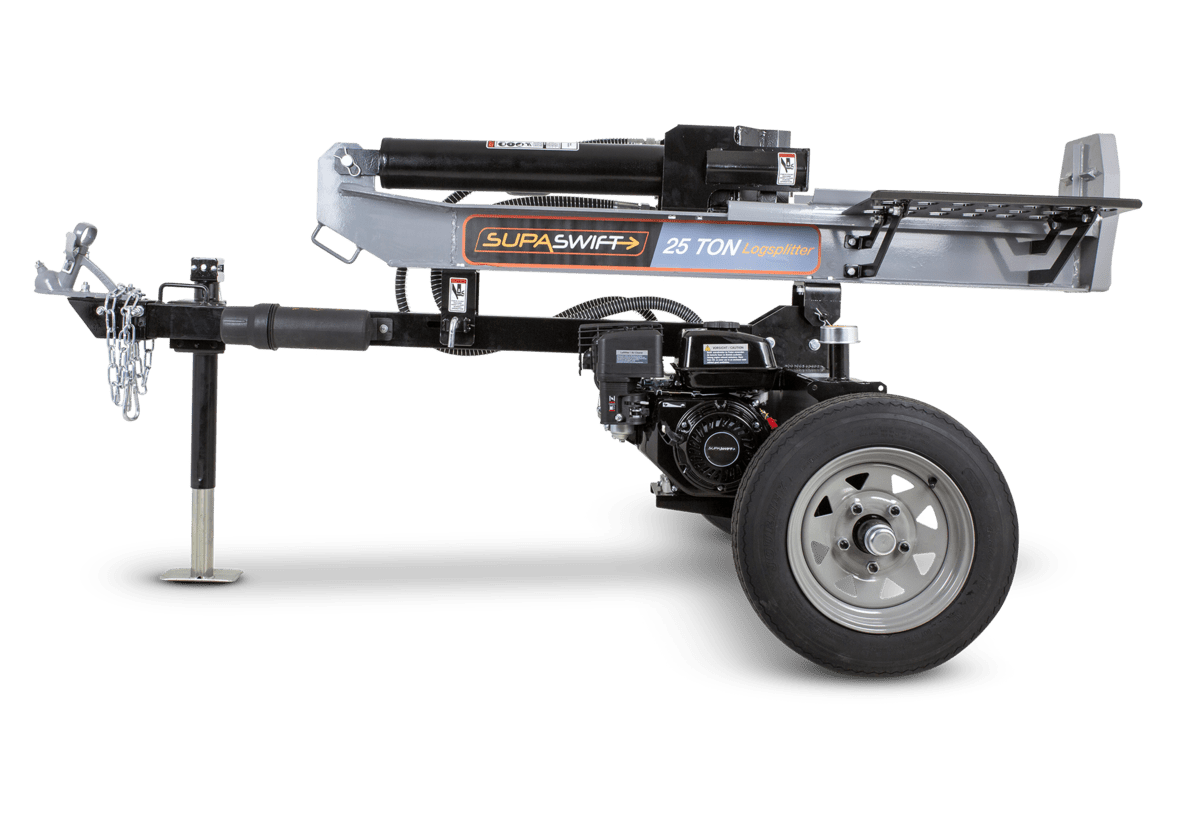

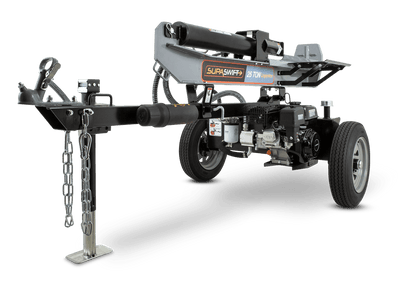

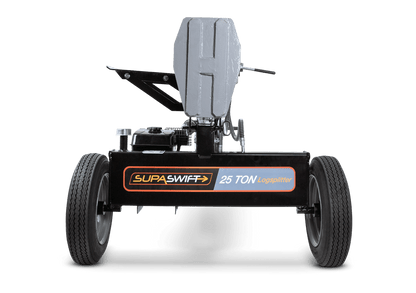

The SupaSwift 525ALS 25-Ton Log Splitter delivers powerful performance and long-term reliability for landowners and professionals. Equipped with a 6.5 hp SupaSwift OHV engine and a manually activated auto-return valve, it offers horizontal and vertical operation, a 10.9-second cycle time, and a two-stage 13 GPM pump. Built for tough Australian conditions, it features a heat-treated steel wedge, ergonomic controls, and D.O.T-certified trailer wheels.
Features
SupaSwift 6.5 hp (196 cc) OHV petrol engine

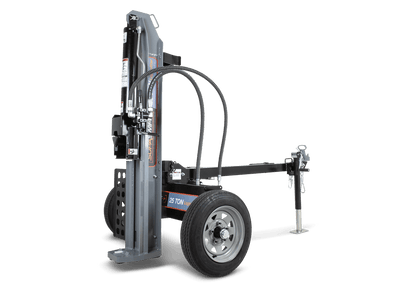

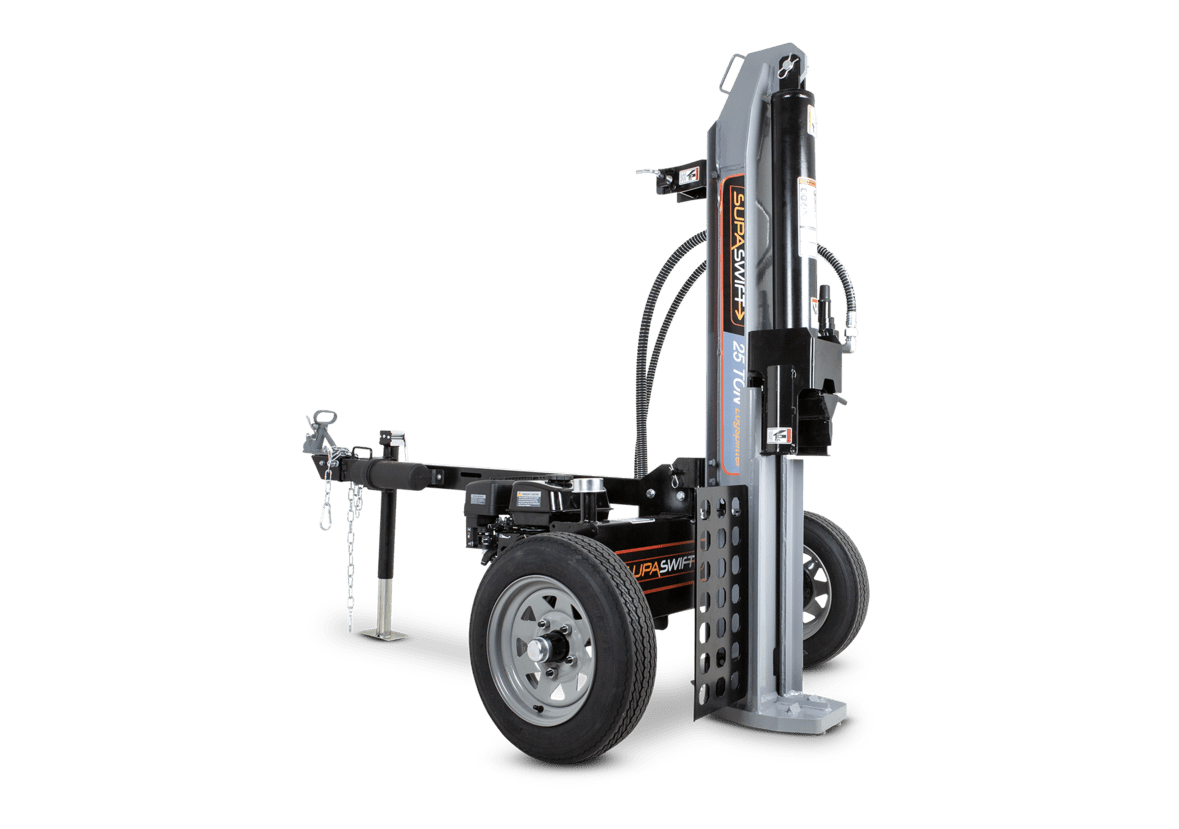

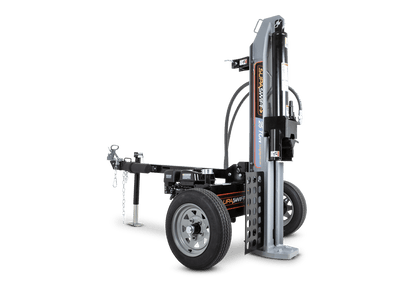

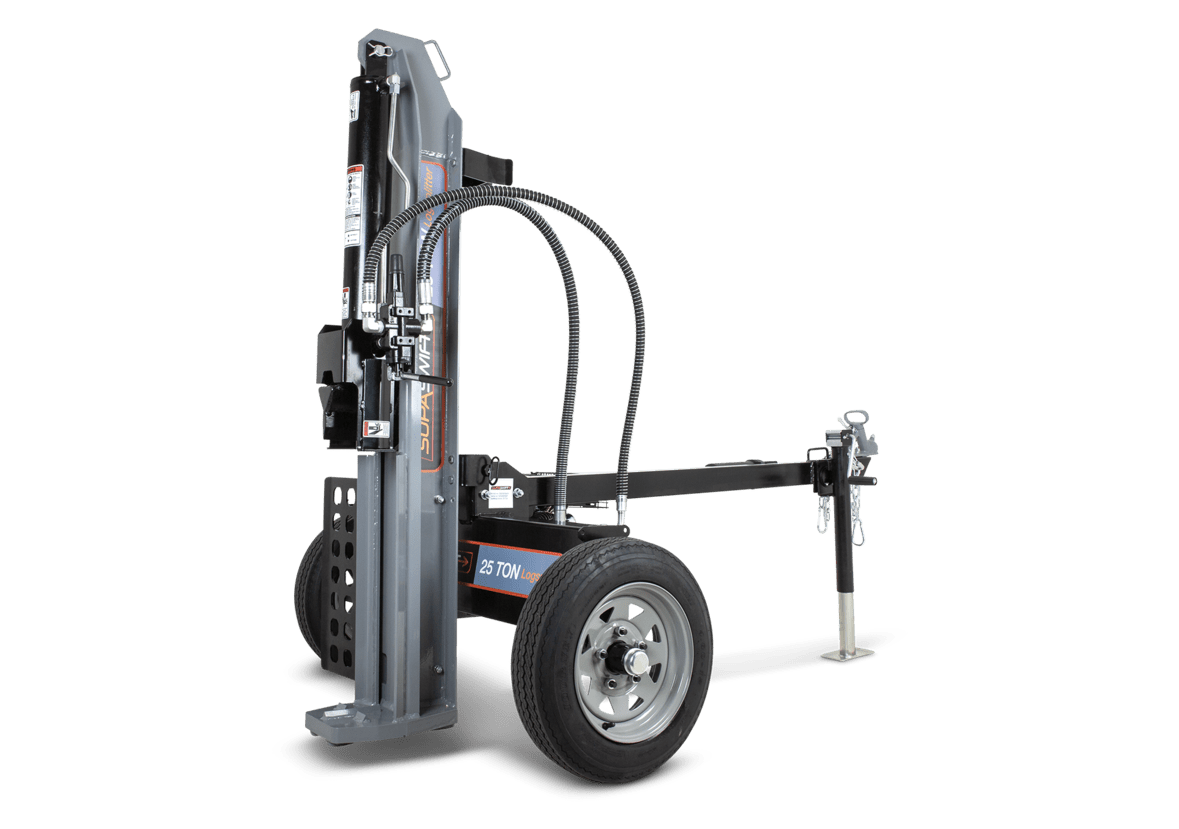

Horizontal and vertical operating positions
25 tons of splitting force
Manually activated auto-return valve with adjustable detent
Two-stage pump: 13 GPM (49.21 L/min)
Ergonomic valve placement for operator comfort
8.5" (215.9 mm) high angled heat-treated steel wedge
12" x 4.80" D.O.T-certified multi-lug trailer wheels
2" (50 mm) ball hitch with safety chains
25.5 L hydraulic tank capacity
10.9-second cycle time
Specifications
Category
Specification
Product Code
SSU525ALS
Engine Type
Single-cylinder OHV, horizontal shaft petrol
Engine Model
SupaSwift 6.5 hp (196 cc)
Operating Position
Horizontal or vertical
Splitting Force
25 Tons
Cycle Time
10.9 seconds (down and back)
Pump Type
Two-stage, 13 GPM (49.21 L/min)
Hydraulic Tank
25.5 L
Max Log Length
635 mm (25")
Cylinder Size
114.3 mm OD × 609.6 mm stroke / 101.6 mm ID × 622.3 mm stroke
