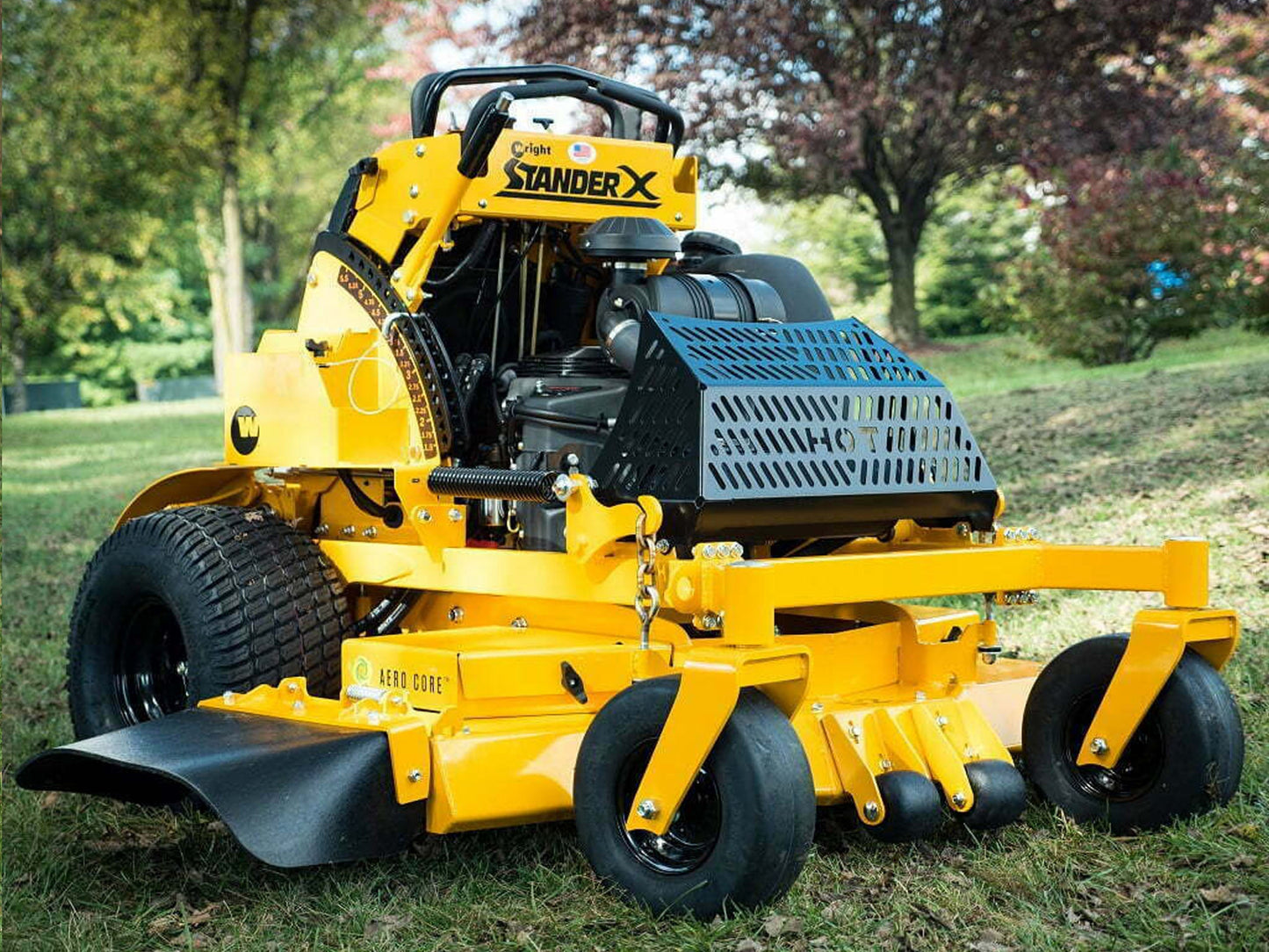

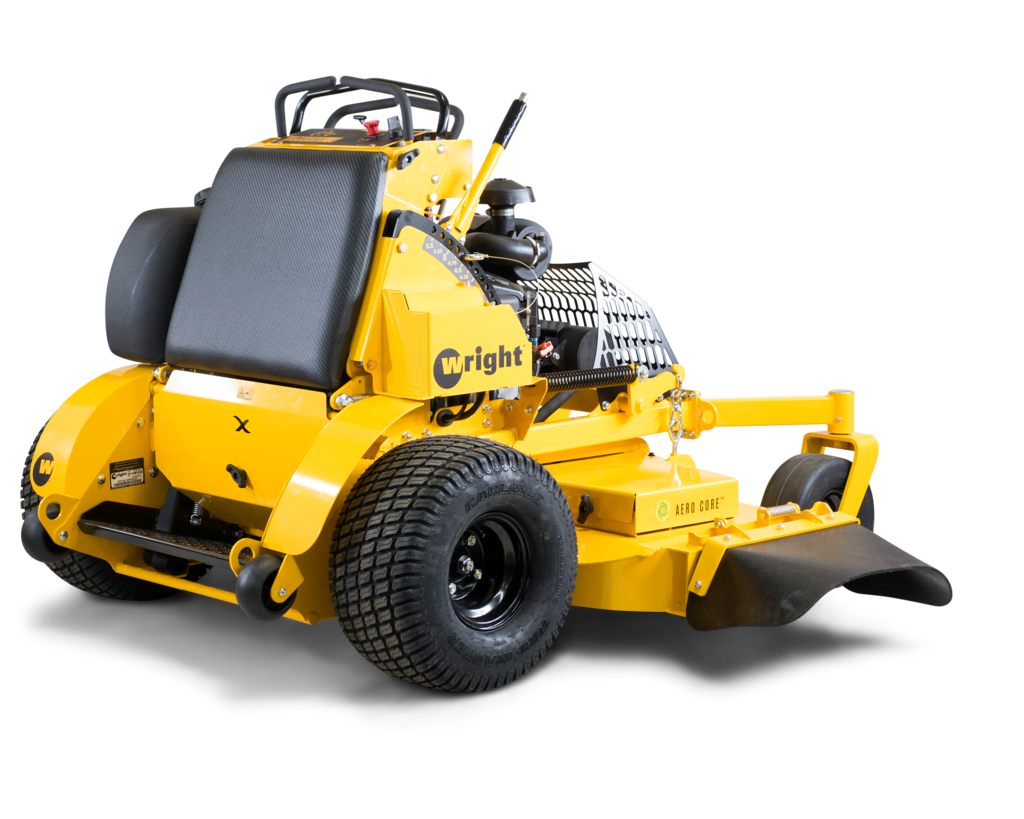

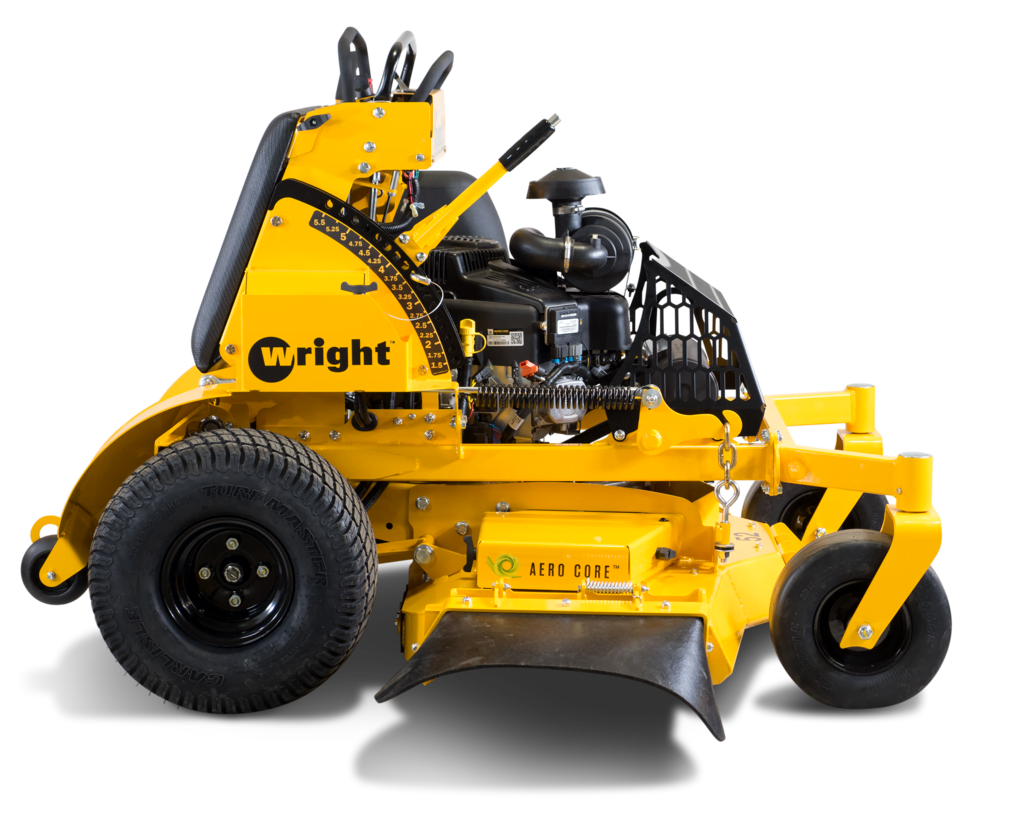

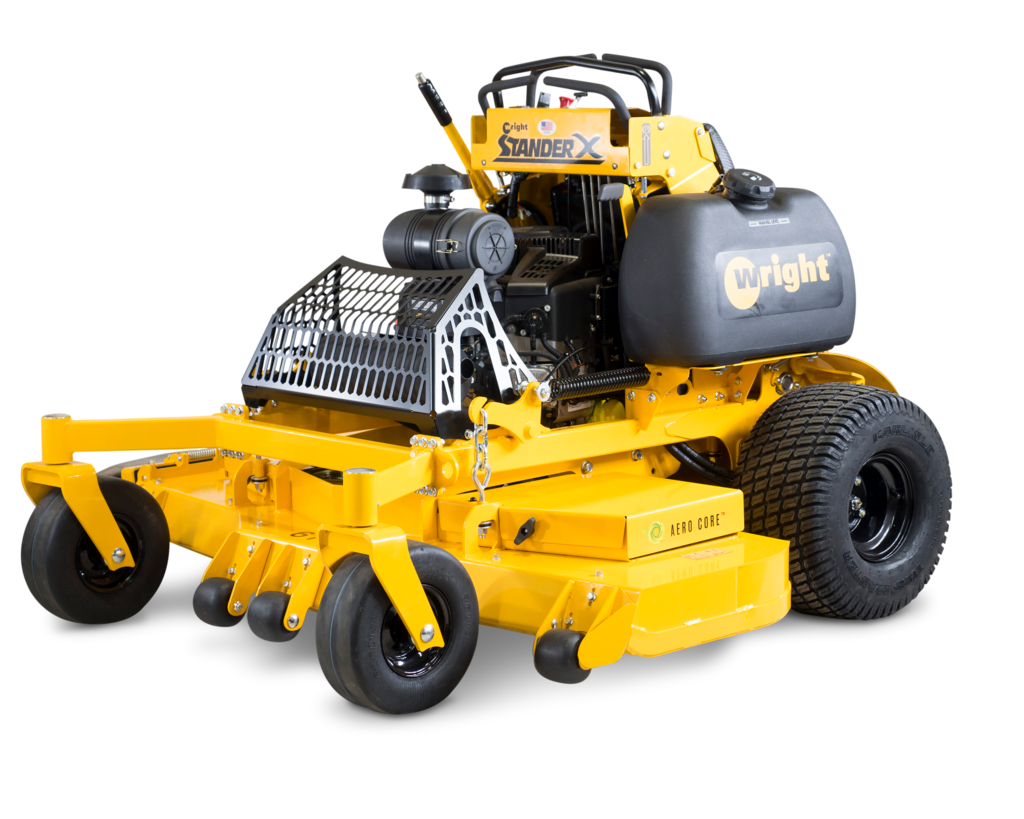

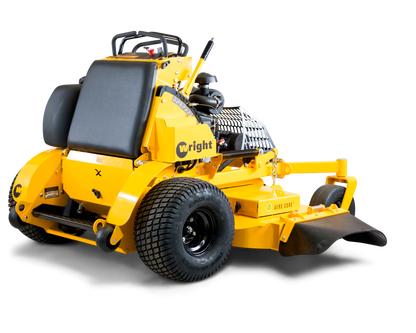

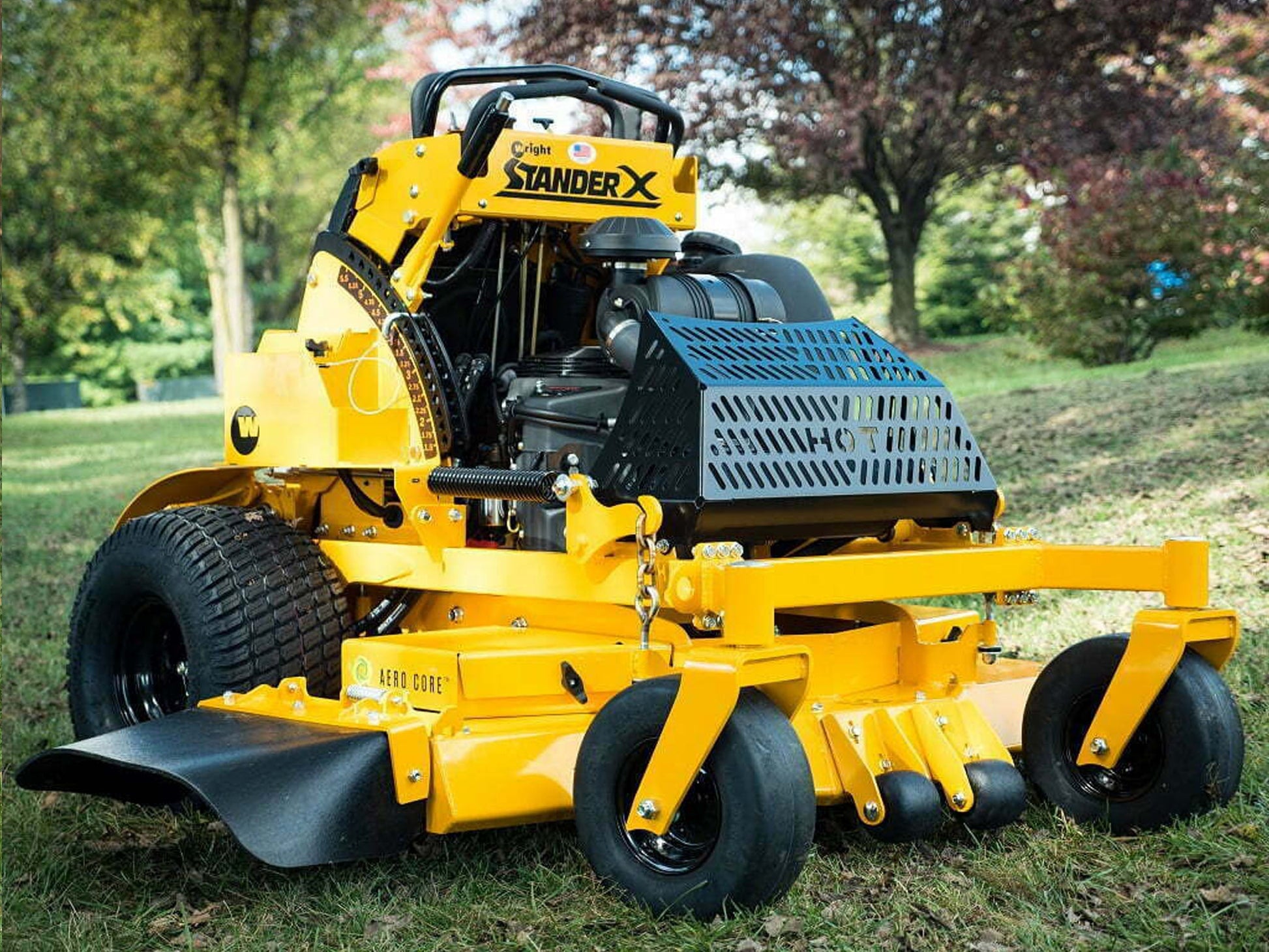

Wright Stander X 23.5hp 48" Stand-On Mower SKU: CWSTX48
Product Overview
The Wright Stander X Gen2 is engineered for high-performance commercial mowing with a focus on operator comfort and durability. Its progressive platform suspension and quad-level ball bearing controls deliver smooth, responsive handling. Powered by a Kawasaki FX730V engine and Parker 16 CU IN drive motors, it offers reliable productivity with minimal downtime. The Aero Core floating deck and Quick-Cut lift system ensure precision and efficiency across varied terrain.
Features
- Cutting Height 1.5" – 5.5"
- 28HP EFI 52" & 61" Options Available
- Split Steel Pulleys
- Hydro-Gear 12cc Wheel Pump Motors
- Cutting Decks Available in 48", 51", and 61"
Specs
| Attribute | Value |
|---|---|
| Category | Stand On |
| Family | Stander X |
| Class | Heavy Duty |
| Generation | Gen 2 |
| Operator Control Type | Quad-Level Ball Bearing |
| Hour Meter | Digital |
| Engine Vendor | Kawasaki |
| Engine Model | FX730V |
| Start Type | Electric |
| Horsepower | 23.5 HP |
| Forward Speed | 9.5 MPH |
| Reverse Speed | 5.5 MPH |
| Fuel Capacity | 8 GAL |
| Max Acres Per Hour | 4.6 |
| Drive Motor | Parker 16 CU IN |
| Pump | Hydro-Gear 12cc With Fans |
| Deck Size | 48 IN |
| Deck Type | Floating – Side Discharge |
| Configuration | Aero Core |
| Lift System | Quick-Cut |
| Blade Quantity | 3 |
| Blade Length | 16.5 IN |
| Deck Min Cut Height | 1.5 IN |
| Deck Max Cut Height | 5.5 IN |
| Steel Gauge | 7 Gauge |
| Spindle Type | Ductile Iron |
| Weight | 900 LB |
| Length | 65 IN |
| Width Deflector Down | 62 IN |
| Width Deflector Up | 49 IN |
| Caster Rim Diameter | 6 IN |
| Caster Tire Diameter | 13 IN |
| Caster Tire Width | 5 IN |
| Rear Rim Diameter | 8 IN |
| Rear Tire Diameter | 20 IN |
| Rear Tire Width | 10 IN |
