Cox 750cc Vertical - Fuel Injection / V-Twin / E-Start - CPV750-3EI/HDF

Cox 750cc Vertical - Fuel Injection / V-Twin / E-Start - CPV750-3EI/HDF

$2,376.51
$0.00 $2,376.51
Sale Sold out
Taxes included.

Not Stocked – Order In

Lead time: 2–14 business days

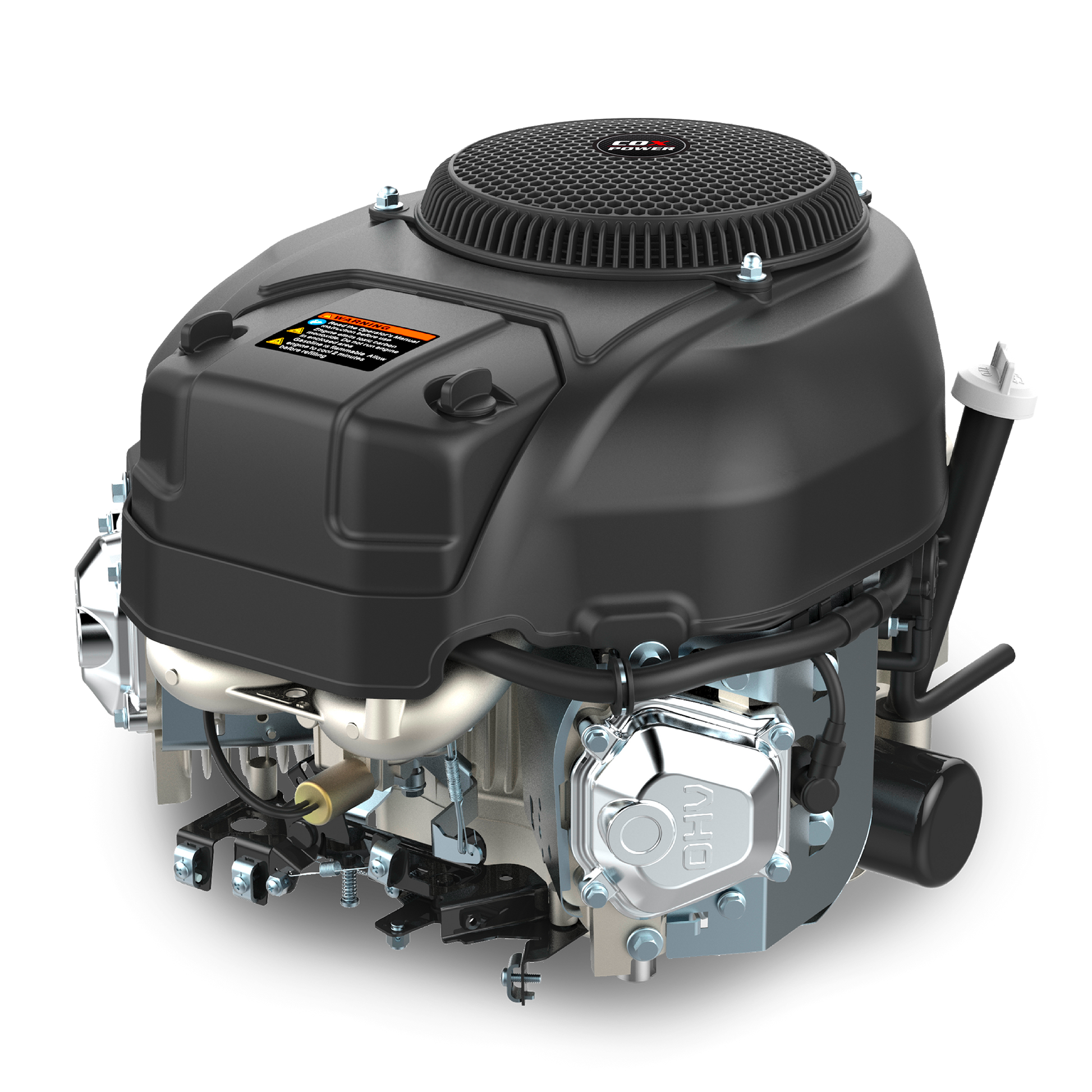

COX CPV750-3EI/HDF Vertical Shaft Engine – 25hp (EFI, Electric Start, Cyclonic Air Filter)

Overview The CPV750-3EI/HDF is a full-commercial grade 750cc V-Twin petrol engine designed for demanding vertical shaft applications. Featuring Electronic Fuel Injection (EFI), electric start, and a heavy-duty cyclonic air filter, it delivers 25hp and 52 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and Euro V certification ensure durability, efficiency, and compliance for commercial ride-on and zero-turn mowers.


Key Features

  • 25hp Rated Power at 3900 rpm
  • 750cc V-Twin Displacement
  • 52 Nm Max Torque
  • Electronic Fuel Injection (EFI)
  • 1" Vertical Keyway Shaft
  • Electric Start System
  • Heavy-Duty Cyclonic Air Filter
  • Engine Oil Capacity: 2.0 L (SAE 10W-30 recommended)
  • Engine Dimensions: 670 × 500 × 585 mm
  • Net Weight: 44.5 kg
  • Certifications: Euro V
  • Applications: commercial ride-on mowers, zero-turn mowers, vertical shaft machinery

Specifications

Attribute Detail
Model CPV750-3EI/HDF
Product Type Vertical Shaft Engine
Displacement 750 cc
Rated Power 25 hp
Rated Torque 52 Nm
Cylinder Bore x Stroke 82 × 71 mm
Max Output Speed 3900 rpm
Idle Speed 1750 ± 150 rpm
PTO Shaft Size 1" Vertical Keyway Shaft
Starting System Electric
Fuel System Electronic Fuel Injection (EFI)
Air Filter Type Cyclonic
Engine Oil Capacity 2.0 L
Recommended Oil SAE 10W-30
Specific Fuel Consumption ≤ 370 g/kW·h
Engine Dimensions (L×W×H) 670 × 500 × 585 mm
Net Weight 44.5 kg
Certifications Euro V
SKU CPV750-3EI/HDF
