Cox 750cc Vertical - V-Twin / E-Start - CPV750-1
Cox 750cc Vertical - V-Twin / E-Start - CPV750-1
Regular price
$1,919.48
Regular price
$0.00
Sale price
$1,919.48
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

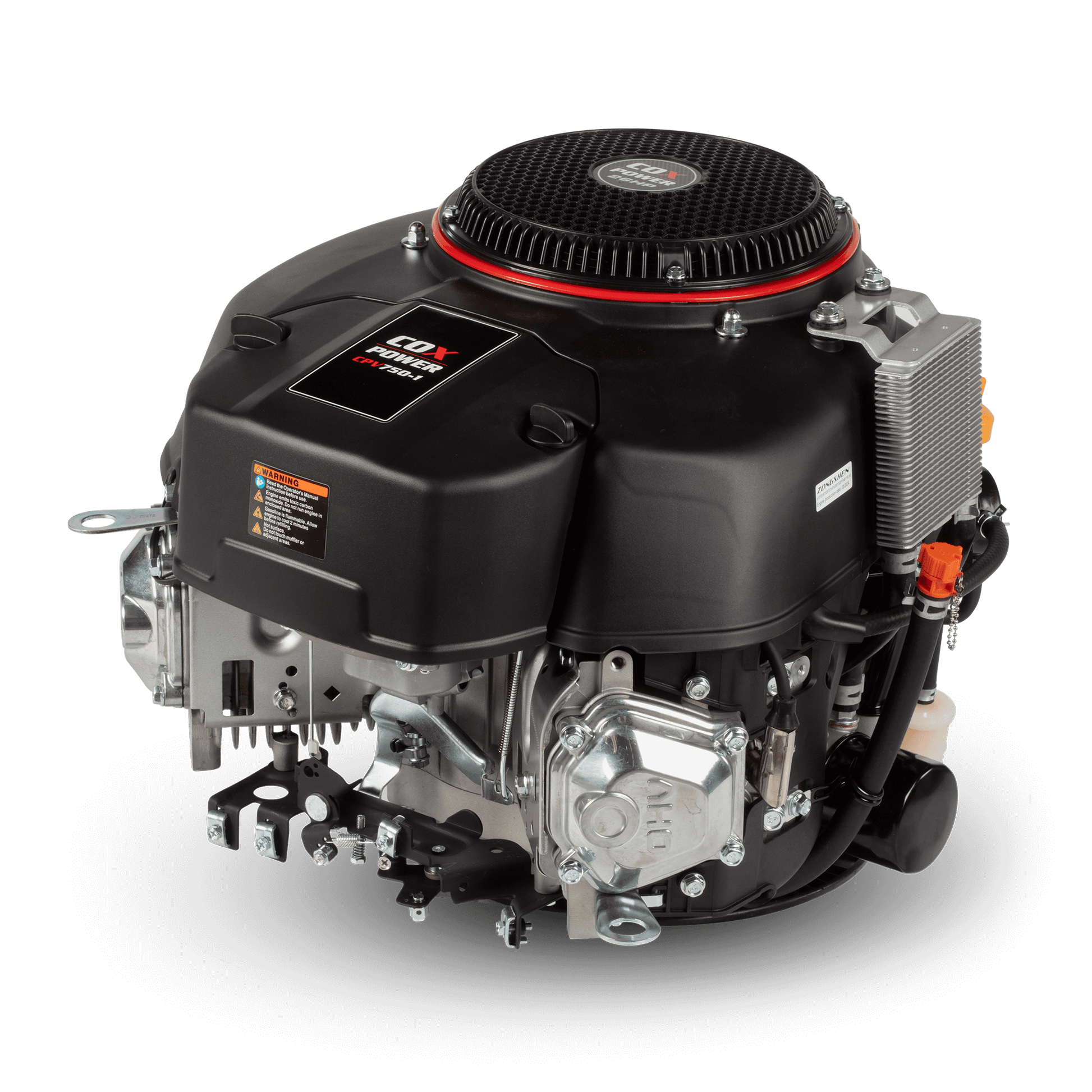

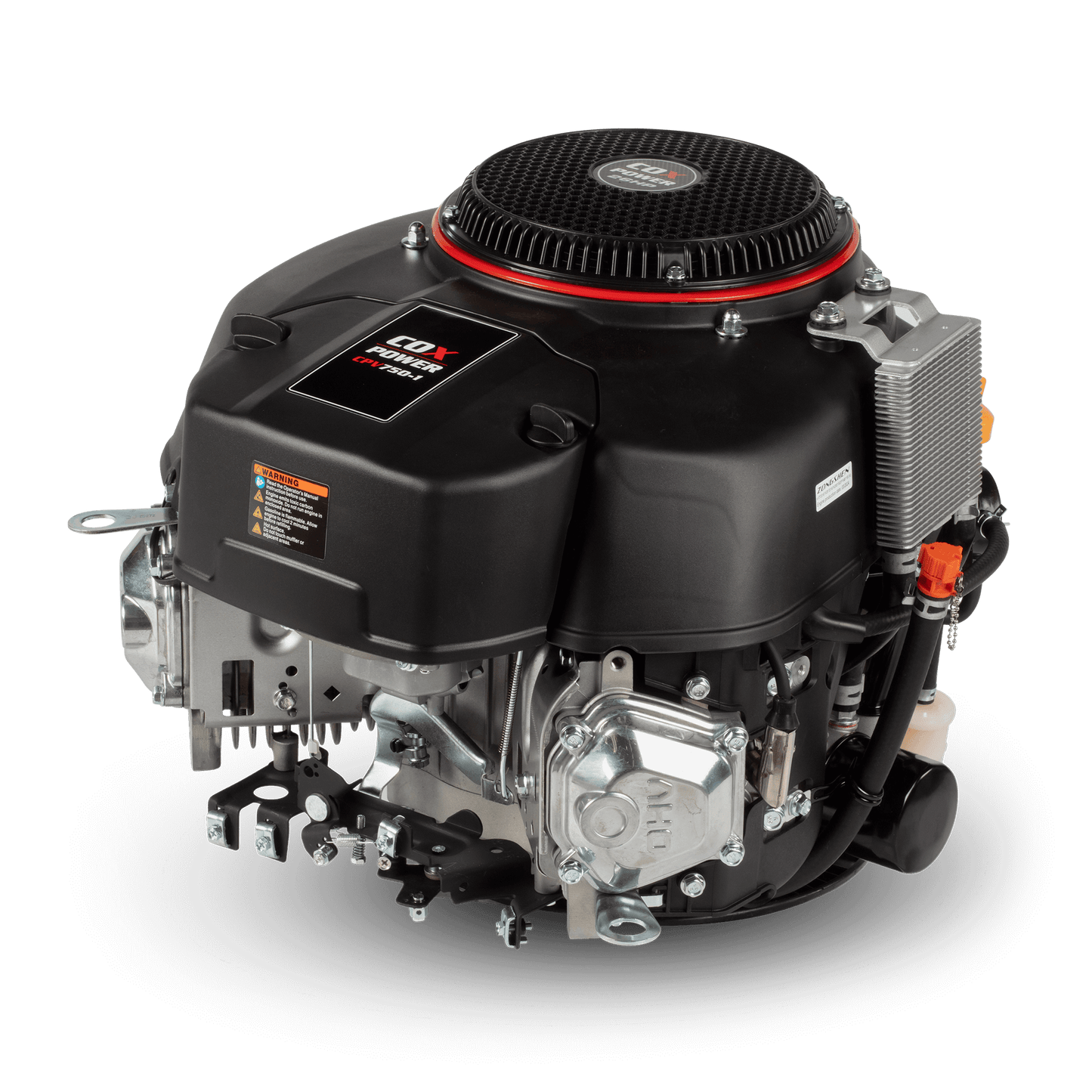

COX CPV750-1 Vertical Shaft Engine – 24.5hp (V-Twin, Electric Start)
Overview The CPV750-1 is a full-commercial grade 750cc V-Twin petrol engine designed for high-performance vertical shaft applications. With electric start and a 1" keyway shaft, it delivers 24.5hp and 51 Nm of torque. Its cast iron cylinder liner, 2L oil capacity, and compact dimensions make it ideal for commercial ride-on and zero-turn mowers.
Key Features
- 24.5hp Rated Power at 3900 rpm
- 750cc V-Twin Displacement
- 51 Nm Max Torque
- 1" Vertical Keyway Shaft
- Electric Start System
- Cast Iron Cylinder Liner
- Engine Oil Capacity: 2.0 L (SAE 10W-30 recommended)
- Engine Dimensions: 670 × 500 × 585 mm
- Net Weight: 44.5 kg
- Specific Fuel Consumption: ≤ 370 g/kW·h
- Certifications: CE, EC(V), EPA, CARB
- Applications: commercial ride-on mowers, zero-turn mowers, vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV750-1 |
| Product Type | Vertical Shaft Engine |
| Displacement | 750 cc |
| Rated Power | 24.5 hp |
| Rated Torque | 51 Nm |
| Cylinder Bore x Stroke | 82 × 71 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 2.0 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 670 × 500 × 585 mm |
| Net Weight | 44.5 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU | CPV750-1 |
