Cox 679cc Vertical - Fuel Injection / V-Twin / E-Start / HD Air Filter - CPV680-3EI/HDF

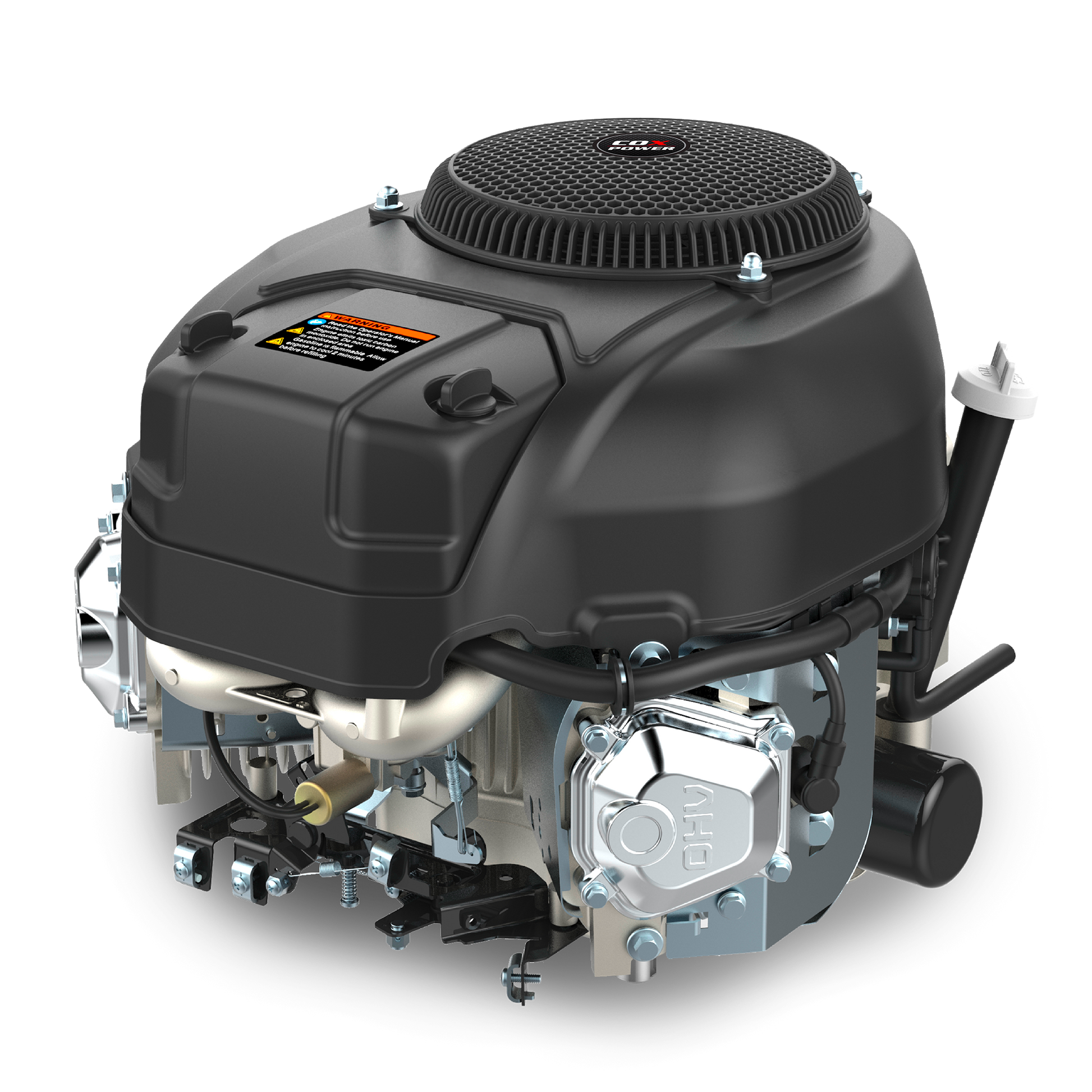

COX CPV680-3EI/HDF Vertical Shaft Engine – 23hp (EFI, E-Start, Cyclonic Air Filter)

Overview The CPV680-3EI/HDF is a full-commercial grade 679cc V-Twin petrol engine designed for high-frequency vertical shaft applications. Featuring Electronic Fuel Injection (EFI), electric start, and a heavy-duty cyclonic air filter, it delivers 23hp and 47 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and Euro V certification ensure durability, efficiency, and compliance for commercial ride-on and zero-turn mowers.

Key Features

• 23hp Rated Power at 3900 rpm
• 679cc V-Twin Displacement
• 47 Nm Max Torque
• Electronic Fuel Injection (EFI)
• 1" Vertical Keyway Shaft
• Electric Start System
• Heavy-Duty Cyclonic Air Filter
• Engine Oil Capacity: 2.0 L (SAE 10W-30 recommended)
• Engine Dimensions: 670 × 550 × 585 mm
• Net Weight: 50 kg
• Certifications: Euro V
• Applications: commercial ride-on mowers, zero-turn mowers, vertical shaft machinery
