Cox 679cc Vertical - V-Twin / E-Start - CPV680-1

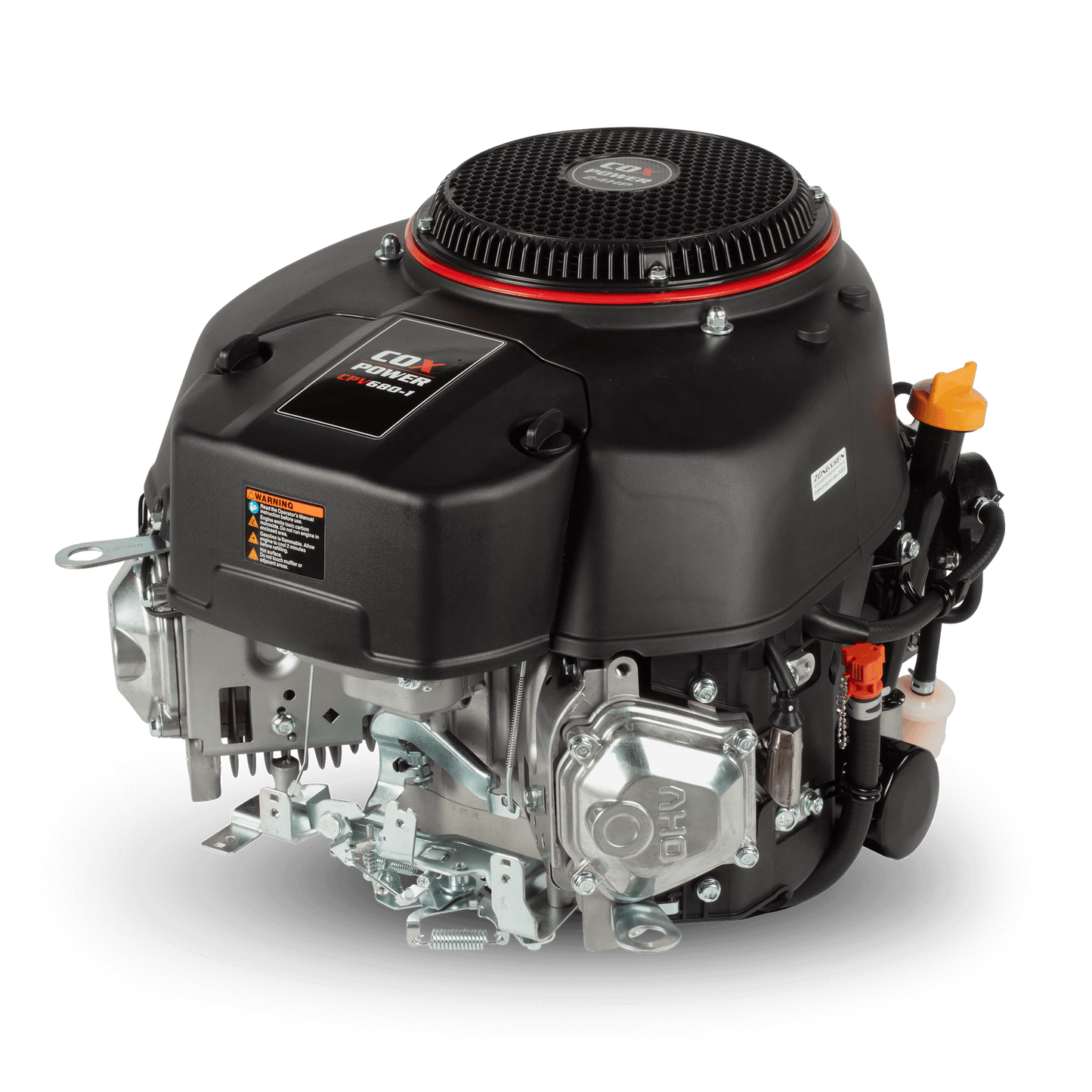

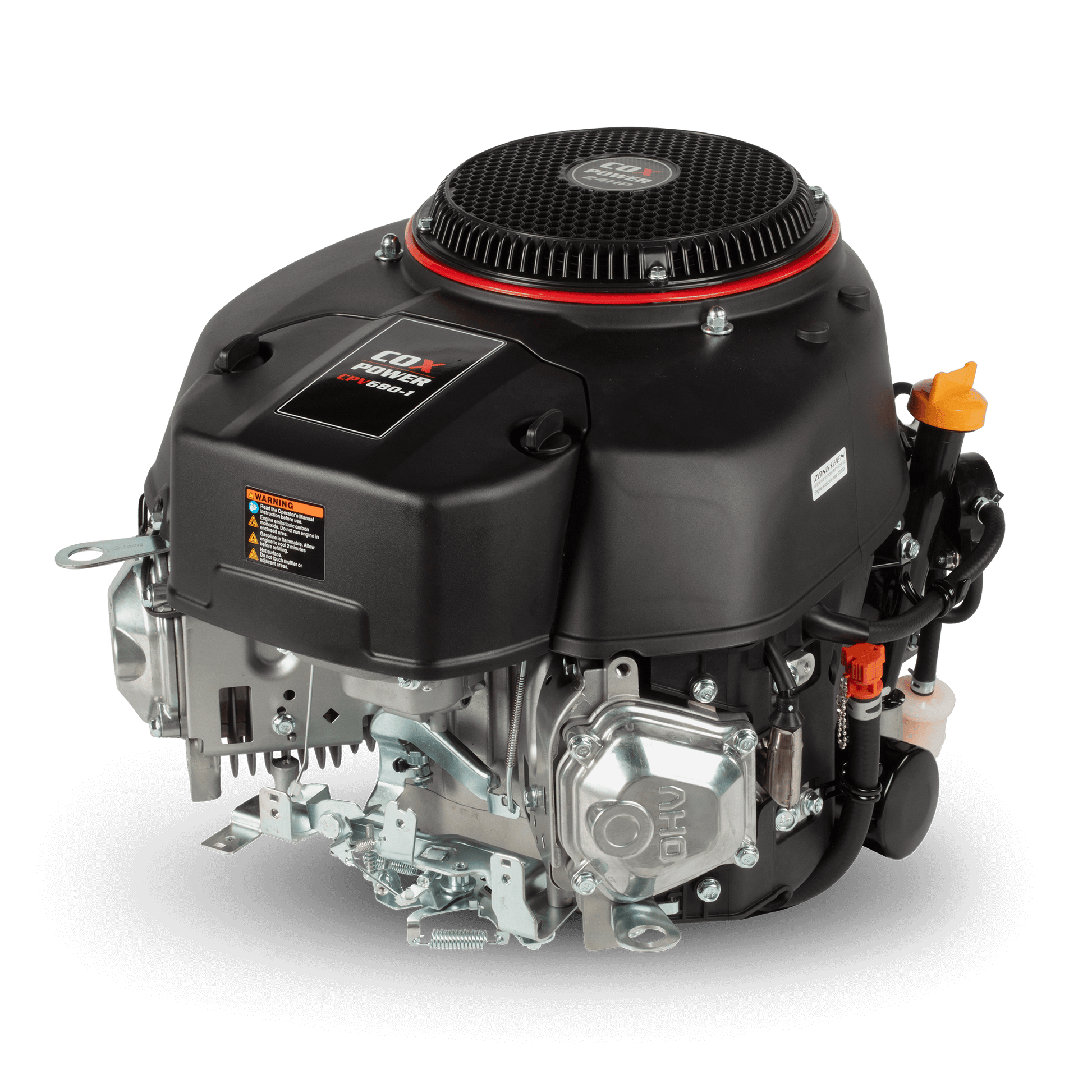

COX CPV680-1 Vertical Shaft Engine – 22.5hp (V-Twin, Electric Start)

Overview The CPV680-1 is a full-commercial grade 679cc V-Twin petrol engine designed for high-frequency vertical shaft applications. With electric start and a 1" keyway shaft, it delivers 22.5hp and 46 Nm of torque. Its cast iron cylinder liner, 2L oil capacity, and efficient fuel consumption make it ideal for commercial ride-on and zero-turn mowers.

Key Features

• 22.5hp Rated Power at 3900 rpm
• 679cc V-Twin Displacement
• 46 Nm Max Torque
• 1" Vertical Keyway Shaft
• Electric Start System
• Cast Iron Cylinder Liner
• Engine Oil Capacity: 2.0 L (SAE 10W-30 recommended)
• Engine Dimensions: 670 × 500 × 585 mm
• Net Weight: 49.6 kg
• Specific Fuel Consumption: ≤ 370 g/kW·h
• Certifications: CE, EC(V), EPA, CARB
• Applications: commercial ride-on mowers, zero-turn mowers, general-purpose vertical shaft machinery

Specifications
