Cox 16.8hp Vertical - Fuel Injection / E-Start - CPV550-3EI
Cox 16.8hp Vertical - Fuel Injection / E-Start - CPV550-3EI
Regular price
$1,371.06
Regular price
$0.00
Sale price
$1,371.06
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

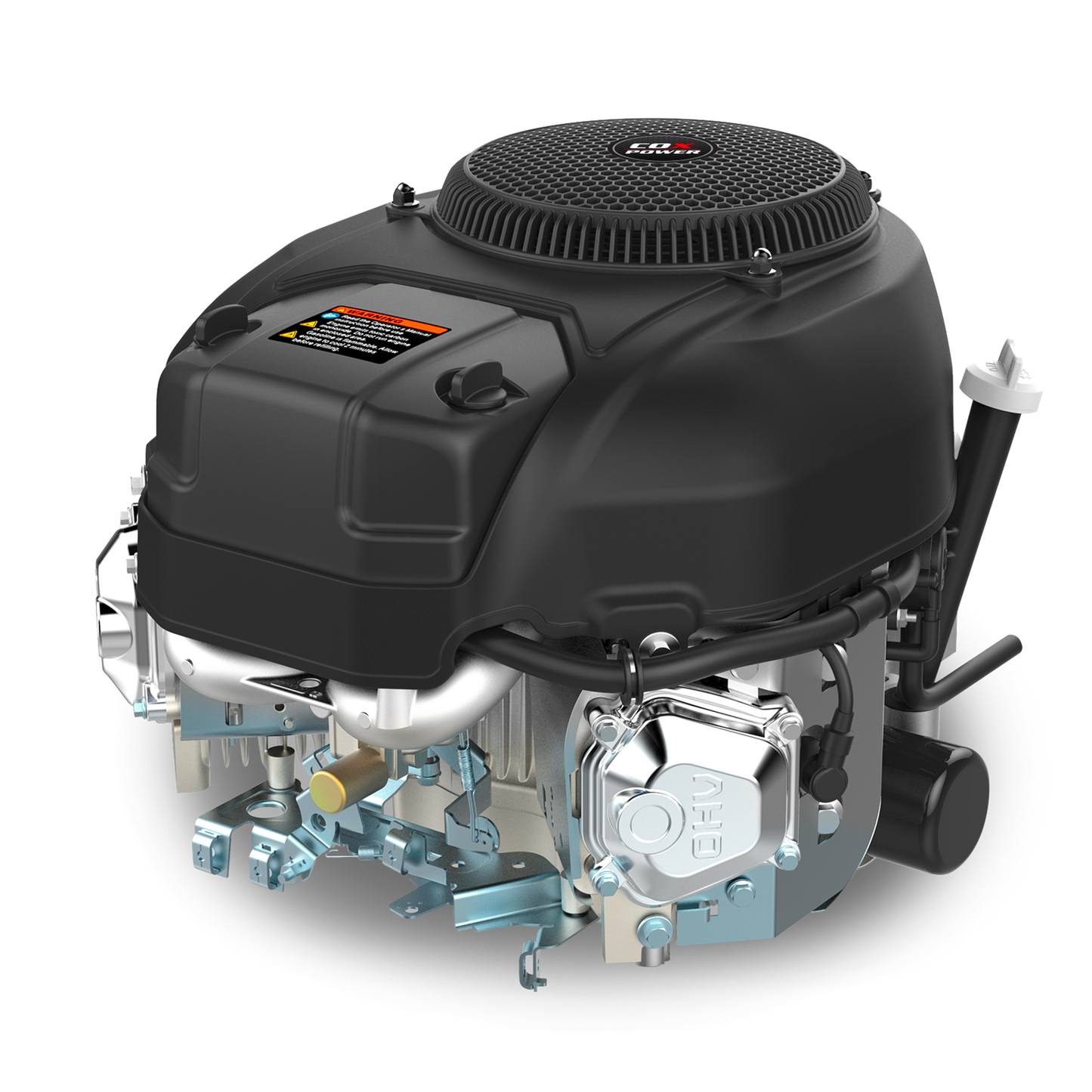

COX CPV550-3EI Vertical Shaft Engine – 16.8hp (EFI, Electric Start)
Overview The CPV550-3EI is a 547cc vertical shaft petrol engine equipped with Electronic Fuel Injection (EFI) and electric start. Designed for medium to large ride-on mowers, it delivers 16.8hp and 34 Nm of torque through a 1" keyway shaft. With CE and EC(V) certifications and a compact footprint, it’s built for efficient, reliable performance in high-frequency vertical shaft applications.
Key Features
- 16.8hp Rated Power at 3600 rpm
- 547cc Displacement
- 34 Nm Max Torque
- Electronic Fuel Injection (EFI)
- 1" Vertical Keyway Shaft
- Electric Start System
- Engine Oil Capacity: 1.8 L (SAE 10W-30 recommended)
- Engine Dimensions: 550 × 440 × 445 mm
- Net Weight: 35 kg
- Certifications: CE, EC(V)
- Applications: medium to large ride-on mowers, vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV550-3EI |
| Product Type | Vertical Shaft Engine |
| Displacement | 547 cc |
| Rated Power | 16.8 hp |
| Rated Torque | 34 Nm |
| Cylinder Bore x Stroke | 90 × 86 mm |
| Max Output Speed | 3600 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Fuel System | Electronic Fuel Injection (EFI) |
| Engine Oil Capacity | 1.8 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 345 g/kW·h |
| Engine Dimensions (L×W×H) | 550 × 440 × 445 mm |
| Net Weight | 35 kg |
| Certifications | CE, EC(V) |
| SKU | CPV550-3EI |
