Cox 547cc Vertical - E-Start - CPV550-1
Cox 547cc Vertical - E-Start - CPV550-1
Regular price
$914.03
Regular price
$0.00
Sale price
$914.03
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

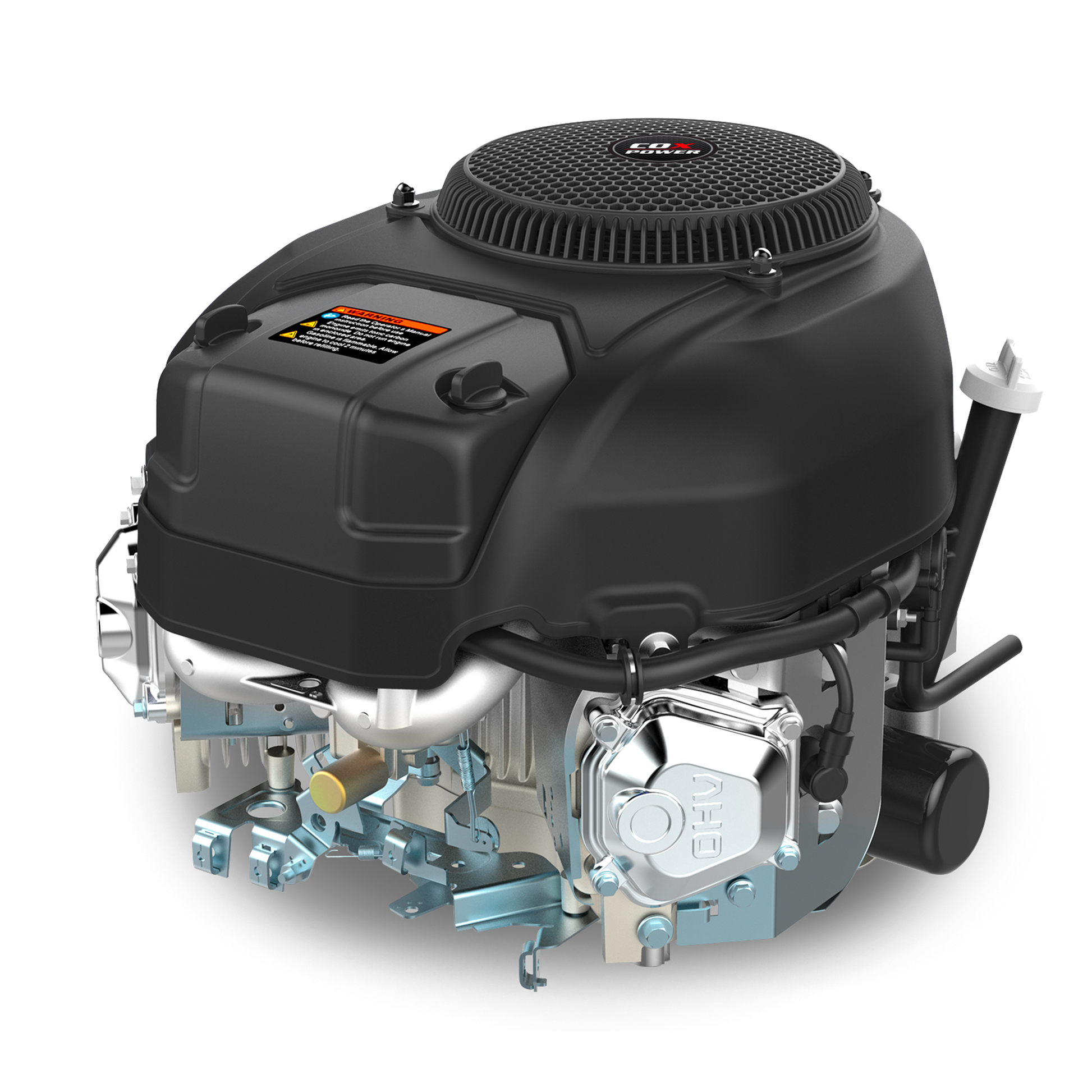

COX CPV550-1 Vertical Shaft Engine – 15.4hp (Electric Start)
Overview The CPV550-1 is a 547cc vertical shaft petrol engine designed for medium to large ride-on mowers and frequently used machinery. With electric start and a 1" keyway shaft, it delivers 15.4hp and 33 Nm of torque. Its CE and EC(V) certifications ensure compliance and reliability for high-frequency vertical shaft applications.
Key Features
- 15.4hp Rated Power at 3800 rpm
- 547cc Displacement
- 33 Nm Max Torque
- 1" Vertical Keyway Shaft
- Electric Start System
- Engine Oil Capacity: 1.8 L (SAE 10W-30 recommended)
- Engine Dimensions: 505 × 440 × 435 mm
- Net Weight: 33 kg
- Certifications: CE, EC(V)
- Applications: medium to large ride-on mowers, high-frequency vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV550-1 |
| Product Type | Vertical Shaft Engine |
| Displacement | 547 cc |
| Rated Power | 15.4 hp |
| Rated Torque | 33 Nm |
| Cylinder Bore x Stroke | 90 × 86 mm |
| Max Output Speed | 3800 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 1.8 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 385 g/kW·h |
| Engine Dimensions (L×W×H) | 505 × 440 × 435 mm |
| Net Weight | 33 kg |
| Certifications | CE, EC(V) |
| SKU | CPV550-1 |
