Cox 439cc Vertical - Fuel Injection / E-Start - CPV440-3EI
Cox 439cc Vertical - Fuel Injection / E-Start - CPV440-3EI
Regular price
$1,343.51
Regular price
$0.00
Sale price
$1,343.51
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

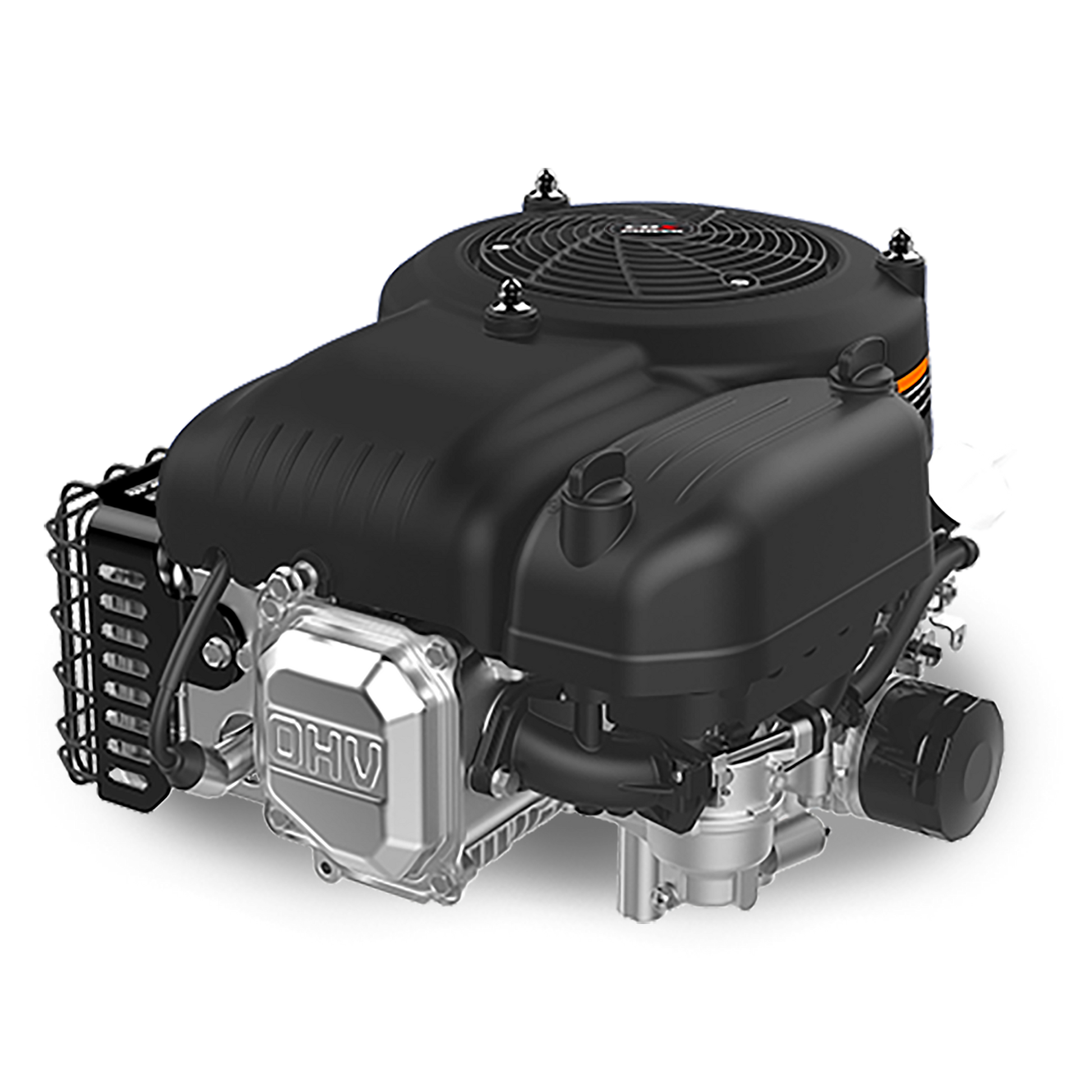

COX CPV440-3EI Vertical Shaft Engine – 13.5hp (EFI, Electric Start)
Overview The CPV440-3EI is a 439cc vertical shaft petrol engine equipped with Electronic Fuel Injection (EFI) and electric start. Designed for compact ride-on mowers and frequently used machinery, it delivers 13.5hp and 29 Nm of torque through a 1" keyway shaft. With CE, EC(V), EPA, and CARB certifications, it offers reliable performance and regulatory compliance in a compact footprint.
Key Features
- 13.5hp Rated Power at 3600 rpm
- 439cc Displacement
- 29 Nm Max Torque
- Electronic Fuel Injection (EFI)
- 1" Vertical Keyway Shaft
- Electric Start System
- Engine Oil Capacity: 1.4 L (SAE 10W-30 recommended)
- Engine Dimensions: 475 × 400 × 440 mm
- Net Weight: 27 kg
- Certifications: CE, EC(V), EPA, CARB
- Applications: compact ride-on mowers, high-frequency vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV440-3EI |
| Product Type | Vertical Shaft Engine |
| Displacement | 439 cc |
| Rated Power | 13.5 hp |
| Rated Torque | 29 Nm |
| Cylinder Bore x Stroke | 90 × 69 mm |
| Max Output Speed | 3600 rpm |
| Idle Speed | 1750 ± 200 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Fuel System | Electronic Fuel Injection (EFI) |
| Engine Oil Capacity | 1.4 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 360 g/kW·h |
| Engine Dimensions (L×W×H) | 475 × 400 × 440 mm |
| Net Weight | 27 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU | CPV440-3EI |
