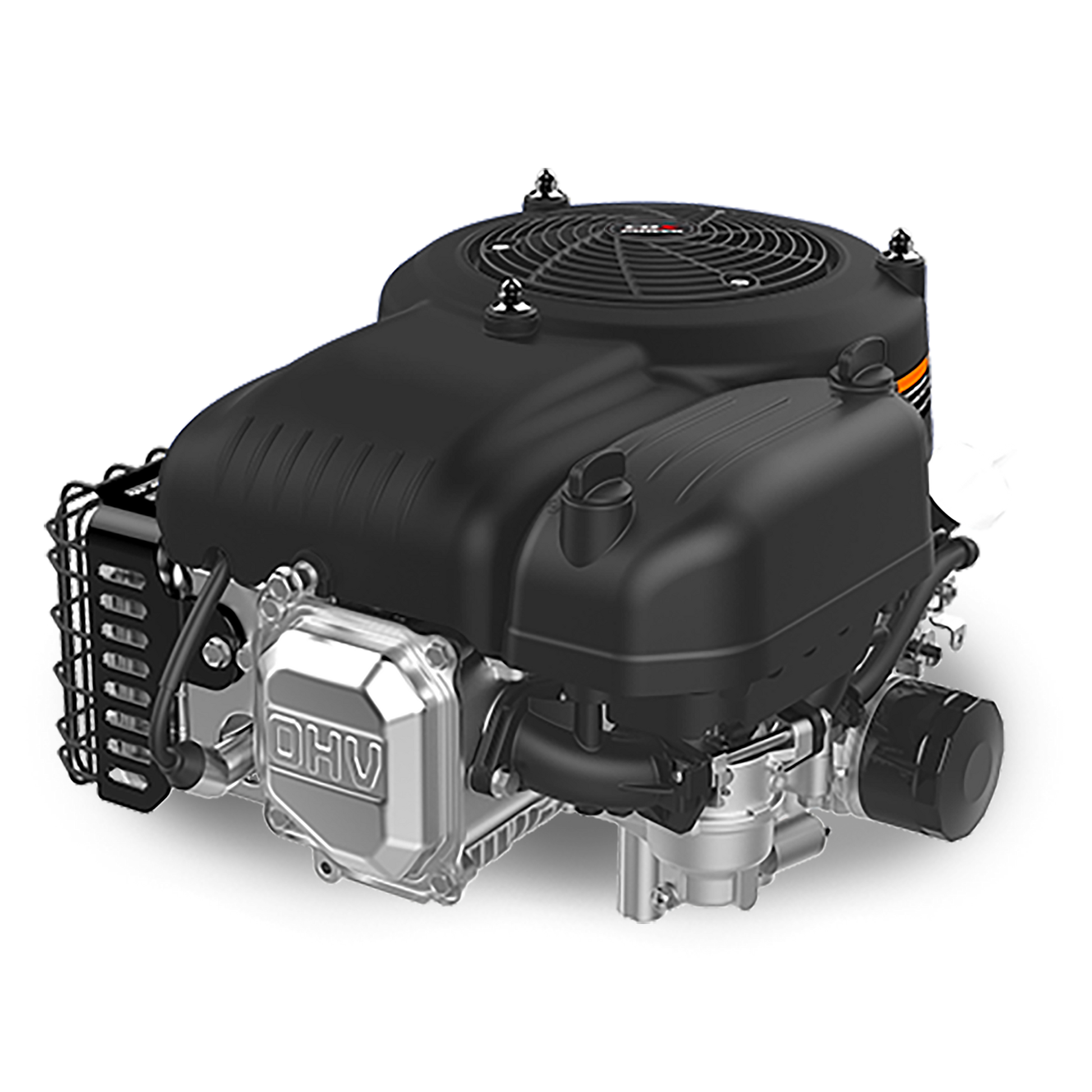

COX CPV440-1 Vertical Shaft Engine – 12.7hp (Electric Start)
Overview The CPV440-1 is a high-performance 439cc vertical shaft petrol engine designed for compact ride-on mowers, push mowers, and similar machinery. With electric start and a 1" keyway shaft, it delivers 12.7hp and 27.5 Nm of torque. Its compact form factor and CE, EC(V) certifications make it a dependable replacement for engines like the Briggs & Stratton 13HP and Honda GXV390.
Key Features
- 12.7hp Rated Power at 3600 rpm
- 439cc Displacement
- 27.5 Nm Max Torque
- 1" Vertical Keyway Shaft
- Electric Start System
- Engine Oil Capacity: 1.4 L (SAE 10W-30 recommended)
- Engine Dimensions: 475 × 400 × 440 mm
- Net Weight: 26 kg
- Certifications: CE, EC(V)
- Applications: compact ride-on mowers, push mowers, vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV440-1 |
| Product Type | Vertical Shaft Engine |
| Displacement | 439 cc |
| Rated Power | 12.7 hp |
| Rated Torque | 27.5 Nm |
| Cylinder Bore x Stroke | 90 × 69 mm |
| Max Output Speed | 3600 rpm |
| Idle Speed | 2200 ± 200 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 1.4 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 400 g/kW·h |
| Engine Dimensions (L×W×H) | 475 × 400 × 440 mm |
| Net Weight | 26 kg |
| Certifications | CE, EC(V) |
| SKU | CPV440-1 |
