COX
Cox 382cc Vertical - Electric Start - CPV380-1
Cox 382cc Vertical - Electric Start - CPV380-1
Regular price
$822.64
Regular price
$0.00
Sale price
$822.64
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

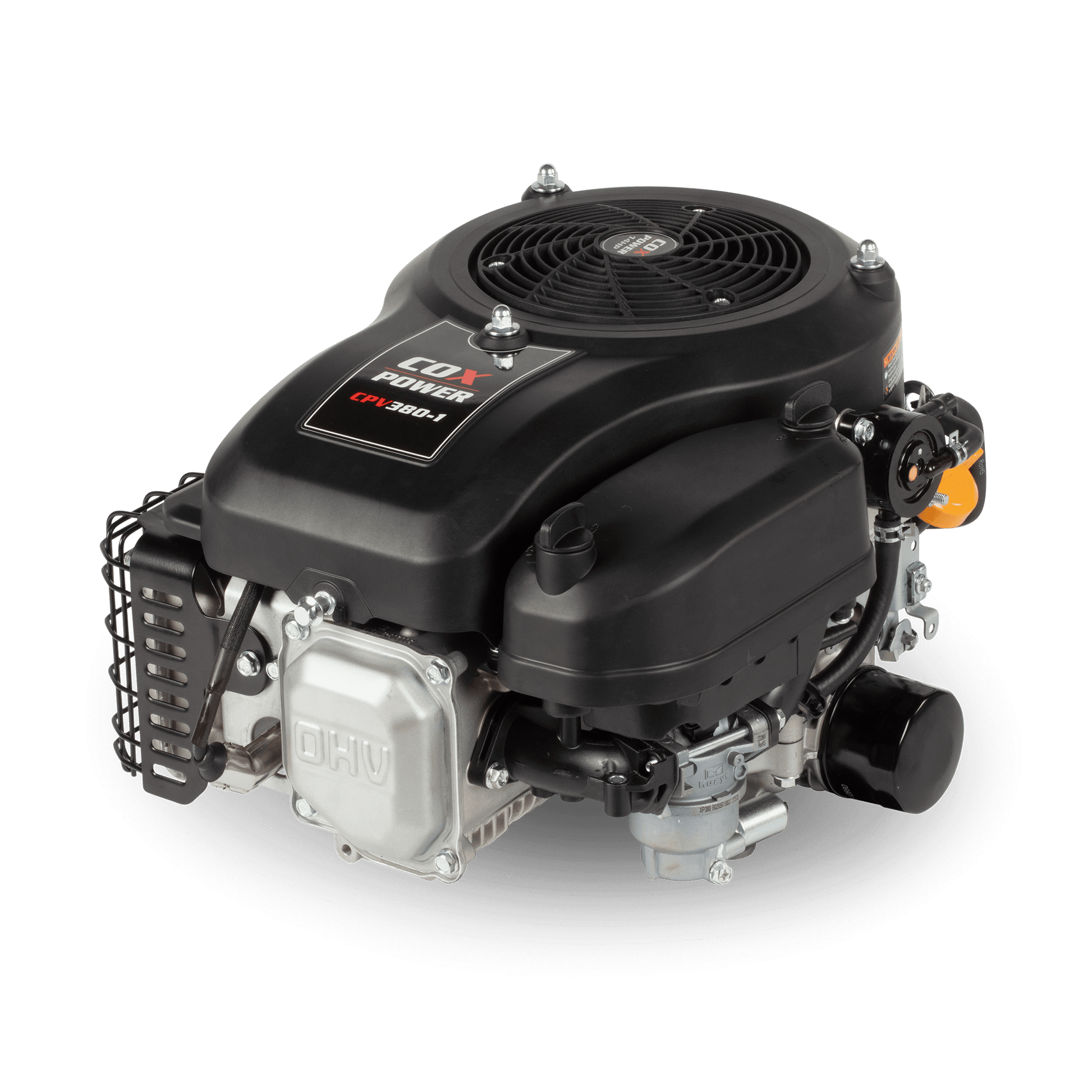

COX CPV380-1 Vertical Shaft Engine – 11.5hp (Electric Start)
Overview The CPV380-1 is a robust 382cc vertical shaft petrol engine designed for ride-on mowers and frequently used machinery. With electric start and a 1" keyway shaft, it delivers 11.5hp and 24.5 Nm of torque. Its compact dimensions and CE, EC(V) certifications make it a reliable replacement for engines like the Briggs & Stratton Lawnmower Engine and Honda GXV390.
Key Features
- 11.5hp Rated Power at 3600 rpm
- 382cc Displacement
- 24.5 Nm Max Torque
- 1" Vertical Keyway Shaft
- Electric Start System
- Engine Oil Capacity: 1.4 L (SAE 10W-30 recommended)
- Engine Dimensions: 475 × 400 × 440 mm
- Net Weight: 26 kg
- Certifications: CE, EC(V)
- Applications: ride-on mowers, high-frequency vertical shaft machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV380-1 |
| Product Type | Vertical Shaft Engine |
| Displacement | 382 cc |
| Rated Power | 11.5 hp |
| Rated Torque | 24.5 Nm |
| Cylinder Bore x Stroke | 84 × 69 mm |
| Max Output Speed | 3600 rpm |
| Idle Speed | 2200 ± 200 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 1.4 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 421 g/kW·h |
| Engine Dimensions (L×W×H) | 475 × 400 × 440 mm |
| Net Weight | 26 kg |
| Certifications | CE, EC(V) |
| SKU | CPV380-1 |
