Cox 33hp Vertical - V-Twin / E-Start - CPV1000-1
Cox 33hp Vertical - V-Twin / E-Start - CPV1000-1
Regular price
$3,747.57
Regular price
$0.00
Sale price
$3,747.57
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

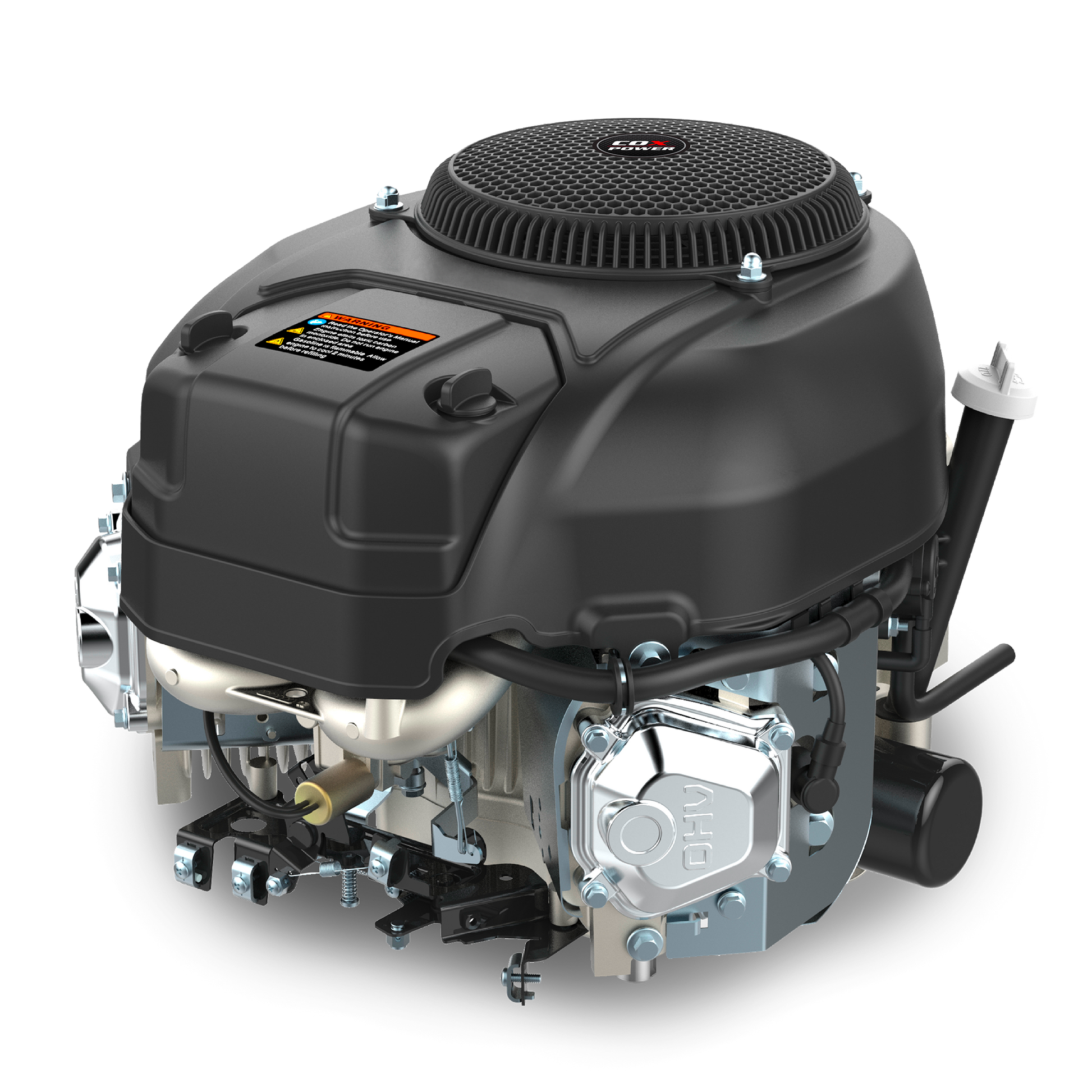

COX CPV1000-1 Vertical Shaft Engine – 33hp (V-Twin, Electric Start)
Overview The CPV1000-1 is a full-commercial grade 999cc V-Twin petrol engine engineered for high-performance vertical shaft applications. With electric start and a 1" keyway shaft, it delivers 33hp and 71 Nm of torque. Its cast iron cylinder liner, 2.5L oil capacity, and rugged build make it ideal for commercial mowers, light utility vehicles, generators, irrigation pumps, pressure washers, and even small marine craft.
Key Features
- 33hp Rated Power at 3900 rpm
- 999cc V-Twin Displacement
- 71 Nm Max Torque
- 1" Vertical Keyway Shaft
- Electric Start System
- Cast Iron Cylinder Liner
- Engine Oil Capacity: 2.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 655 × 580 × 640 mm
- Net Weight: 55 kg
- Specific Fuel Consumption: ≤ 370 g/kW·h
- Certifications: Not explicitly listed (Euro V assumed based on series)
- Applications: commercial mowers, generators, irrigation pumps, pressure washers, marine craft
Specifications
| Attribute | Detail |
|---|---|
| Model | CPV1000-1 |
| Product Type | Vertical Shaft Engine |
| Displacement | 999 cc |
| Rated Power | 33 hp |
| Rated Torque | 71 Nm |
| Cylinder Bore x Stroke | 90 × 78.5 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Vertical Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 2.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 655 × 580 × 640 mm |
| Net Weight | 55 kg |
| SKU | CPV1000-1 |
