Cox Fire Pump 2" High Lift 15hp CPHL20
Cox Fire Pump 2" High Lift 15hp CPHL20
Regular price
$999.00
Regular price
$0.00
Sale price
$999.00
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

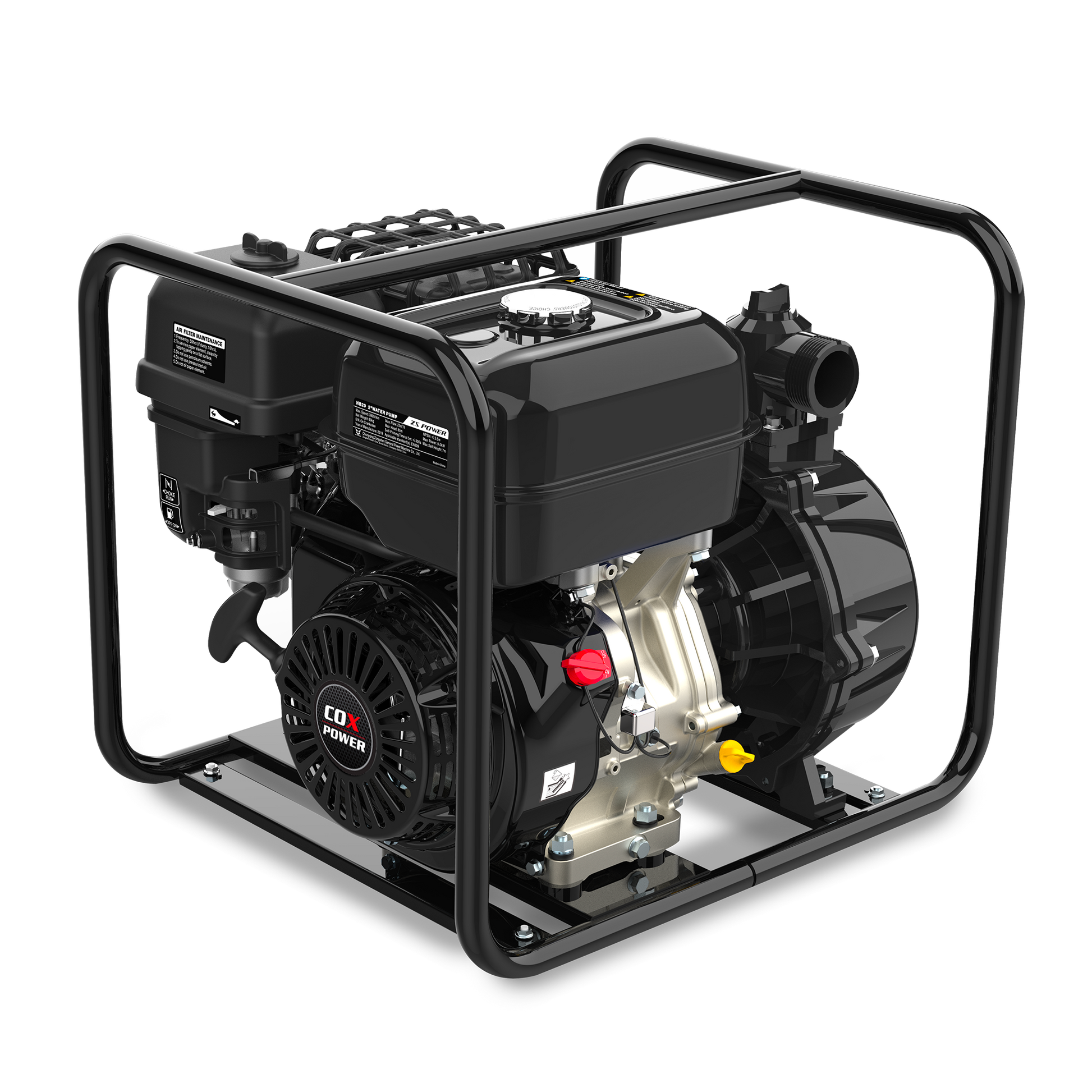

COX CPHL20 2" Fire Pump – High Lift – 15hp
Overview The CPHL20 is COX’s highest-head petrol fire pump, engineered for extreme elevation and long-distance water transfer. Powered by the CPH420 engine, it delivers up to 25,000 litres per hour with an impressive 85m head lift and 7m suction head. Its centrifugal single-impeller design and 2" inlet/outlet ports make it ideal for bushfire protection, hilltop irrigation, and remote water delivery. Rugged, EPA-compliant, and built for serious performance.
Key Features
- CPH420 Petrol Engine with 15hp output
- Centrifugal Single-Impeller Pump for high-pressure delivery
- 25,000 L/hr Max Flow Rate
- 85m Max Head Lift
- 7m Max Suction Head
- 2" (50mm) Inlet/Outlet Ports
- Recoil Start System
- Fuel Tank Capacity: 7.5 L
- Engine Oil Capacity: 1.1 L (SAE 10w-30 recommended)
- Packing Dimensions: 62 × 54 × 55 cm
- Net Weight: 75kg
- EPA-Compliant Emissions
- Applications: bushfire protection, hilltop irrigation, remote water transfer
Specifications
| Attribute | Detail |
|---|---|
| Model | CPHL20 |
| Product Type | Petrol Fire Pump |
| Engine | CPH420 |
| Displacement | 425 cc |
| Rated Power | 15 hp |
| Rated Torque | 27 Nm |
| Pump Structure | Centrifugal / Single Impeller |
| Max Flow | 25,000 L/hr |
| Max Head Lift | 85 m |
| Max Suction Head | 7 m |
| Inlet/Outlet Ports | 50 mm / 50 mm |
| Starting System | Recoil |
| Engine Oil Capacity | 1.1 L |
| Recommended Oil | SAE 10w-30 |
| Fuel Tank Capacity | 7.5 L |
| Packing Dimensions | 62 × 54 × 55 cm |
| Net Weight | 75 kg |
| Emissions/Seal | EPA |
| SKU | CPHL20 |
