Cox 750cc Horizontal Fuel Injection / V-Twin / E-Start CPH750-3EI
Cox 750cc Horizontal Fuel Injection / V-Twin / E-Start CPH750-3EI
Regular price
$2,389.95
Regular price
$0.00
Sale price
$2,389.95
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

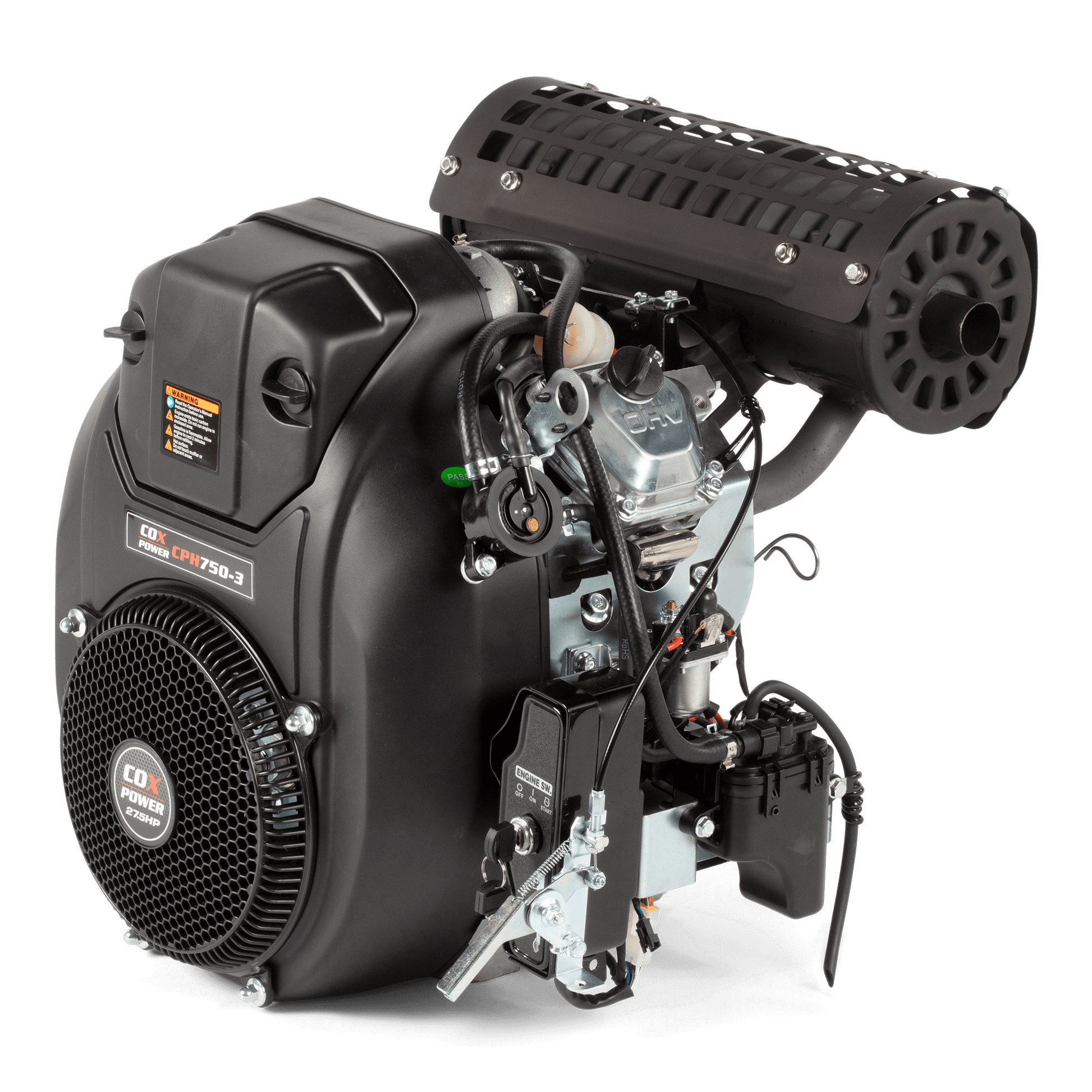

COX CPH750-3EI Horizontal Shaft Engine – 24.5hp (V-Twin, EFI, E-Start)
Overview The CPH750-3EI is a top-tier 750cc V-Twin petrol engine featuring Electronic Fuel Injection (EFI) and electric start. Engineered for high-capacity industrial and agricultural machinery, it delivers 24.5hp and 52 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and Euro V compliance ensure durability, efficiency, and regulatory alignment across tractors, construction equipment, and farming applications.
Key Features
- 24.5hp Rated Power at 3900 rpm
- 750cc V-Twin Displacement
- 52 Nm Max Torque
- Electronic Fuel Injection (EFI)
- 1" Keyway Shaft (Horizontal PTO)
- Electric Start System
- Engine Oil Capacity: 1.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 595 × 595 × 530 mm
- Net Weight: 43 kg
- Certifications: Euro V
- Applications: construction machinery, high-capacity tractors, farming equipment
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH750-3EI |
| Product Type | Horizontal Shaft Engine |
| Displacement | 750 cc |
| Rated Power | 24.5 hp |
| Rated Torque | 52 Nm |
| Cylinder Bore x Stroke | 82 × 71 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Keyway Shaft |
| Starting System | Electric |
| Fuel System | Electronic Fuel Injection (EFI) |
| Engine Oil Capacity | 1.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 595 × 595 × 530 mm |
| Net Weight | 43 kg |
| Certifications | Euro V |
| SKU | CPH750-3EI |
