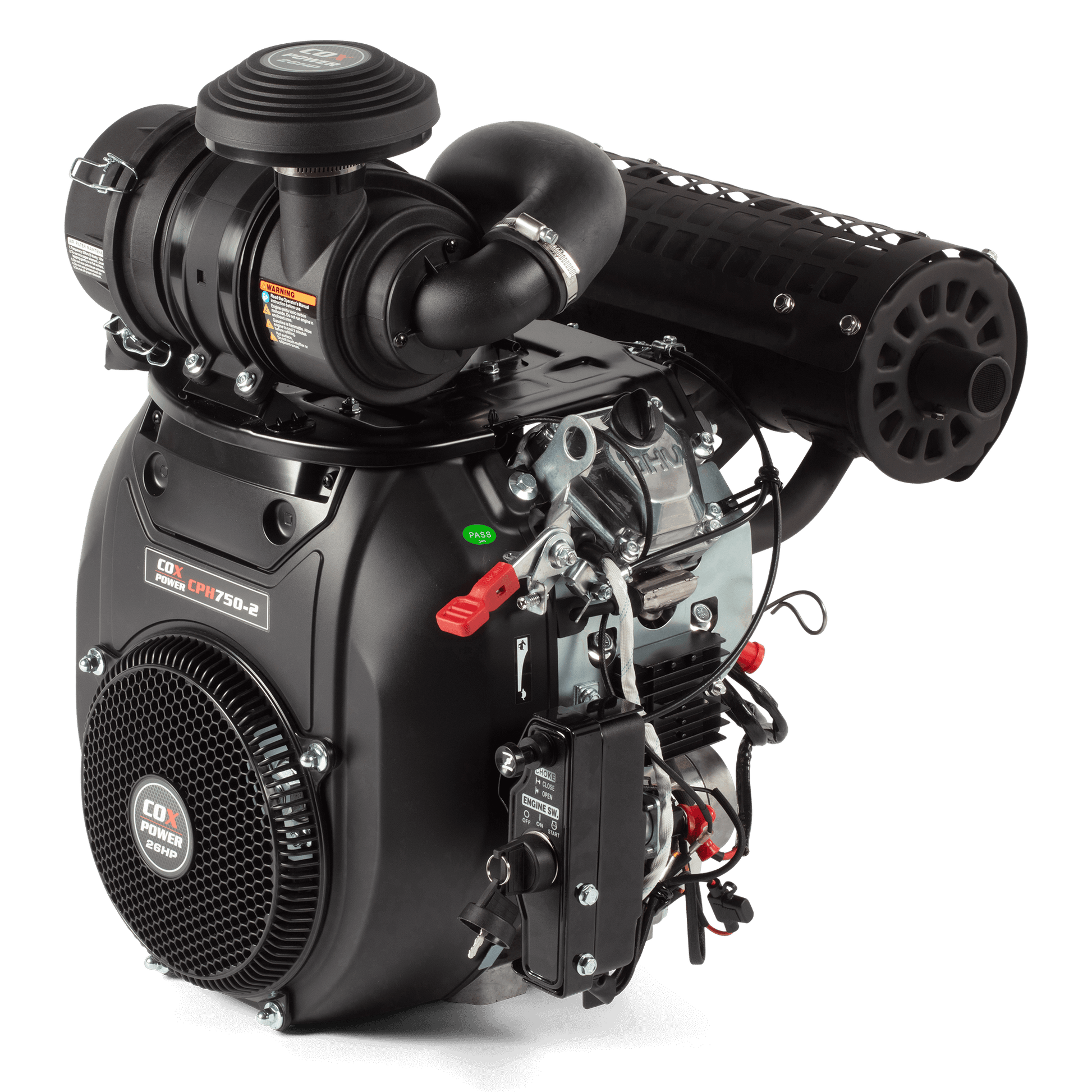

Cox 750cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH750-2HDF
Cox 750cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH750-2HDF
Regular price
$2,010.88
Regular price
$0.00
Sale price
$2,010.88
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability
COX CPH750-2HDF Horizontal Shaft Engine – 24.5hp (V-Twin, E-Start, Cyclonic Air Filter)
Overview The CPH750-2HDF is a full-commercial grade 750cc V-Twin petrol engine built for high-demand industrial, agricultural, and specialty applications. Featuring electric start and a heavy-duty cyclonic air filter, it delivers 24.5hp and 47 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and rugged build ensure long-term reliability across augers, skid steers, compressors, and hovercraft.
Key Features
- 24.5hp Rated Power at 3900 rpm
- 750cc V-Twin Displacement
- 47 Nm Max Torque
- 1" Keyway Shaft (Horizontal PTO)
- Electric Start System
- Heavy-Duty Cyclonic Air Filter
- Engine Oil Capacity: 1.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 550 × 550 × 530 mm
- Net Weight: 43.5 kg
- Certifications: CE, EC(V), EPA, CARB
- Applications: augers, farming machinery, diggers, skid steers, compressors, hovercraft
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH750-2HDF |
| Product Type | Horizontal Shaft Engine |
| Displacement | 750 cc |
| Rated Power | 24.5 hp |
| Rated Torque | 47 Nm |
| Cylinder Bore x Stroke | 82 × 71 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Keyway Shaft |
| Starting System | Electric |
| Air Filter Type | Cyclonic |
| Engine Oil Capacity | 1.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 550 × 550 × 530 mm |
| Net Weight | 43.5 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU | CPH750-2HDF |
