Cox 679cc Horizontal Fuel Injection / V-Twin / E-Start CPH680-3EI
Cox 679cc Horizontal Fuel Injection / V-Twin / E-Start CPH680-3EI
Regular price
$2,285.09
Regular price
$0.00
Sale price
$2,285.09
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

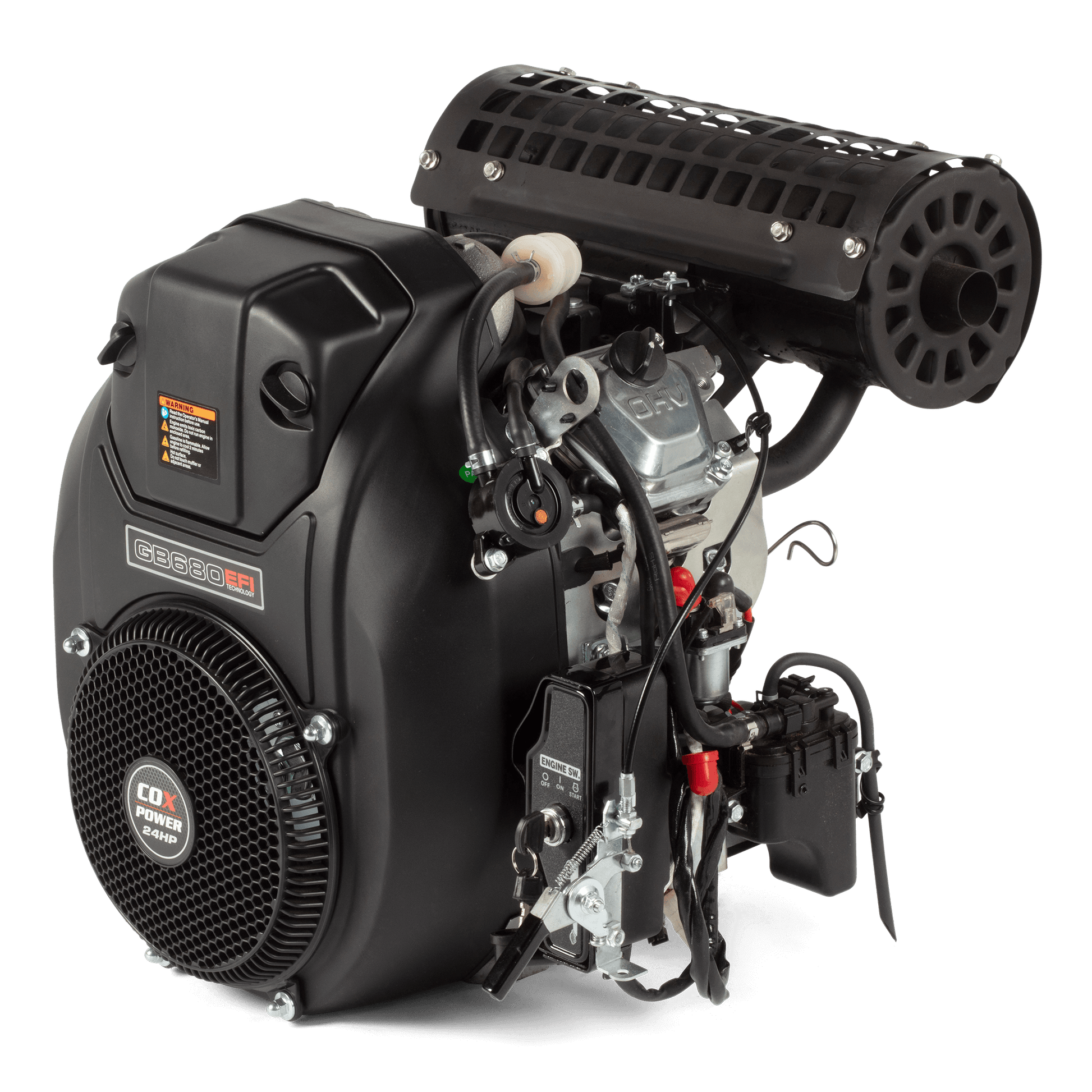

COX CPH680-3EI Horizontal Shaft Engine – 23hp (V-Twin, EFI, E-Start)
Overview The CPH680-3EI is a full-commercial grade 679cc V-Twin petrol engine featuring Electronic Fuel Injection (EFI) and electric start. Built for industrial, construction, and commercial applications, it delivers 23hp and 47 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and rugged build ensure long-term reliability across augers, skid steers, compressors, and hovercraft.
Key Features
- 23hp Rated Power at 3900 rpm
- 679cc V-Twin Displacement
- 47 Nm Max Torque
- Electronic Fuel Injection (EFI)
- 1" Keyway Shaft (Horizontal PTO)
- Electric Start System
- Engine Oil Capacity: 1.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 595 × 595 × 530 mm
- Net Weight: 43 kg
- Certifications: Euro V
- Applications: augers, farming machinery, diggers, skid steers, compressors, hovercraft
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH680-3EI |
| Product Type | Horizontal Shaft Engine |
| Displacement | 679 cc |
| Rated Power | 23 hp |
| Rated Torque | 47 Nm |
| Cylinder Bore x Stroke | 78 × 71 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Keyway Shaft |
| Starting System | Electric |
| Fuel System | Electronic Fuel Injection (EFI) |
| Engine Oil Capacity | 1.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 595 × 595 × 530 mm |
| Net Weight | 43 kg |
| Certifications | Euro V |
| SKU | CPH680-3EI |
