Cox 679cc Horizontal V-Twin / E-Start CPH680-2
Cox 679cc Horizontal V-Twin / E-Start CPH680-2
Regular price
$1,832.12
Regular price
$0.00
Sale price
$1,832.12
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

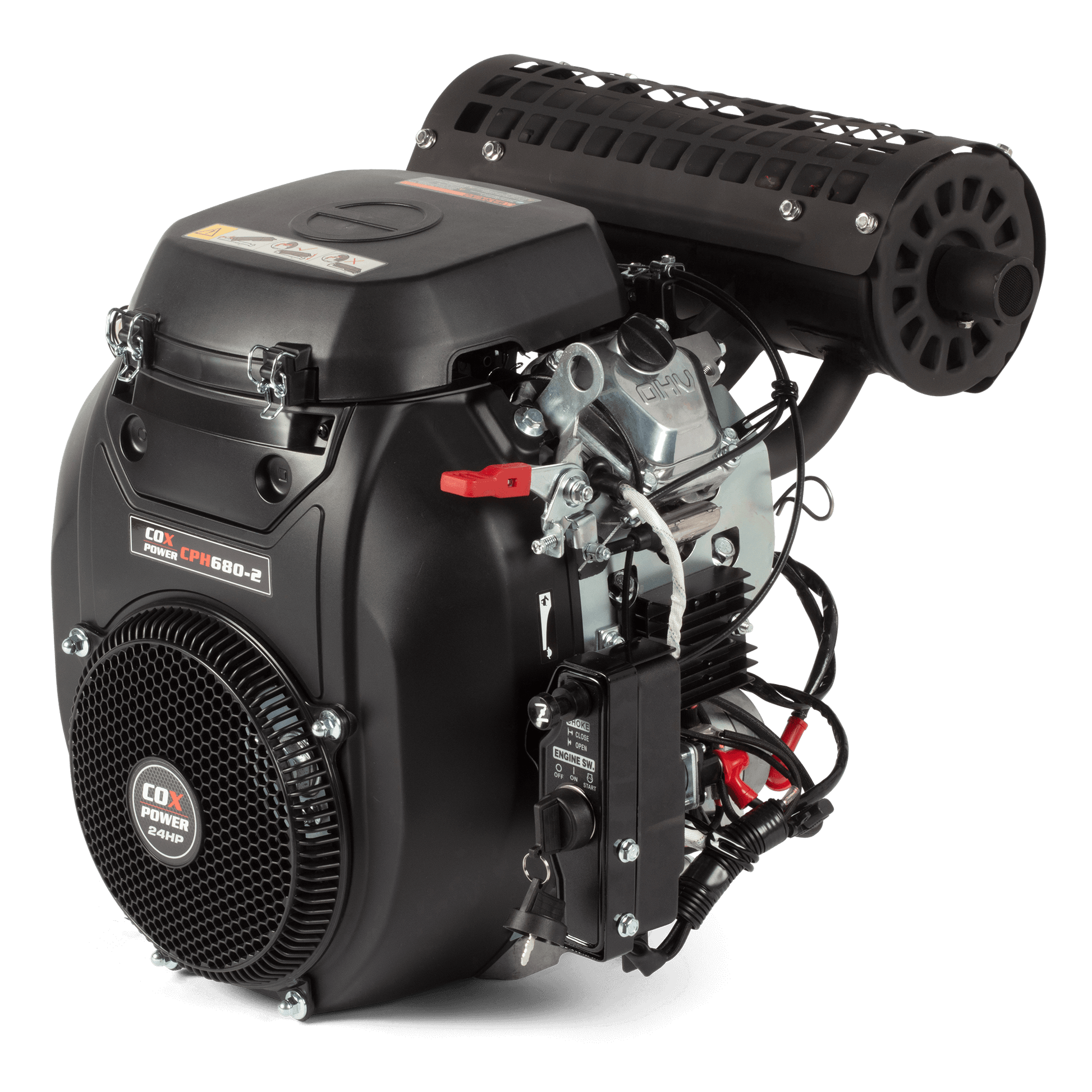

COX CPH680-2 Horizontal Shaft Engine – 22.5hp (V-Twin, E-Start)
Overview The CPH680-2 is a full-commercial grade V-Twin petrol engine built for high-demand industrial, agricultural, and specialty applications. With a 679cc displacement and 46 Nm of torque, it features a 1" keyway shaft and electric start system. Its rugged construction and cast iron cylinder liner ensure long-term reliability across augers, skid steers, compressors, and even hovercraft.
Key Features
- 22.5hp Rated Power at 3900 rpm
- 679cc V-Twin Displacement
- 46 Nm Max Torque
- 1" Keyway Shaft (Horizontal PTO)
- Electric Start System
- Fuel Tank Capacity: Not specified
- Engine Oil Capacity: 1.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 550 × 550 × 530 mm
- Net Weight: 43.5 kg
- Certifications: CE, EC(V), EPA, CARB
- Applications: augers, farming machinery, diggers, skid steers, compressors, hovercraft
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH680-2 |
| Product Type | Horizontal Shaft Engine |
| Displacement | 679 cc |
| Rated Power | 22.5 hp |
| Rated Torque | 46 Nm |
| Cylinder Bore x Stroke | 78 × 71 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1750 ± 150 rpm |
| PTO Shaft Size | 1" Keyway Shaft |
| Starting System | Electric |
| Engine Oil Capacity | 1.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 550 × 550 × 530 mm |
| Net Weight | 43.5 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU | CPH680-2 |
