Cox 679cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH680-1HDF

Cox 679cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH680-1HDF

$1,919.48
$0.00 $1,919.48
Sale Sold out
Taxes included.

Not Stocked – Order In

Lead time: 2–14 business days

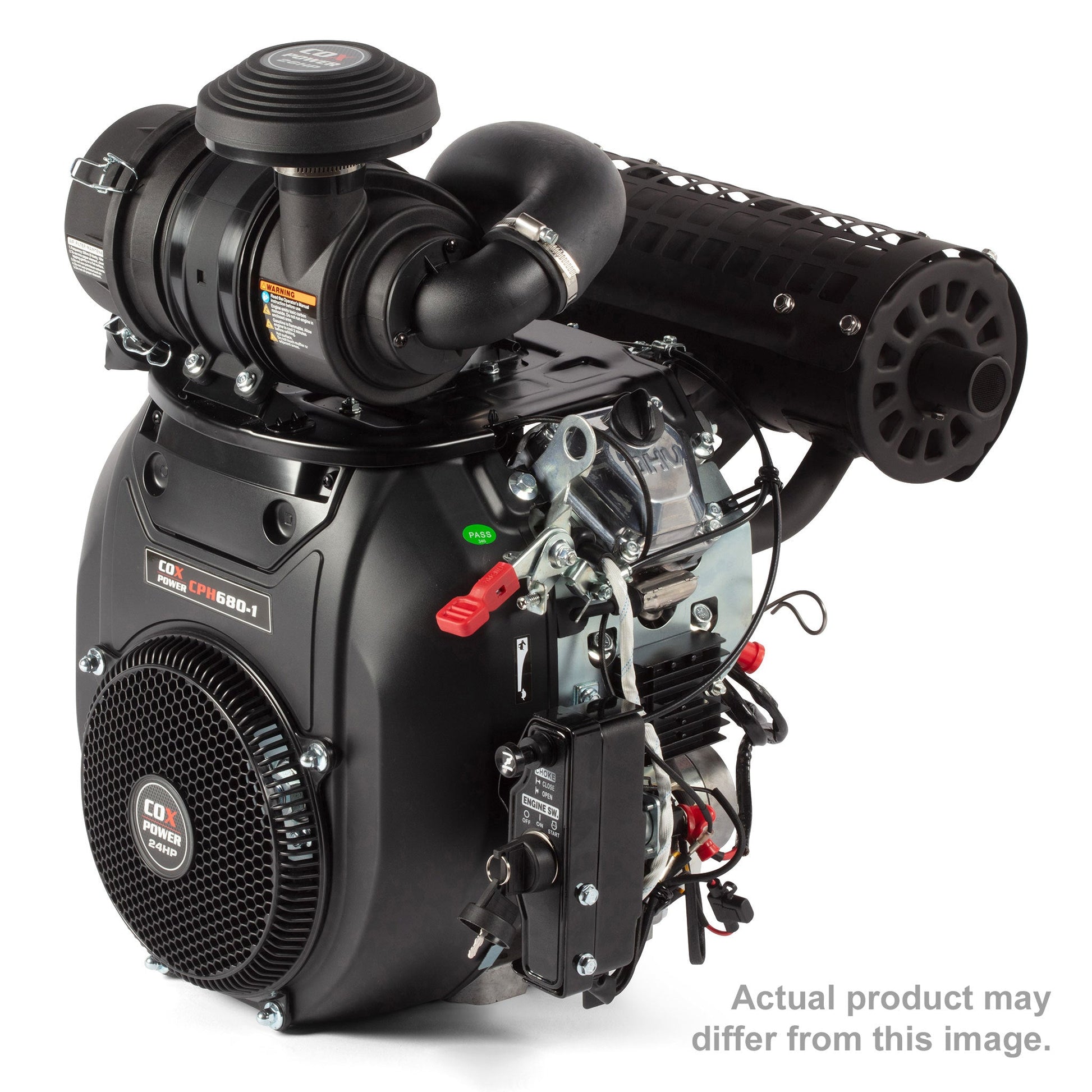

COX CPH680-1HDF Horizontal Shaft Engine – 22.5hp (V-Twin, E-Start, Cyclonic Air Filter)

Overview The CPH680-1HDF is a full-commercial grade 679cc V-Twin petrol engine designed for high-demand industrial, agricultural, and specialty applications. Featuring a heavy-duty cyclonic air filter and electric start system, it delivers 22.5hp and 46 Nm of torque through a 1" keyway shaft. Its cast iron cylinder liner and rugged build make it ideal for augers, skid steers, compressors, and even hovercraft.


Key Features

  • 22.5hp Rated Power at 3900 rpm
  • 679cc V-Twin Displacement
  • 46 Nm Max Torque
  • 1" Keyway Shaft (Horizontal PTO)
  • Electric Start System
  • Heavy-Duty Cyclonic Air Filter
  • Engine Oil Capacity: 1.5 L (SAE 10W-30 recommended)
  • Engine Dimensions: 550 × 550 × 530 mm
  • Net Weight: 43.5 kg
  • Certifications: CE, EC(V), EPA, CARB
  • Applications: augers, farming machinery, diggers, skid steers, compressors, hovercraft

Specifications

Attribute Detail
Model CPH680-1HDF
Product Type Horizontal Shaft Engine
Displacement 679 cc
Rated Power 22.5 hp
Rated Torque 46 Nm
Cylinder Bore x Stroke 78 × 71 mm
Max Output Speed 3900 rpm
Idle Speed 1750 ± 150 rpm
PTO Shaft Size 1" Keyway Shaft
Starting System Electric
Air Filter Type Cyclonic
Engine Oil Capacity 1.5 L
Recommended Oil SAE 10W-30
Specific Fuel Consumption Not specified
Engine Dimensions (L×W×H) 550 × 550 × 530 mm
Net Weight 43.5 kg
Certifications CE, EC(V), EPA, CARB
SKU CPH680-1HDF
