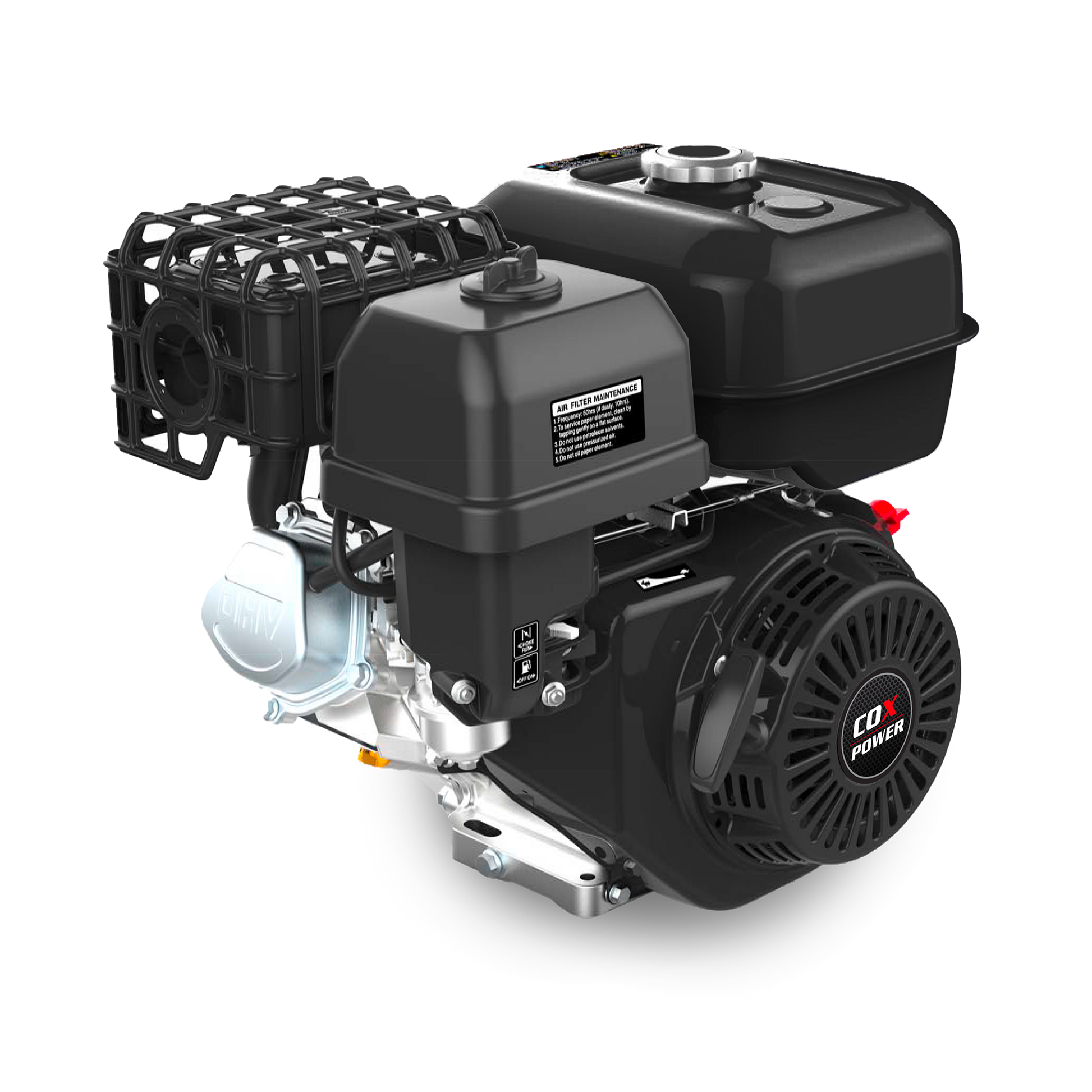

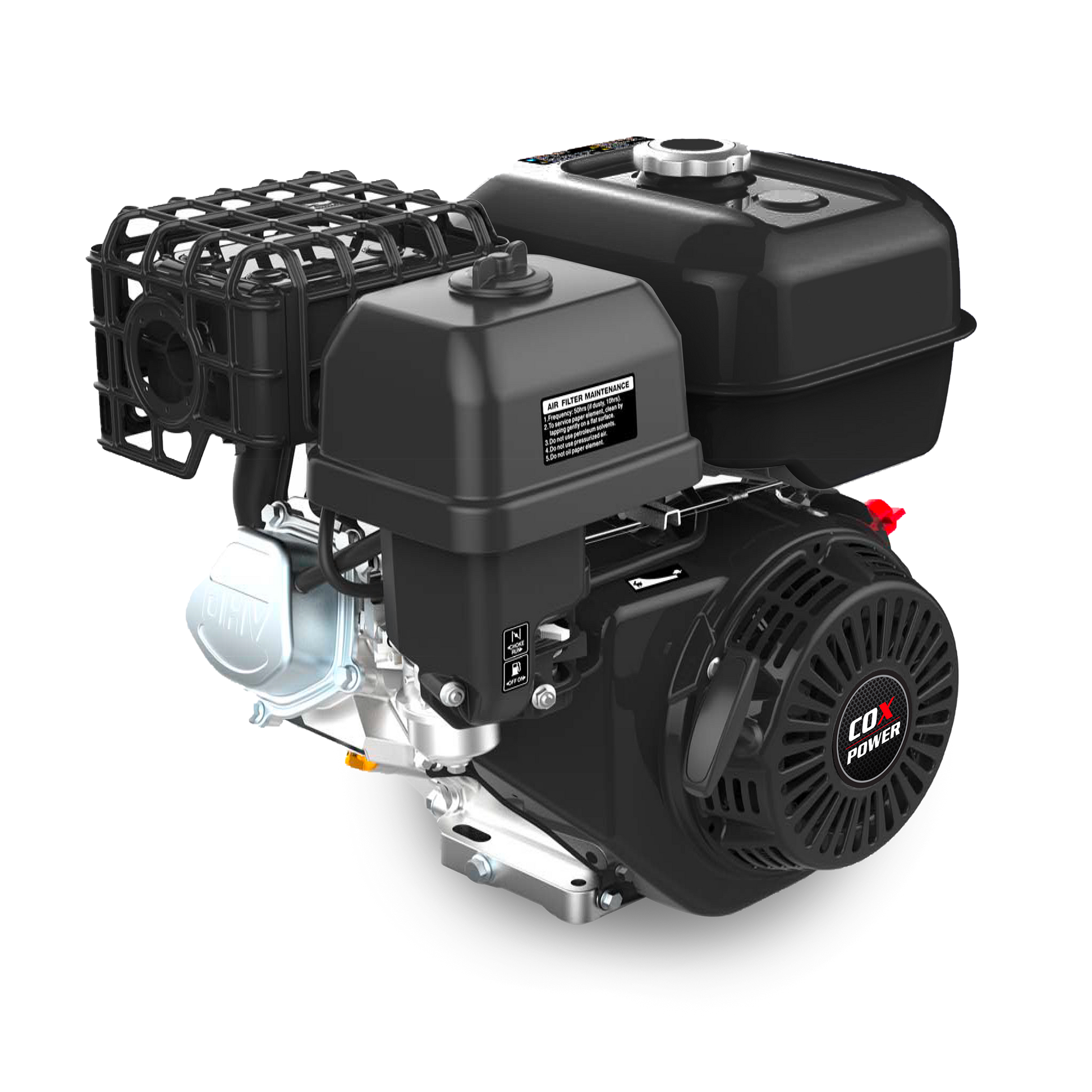

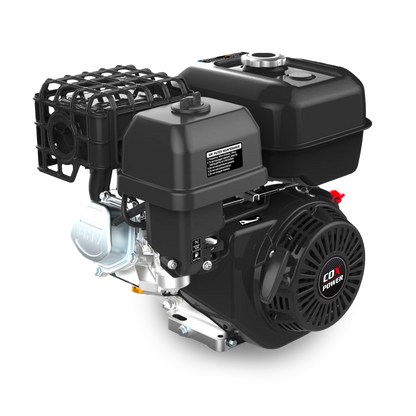

COX CPH340-1 Horizontal Shaft Engine – 9.5hp (Recoil Start)
Overview The CPH340-1 is a high-capacity 337cc petrol engine engineered for demanding industrial and commercial applications. With a recoil start system and a 1" keyway shaft, it delivers 9.5hp and 21 Nm of torque—ideal for powering water pumps, pressure washers, grain lifters, and other heavy-duty equipment. Built with an 82 × 64 mm bore/stroke and CE, EC(V) certifications, it balances raw power with compliance and reliability.
Key Features
- 9.5hp Rated Power at 3800 rpm
- 337cc Displacement
- 21 Nm Max Torque
- 1" Keyway Shaft (Horizontal PTO)
- Recoil Start System
- Fuel Tank Capacity: 7.5 L
- Engine Oil Capacity: 1.1 L (SAE 10W-30 recommended)
- Engine Dimensions: 480 × 425 × 505 mm
- Net Weight: 31.5 kg
- Certifications: CE, EC(V)
- Applications: water pumps, pressure washers, grain lifters, general machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH340-1 |
| Product Type | Horizontal Shaft Engine |
| Displacement | 337 cc |
| Rated Power | 9.5 hp |
| Rated Torque | 21 Nm |
| Cylinder Bore x Stroke | 82 × 64 mm |
| Max Output Speed | 3800 rpm |
| Idle Speed | 1650 ± 150 rpm |
| PTO Shaft Size | 1" Keyway Shaft |
| Starting System | Recoil |
| Engine Oil Capacity | 1.1 L |
| Recommended Oil | SAE 10W-30 |
| Fuel Tank Capacity | 7.5 L |
| Specific Fuel Consumption | ≤ 374 g/kW·h |
| Engine Dimensions (L×W×H) | 480 × 425 × 505 mm |
| Net Weight | 31.5 kg |
| Certifications | CE, EC(V) |
| SKU | CPH340-1 |
