Cox 224cc Horizontal Recoil CPH225-2
Cox 224cc Horizontal Recoil CPH225-2
Regular price
$347.33
Regular price
$0.00
Sale price
$347.33
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

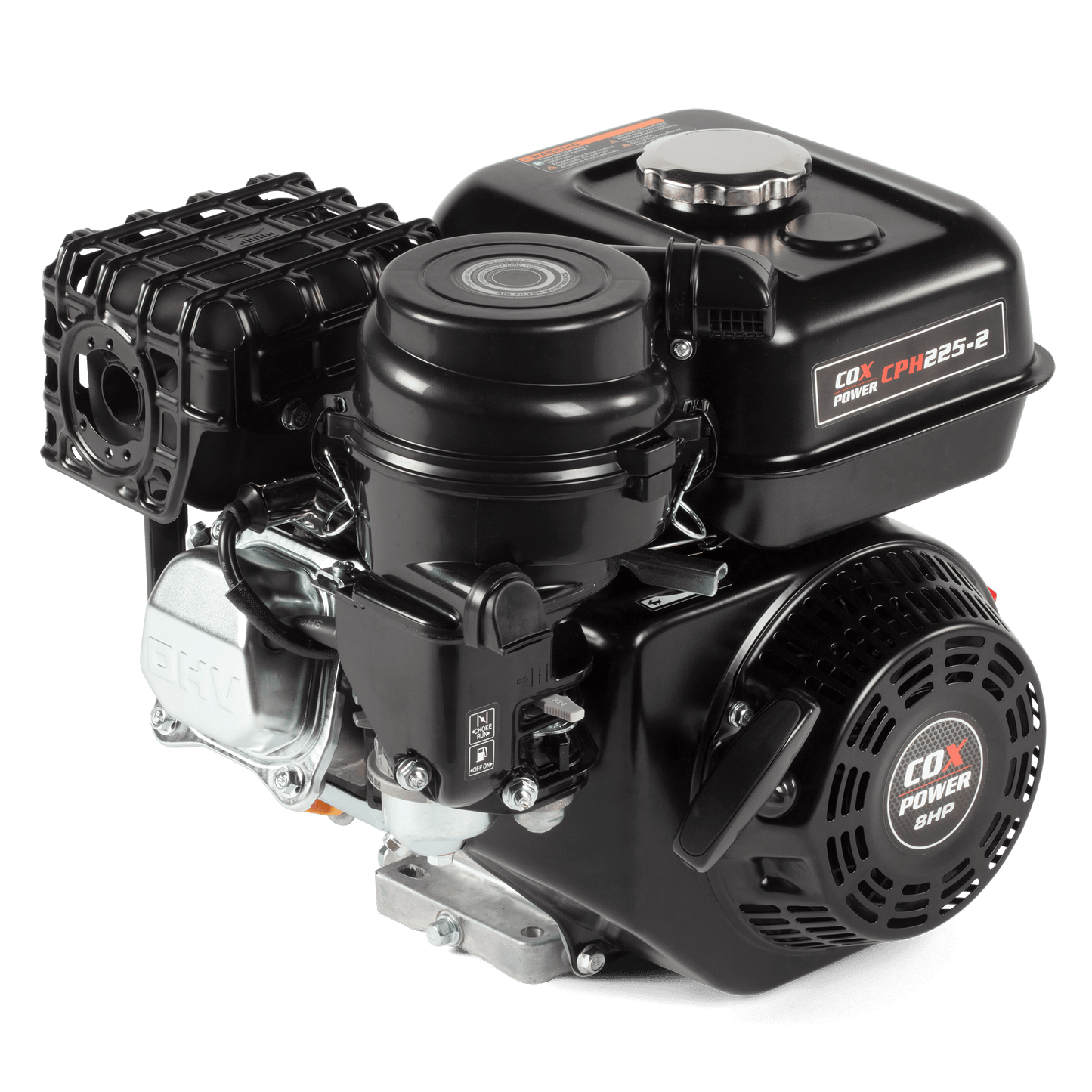

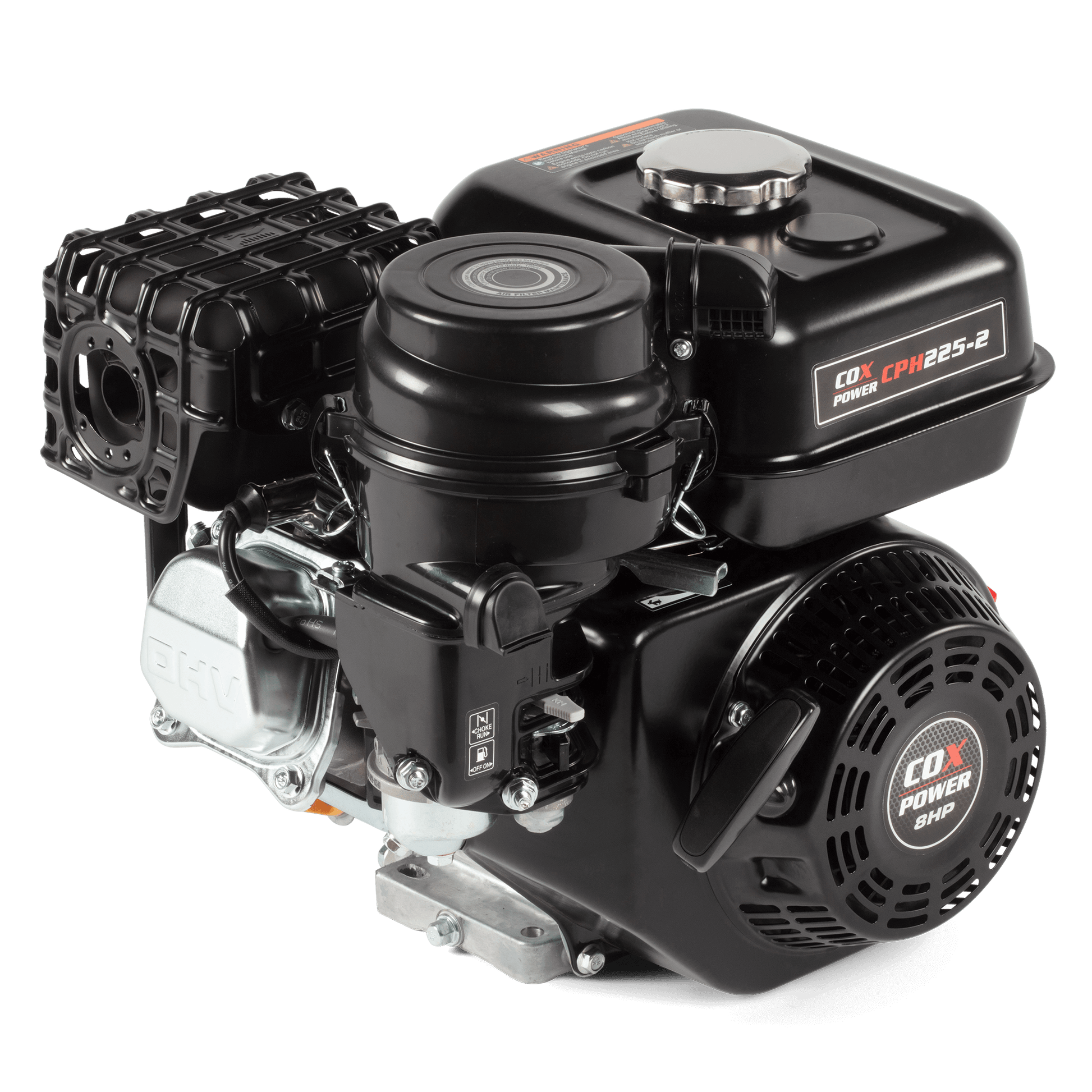

COX CPH225-2 Horizontal Shaft Engine – 6.0hp
Overview The CPH225-2 is a precision-engineered petrol engine built for general-purpose industrial, construction, and commercial applications. With a 224cc displacement and 6.0hp output, it features a cast iron cylinder liner and a 3/4" keyway shaft for reliable power delivery. Certified by CE, EC(V), EPA, and CARB, it’s designed to power everything from plate compactors to water pumps and concrete mixers.
Key Features
- 6.0hp Rated Power at 3800 rpm
- 12.5 Nm Max Torque
- 224cc Displacement
- Cast Iron Cylinder Liner
- 3/4" Keyway Shaft (Horizontal PTO)
- Recoil Start System
- Fuel Tank Capacity: 4.2 L
- Engine Oil Capacity: 0.6 L (SAE 10w-30 recommended)
- Engine Dimensions: 420 × 355 × 390 mm
- Net Weight: 15.5kg
- Certifications: CE, EC(V), EPA, CARB
- Applications: plate compactors, pumps, mixers, general machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH225-2 |
| Product Type | Horizontal Shaft Engine |
| Displacement | 224 cc |
| Rated Power | 6.0 hp |
| Rated Torque | 12.5 Nm |
| Cylinder Bore x Stroke | 72 × 55 mm |
| Max Output Speed | 3800 rpm |
| Idle Speed | 1650 ± 150 rpm |
| PTO Shaft Size | 3/4" Keyway Shaft |
| Starting System | Recoil |
| Engine Oil Capacity | 0.6 L |
| Recommended Oil | SAE 10w-30 |
| Fuel Tank Capacity | 4.2 L |
| Specific Fuel Consumption | ≤ 374 g/kW·h |
| Engine Dimensions (L×W×H) | 420 × 355 × 390 mm |
| Net Weight | 15.5 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU | CPH225-2 |
