Cox 3.5hp Horizontal 5/8” Shaft CPH150-4
Cox 3.5hp Horizontal 5/8” Shaft CPH150-4
Regular price
$297.07
Regular price
$0.00
Sale price
$297.07
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

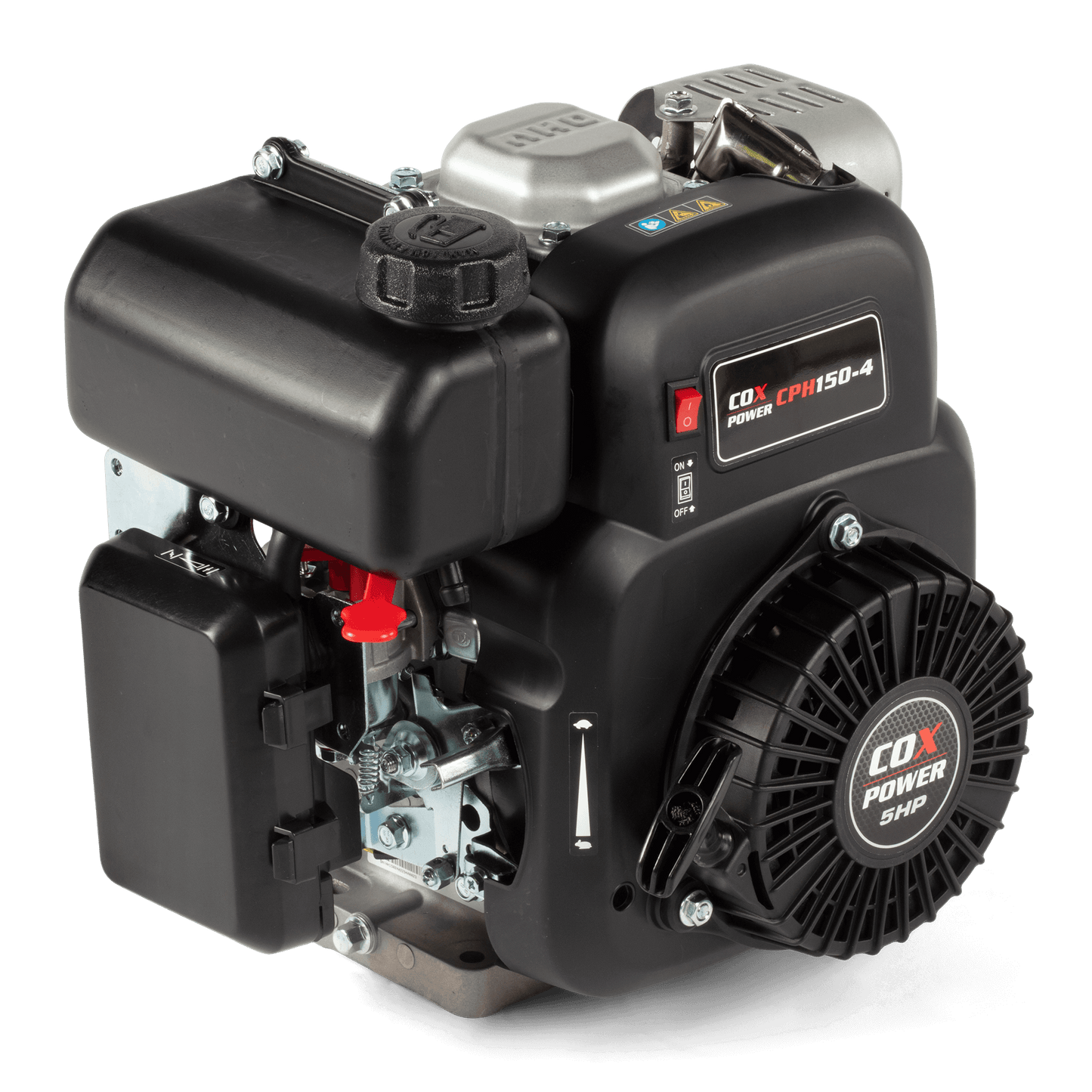

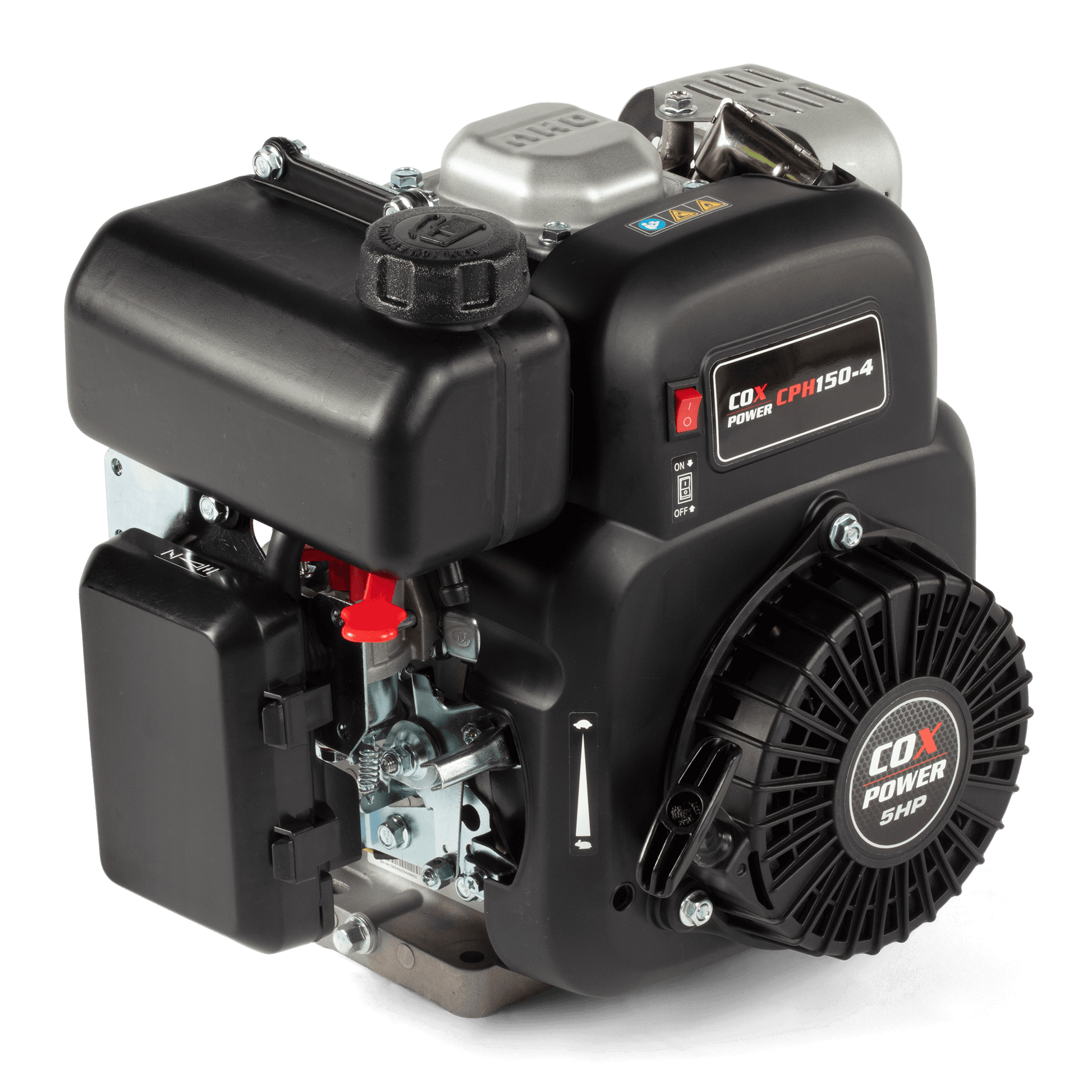

COX CPH150-4 Horizontal Shaft Engine – 3.5hp
Overview The CPH150-4 is a rugged and versatile petrol engine designed for general-purpose applications including pressure washers, generators, and agricultural equipment. With a 149cc displacement and 3.5hp output, it features a 5/8" keyway shaft for efficient power transmission. EPA, CE, EC(V), and CARB certified, it’s built for durability and compliance across a wide range of environments.
Key Features
- 3.5hp Rated Power at 3900 rpm
- 10 Nm Max Torque
- 149cc Displacement
- 5/8" Keyway Shaft (Horizontal PTO)
- Cast Iron Cylinder Liner
- Recoil Start System
- Fuel Tank Capacity: 3.9 L
- Engine Oil Capacity: 0.6 L (SAE 10w-30 recommended)
- Engine Dimensions: 420 × 355 × 390 mm
- Net Weight: 15kg
- Certifications: CE, EC(V), EPA, CARB
- Applications: pressure washers, generators, tillers
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH150-4 |
| Product Type | Horizontal Shaft Engine |
| Displacement | 149 cc |
| Rated Power | 3.5 hp |
| Rated Torque | 10 Nm |
| Cylinder Bore x Stroke | 68 × 45 mm |
| Max Output Speed | 3900 rpm |
| Idle Speed | 1800 ± 200 rpm |
| PTO Shaft Size | 5/8" Keyway Shaft |
| Starting System | Recoil |
| Engine Oil Capacity | 0.6 L |
| Recommended Oil | SAE 10w-30 |
| Fuel Tank Capacity | 3.9 L |
| Specific Fuel Consumption | ≤ 400 g/kW·h |
| Engine Dimensions (L×W×H) | 420 × 355 × 390 mm |
| Net Weight | 15 kg |
| Certifications | CE, EC(V), EPA, CARB |
| SKU |
