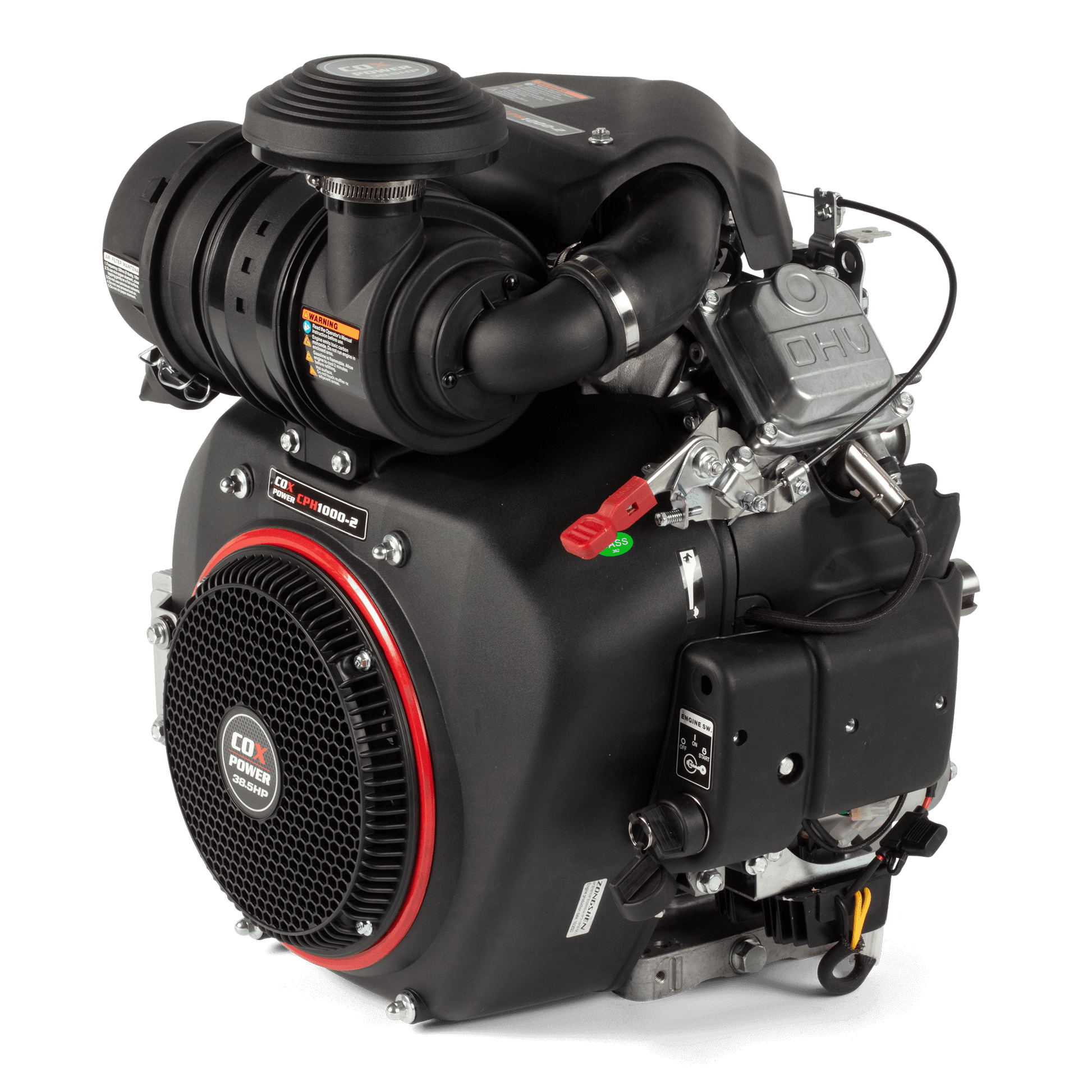

Cox 999cc Horizontal Fuel Injection / V-Twin / E-Start / Cyclonic Air Filter CPH1000-2EIHDF

Cox 999cc Horizontal Fuel Injection / V-Twin / E-Start / Cyclonic Air Filter CPH1000-2EIHDF

$4,208.61
$0.00 $4,208.61
Sale Sold out
Taxes included.

Not Stocked – Order In

Lead time: 2–14 business days

COX CPH1000-2EIHDF Horizontal Shaft Engine – 35hp (V-Twin, EFI, E-Start, Cyclonic Air Filter)

Overview The CPH1000-2EIHDF is a full-commercial grade 999cc V-Twin petrol engine equipped with Electronic Fuel Injection (EFI), electric start, and a heavy-duty cyclonic air filter. Designed for high-capacity industrial and commercial machinery, it delivers 35hp and 73 Nm of torque through a 1 1/8" keyway shaft. Its cast iron cylinder liner and Euro V certification ensure durability, efficiency, and compliance for demanding applications.


Key Features

  • 35hp Rated Power at 3900 rpm
  • 999cc V-Twin Displacement
  • 73 Nm Max Torque
  • Electronic Fuel Injection (EFI)
  • 1 1/8" Keyway Shaft (Horizontal PTO)
  • Electric Start System
  • Heavy-Duty Cyclonic Air Filter
  • Engine Oil Capacity: 2.5 L (SAE 10W-30 recommended)
  • Engine Dimensions: 620 × 585 × 570 mm
  • Net Weight: 54 kg
  • Certifications: Euro V
  • Applications: industrial, construction, commercial machinery

Specifications

Attribute Detail
Model CPH1000-2EIHDF
Product Type Horizontal Shaft Engine
Displacement 999 cc
Rated Power 35 hp
Rated Torque 73 Nm
Cylinder Bore x Stroke 90 × 78.5 mm
Max Output Speed 3900 rpm
Idle Speed 1750 ± 150 rpm
PTO Shaft Size 1 1/8" Keyway Shaft
Starting System Electric
Fuel System Electronic Fuel Injection (EFI)
Air Filter Type Cyclonic
Engine Oil Capacity 2.5 L
Recommended Oil SAE 10W-30
Specific Fuel Consumption ≤ 370 g/kW·h
Engine Dimensions (L×W×H) 620 × 585 × 570 mm
Net Weight 54 kg
Certifications Euro V
SKU CPH1000-2EIHDF
