Cox 999cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH1000-1HDF
Cox 999cc Horizontal V-Twin / E-Start / Cyclonic Air Filter CPH1000-1HDF
Regular price
$3,751.60
Regular price
$0.00
Sale price
$3,751.60
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability

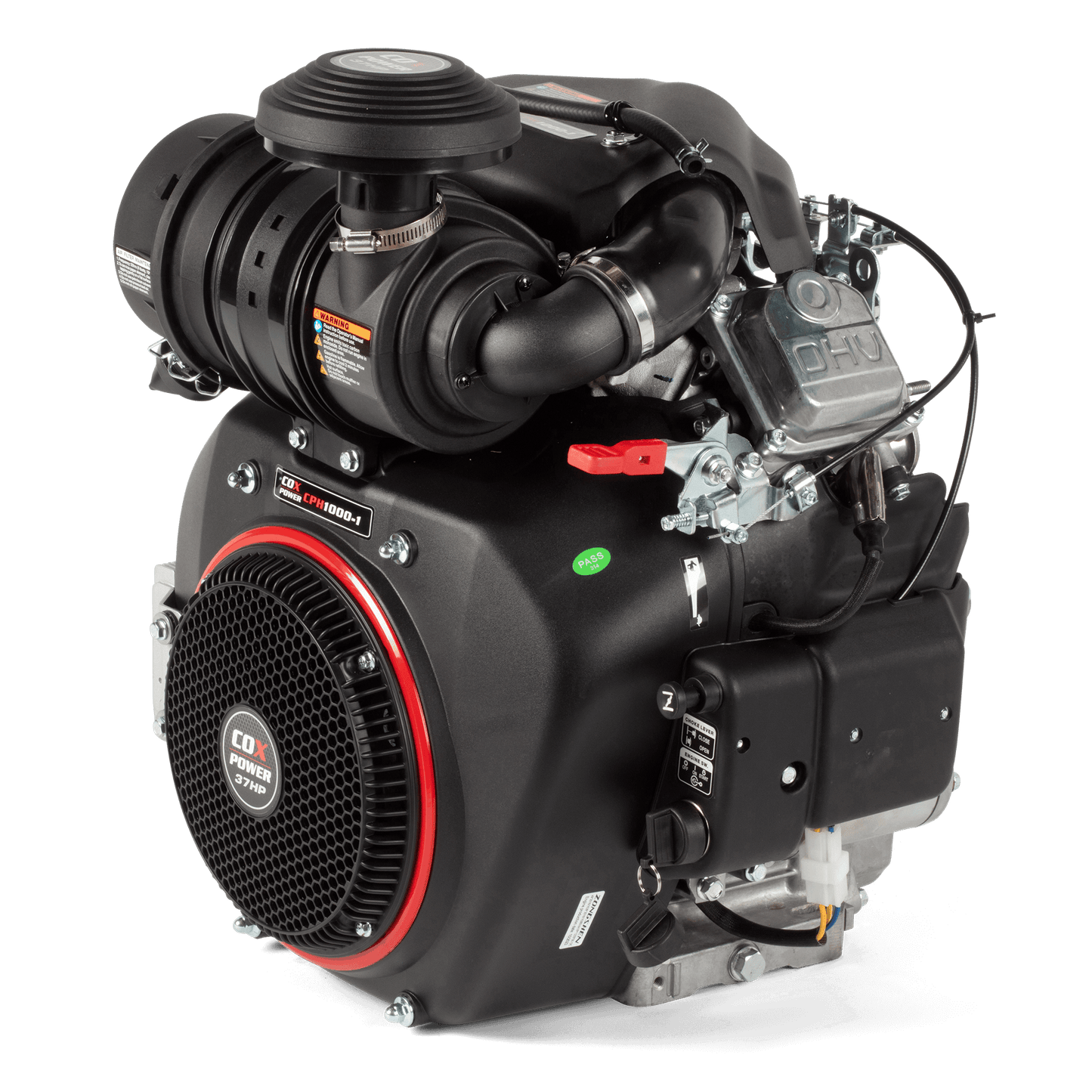

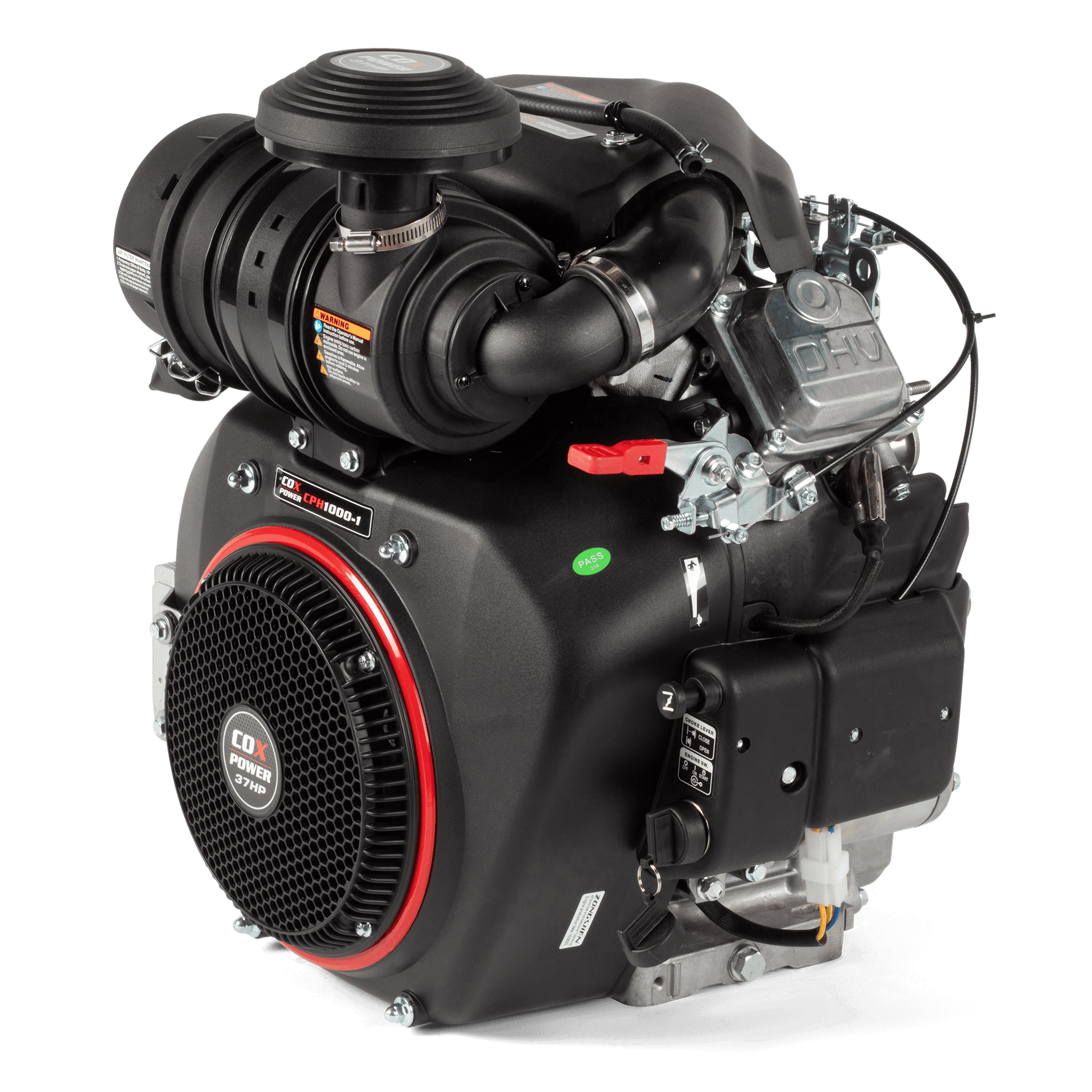

COX CPH1000-1HDF Horizontal Shaft Engine – 33hp (V-Twin, E-Start, Cyclonic Air Filter)
Overview The CPH1000-1HDF is a full-commercial grade 999cc V-Twin petrol engine engineered for high-capacity, heavy-duty applications. With electric start and a heavy-duty cyclonic air filter, it delivers 33hp and 71 Nm of torque through a 1 1/8" keyway shaft. Its cast iron cylinder liner and CE, EPA, EC(V) certifications ensure long-term durability and compliance across industrial, construction, and commercial machinery.
Key Features
- 33hp Rated Power at max output
- 999cc V-Twin Displacement
- 71 Nm Max Torque
- 1 1/8" Keyway Shaft (Horizontal PTO)
- Electric Start System
- Heavy-Duty Cyclonic Air Filter
- Engine Oil Capacity: 2.5 L (SAE 10W-30 recommended)
- Engine Dimensions: 605 × 585 × 560 mm
- Net Weight: 54 kg
- Certifications: CE, EPA, EC(V)
- Applications: industrial, construction, commercial machinery
Specifications
| Attribute | Detail |
|---|---|
| Model | CPH1000-1HDF |
| Product Type | Horizontal Shaft Engine |
| Displacement | 999 cc |
| Rated Power | 33 hp |
| Rated Torque | 71 Nm |
| Cylinder Bore x Stroke | 90 × 78.5 mm |
| Max Output Speed | Not specified |
| Idle Speed | 1650 ± 150 rpm |
| PTO Shaft Size | 1 1/8" Keyway Shaft |
| Starting System | Electric |
| Air Filter Type | Cyclonic |
| Engine Oil Capacity | 2.5 L |
| Recommended Oil | SAE 10W-30 |
| Specific Fuel Consumption | ≤ 370 g/kW·h |
| Engine Dimensions (L×W×H) | 605 × 585 × 560 mm |
| Net Weight | 54 kg |
| Certifications | CE, EPA, EC(V) |
| SKU | CPH1000-1HDF |
