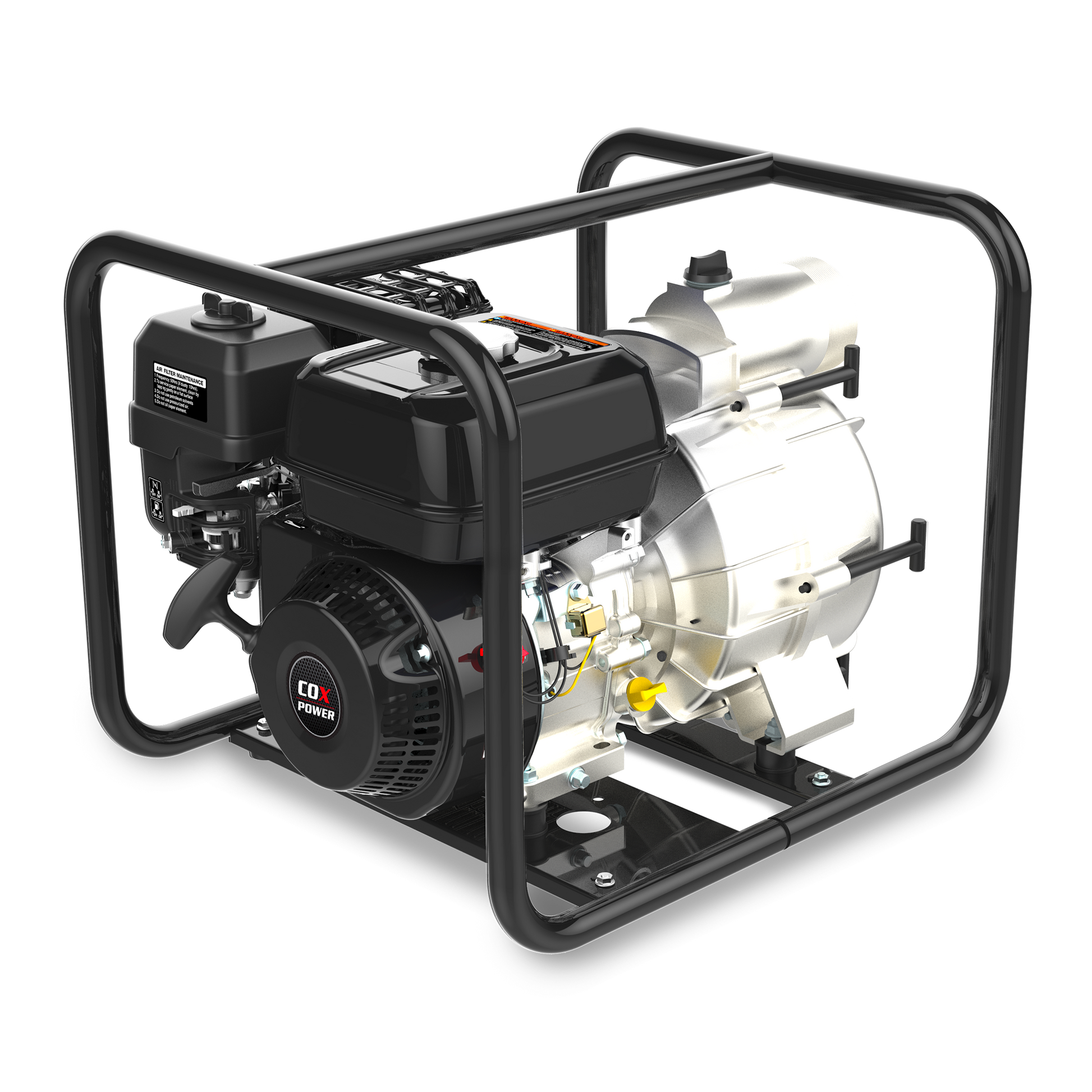

Cox Fire Pump 2" Single Impeller 7.5hp CP20S
Cox Fire Pump 2" Single Impeller 7.5hp CP20S
Regular price
$720.00
Regular price
$0.00
Sale price
$720.00
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability
COX CP20S 2" Fire Pump – Single Impeller – 7.5hp
Overview The CP20S is a high-pressure petrol fire pump designed for bushfire protection, long-distance water transfer, and high-head irrigation. Powered by the CPH225 engine, it delivers an exceptional 128,000 litres per hour with an 80m head lift and 7m suction head. Its centrifugal single-impeller design and multi-port outlet configuration make it ideal for firefighting setups and high-volume applications. Rugged, EPA-compliant, and built for serious performance.
Key Features
- CPH225 Petrol Engine with 7.5hp output
- Centrifugal Single-Impeller Pump for high-pressure delivery
- 128,000 L/hr Max Flow Rate
- 80m Max Head Lift
- 5m Rated / 7m Max Suction Head
- Multi-Port Outlet: 50mm primary + dual 40mm secondary ports
- Recoil Start System
- Fuel Tank Capacity: 4.2 L
- Engine Oil Capacity: 0.6 L (SAE 10w-30 recommended)
- Packing Dimensions: 55 × 44 × 48 cm
- Net Weight: 60kg
- EPA-Compliant Emissions
- Applications: bushfire protection, high-head irrigation, long-distance transfer
Specifications
| Attribute | Detail |
|---|---|
| Model | CP20S |
| Product Type | Petrol Fire Pump |
| Engine | CPH225 |
| Displacement | 225 cc |
| Rated Power | 7.5 hp |
| Rated Torque | 12.5 Nm |
| Pump Structure | Centrifugal / Single Impeller |
| Max Flow | 128,000 L/hr |
| Max Head Lift | 80 m |
| Max Suction Head | 5 m Rated / 7 m Max |
| Inlet/Outlet Ports | 50 mm primary / 40 mm x2 |
| Starting System | Recoil |
| Engine Oil Capacity | 0.6 L |
| Recommended Oil | SAE 10w-30 |
| Fuel Tank Capacity | 4.2 L |
| Packing Dimensions | 55 × 44 × 48 cm |
| Net Weight | 60 kg |
| Emissions/Seal | EPA |
| SKU | CP20S |
