COX Stockman PLUS 32"/40" Diff-Lock Ride-On Mower
COX Stockman PLUS 32"/40" Diff-Lock Ride-On Mower
Regular price
$6,499.00
Regular price
$0.00
Sale price
$6,499.00
Unit price
/
per
Taxes included.
Normally Stocked
Lead time: 1–5 business days
Couldn't load pickup availability
The COX Stockman Plus is built to tackle mid-size acreage with dependable power and rugged construction. Choose between the proven Briggs & Stratton 17.5HP engine or the COX 18HP single-cylinder option, paired with either a 32" pressed deck for rough terrain or a 40" fabricated deck for pristine lawns. With hydrostatic drive, optional Auto Diff Lock, and a premium high-back seat, the Stockman Plus delivers comfort, control, and cutting precision. Designed and assembled in Australia, it’s a durable, economical solution for serious mowing.

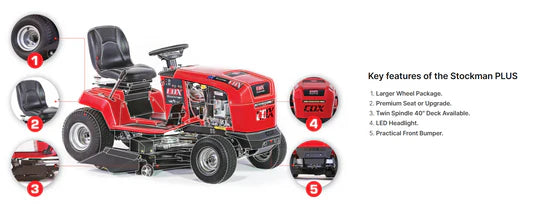

Key Features
- Choice of Briggs & Stratton 17.5HP or COX 18HP engine
- 32" (805mm) pressed deck or 40" (1016mm) fabricated deck
- Hydrostatic transaxle drive with optional Auto Diff Lock
- Ogura electromagnetic blade engagement
- Heavy-duty swing back blades
- Premium high-back seat with fingertip adjustment
- LED headlights and hour meter standard
- Fabricated steel chassis with zinc shield protection
- Designed and built in Australia
Specifications
| Category | Detail |
|---|---|
| Engine | B&S 17.5HP or COX 18HP, single-cylinder |
| Displacement | 500cc / 550cc |
| Engine Warranty | 2 Years B&S / 3 Years COX |
| Drive Type | Hydrostatic Transaxle |
| Drive Model | Tuff Torq™ K46 / Tuff Torq™ EH |
| Drive Warranty | 2 Years Conditional |
| Ground Speed | FWD 0–10KPH / REV 0–6KPH |
| Cutter Deck Width | 32" (805mm) or 40" (1016mm) |
| Blade Engagement | Ogura Electromagnetic Clutch |
| Belt Type | Premium B-Section |
| Height Range | 20–75mm (45–100mm with optional high cut kit) |
| Blade Type | Heavy Duty Swing Back |
| Tyres | 15x6.00-6 (Front) / 18x8.5-8 (Rear) |
| Seat | Premium High Back with Springs |
| Seat Adjustment | Fingertip Adjustment |
| Headlights | LED |
| Hour Meter | Standard |
| Steering | Premium Steering Wheel |
| Construction | Fabricated Steel |
| Dimensions (L×W) | 1805mm × 805mm / 1250mm |
| Weight | 189kg / 206kg |
| Warranty | 5 Years Conditional |
Available Configurations
| Model Variant | Engine Type | Deck Size | Auto Diff Lock | Weight |
|---|---|---|---|---|
| Stockman B&S 17.5HP 32" Auto Diff Lock | Briggs & Stratton | 32" | Yes | 189kg |
| Stockman COX 18HP 32" Auto Lock Diff | COX Single Cylinder | 32" | Yes | 189kg |
Note: 40" deck available on selected configurations. Contact dealer for availability.
