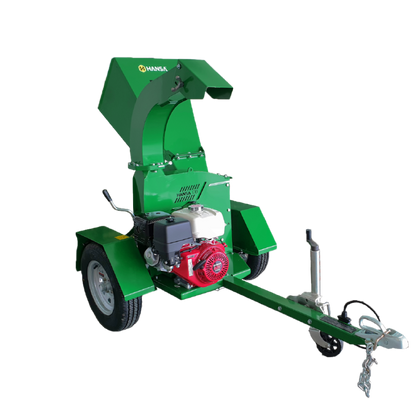

Hansa C13RTS Trailer and PTO Chipper
Hansa C13RTS Trailer and PTO Chipper
Regular price
$10,295.00
Regular price
Sale price
$10,295.00
Unit price
/
per
Taxes included.
Not Stocked – Order In
Lead time: 2–14 business days
Couldn't load pickup availability
The Hansa C13 is a high-capacity petrol wood chipper designed for lifestyle block owners, landscape gardeners, and hire businesses. Built in New Zealand, it features a 90mm chipping capacity and a gravity-fed chute that streamlines branch processing. Its cantilevered cutting disk and twin belt drive deliver powerful self-feeding performance, while optional upgrades like electric start, swivel outlet chute, and road-towable trailer mount make it one of the most versatile models in the Hansa range.
Features
- Chips branches up to 90mm diameter
- Produces 10–20mm wood chips suitable for mulch or compost

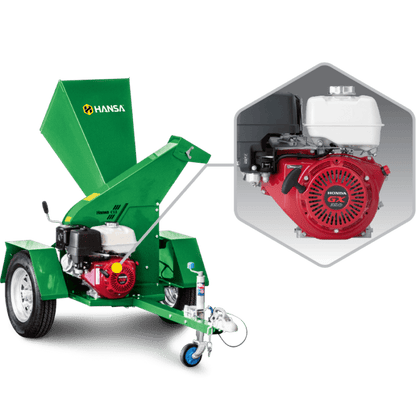

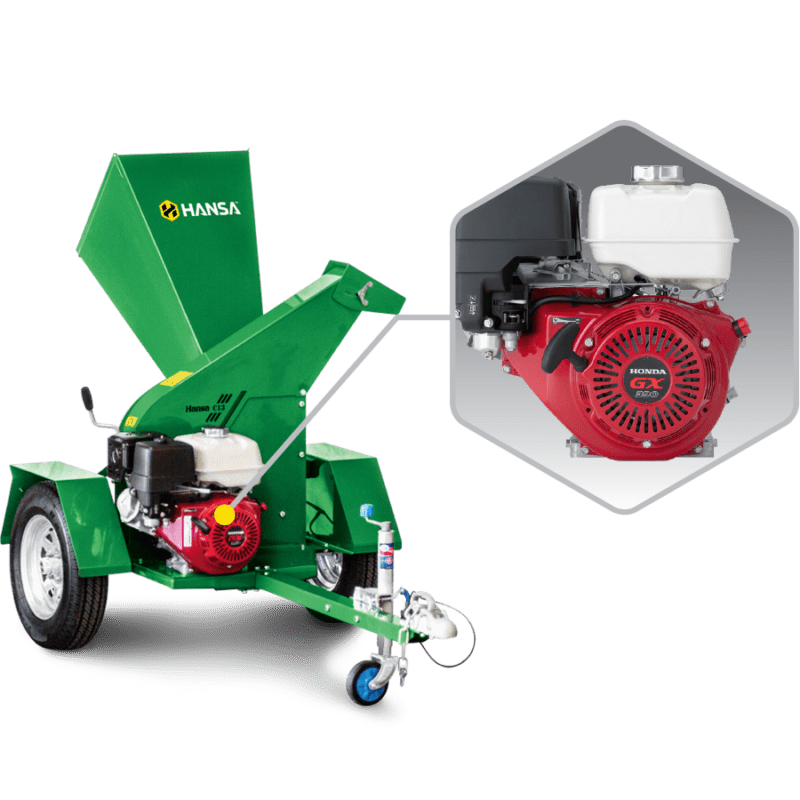

- Powered by Honda GX390 petrol engine
- Recoil start with optional electric start upgrade
- Twin belt drive for enhanced torque and durability

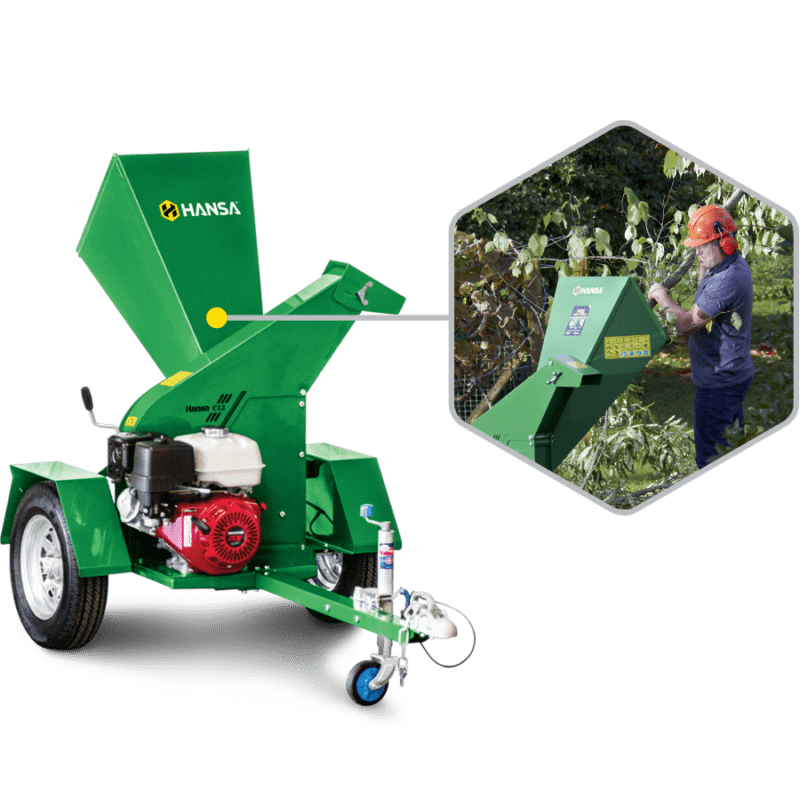

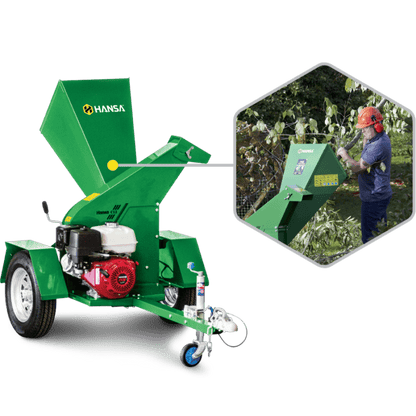

- Gravity-fed chute for efficient throughput
- Cantilevered cutting disk generates strong discharge airflow
- Dual A8 modified tool steel knives, sharpenable up to 10 times
- Optional drawbar and 270° swivel outlet chute
- Soft Start Technology protects engine from shock loading
- 400mm pneumatic wheels for easy transport
- Designed and manufactured in New Zealand
Specifications
| Specification | Value |
|---|---|
| Max Branch Capacity | 90mm |
| Wood Chip Size | 10–20mm |
| Engine Type | Honda GX390 |
| Max Power | 13HP / 9.5kW |
| Fuel Type | Petrol |
| Fuel Tank Size | 6L |
| Start Type | Recoil (Electric optional) |
| Inlet Chute Size | 170 x 220 mm |
| Knife Quantity | 2 |
| Knife Size | 200 x 58 x 10 mm |
| Knife Material | A8 Modified Tool Steel |
| Cutting Disk Dimensions | 560 x 12 mm |
| Cutting Disk Weight | 36kg |
| Cutting Disk Speed | 2000RPM |
| Belt Drive | Twin |
| Self-feeding | Yes |
| Wheels | 400mm pneumatic |
| Dimensions (L x W x H) | 1250 x 1145 x 1490 mm |
| Weight | 183–208kg (depends on options) |
| Outlet Chute Height | 1085 mm |
| Outlet Chute Type | 270° Swivel |
C13 Variant Comparison
| Variant Name | Mount Type | Power Source | Swivel Outlet Chute | Electric Start | Tow Capability |
|---|---|---|---|---|---|
| C13 Road Trailer Swivel Outlet | Trailer Mount | Honda GX390 Petrol | Yes | No | Road-towable trailer |
| C13 Road Trailer Swivel Outlet Electric Start | Trailer Mount | Honda GX390 Petrol | Yes | Yes | Road-towable trailer |

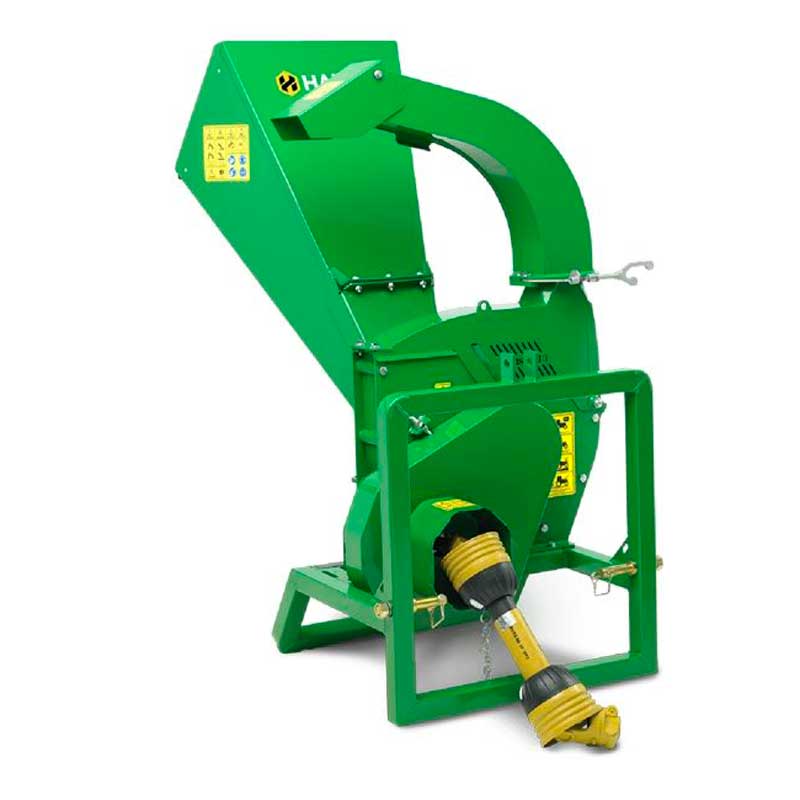

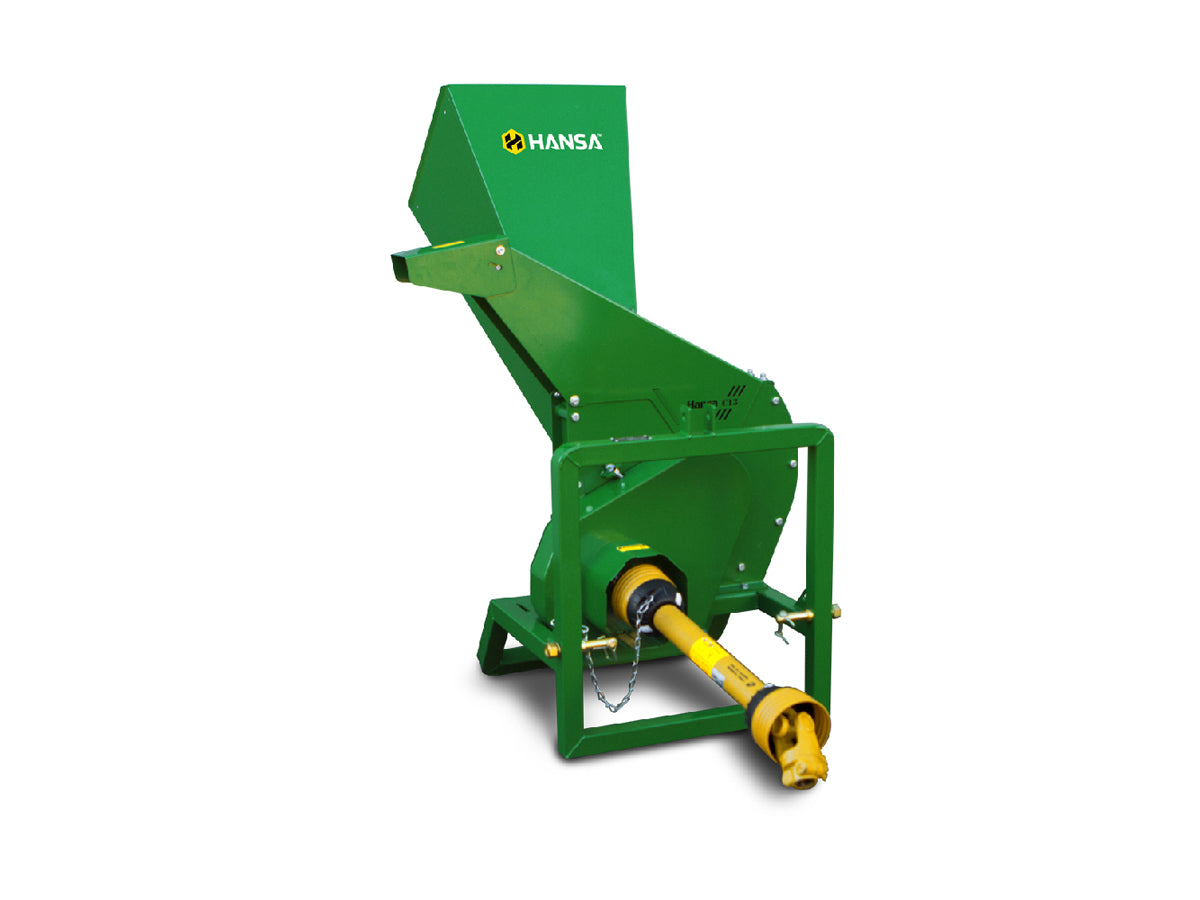

| C13 PTO Tractor Mount | Tractor Mount | PTO (17–45HP Tractor) | No | N/A | Tractor-drawn |
| C13 PTO Swivel Outlet | Tractor Mount | PTO (17–45HP Tractor) | Yes | N/A | Tractor-drawn |
